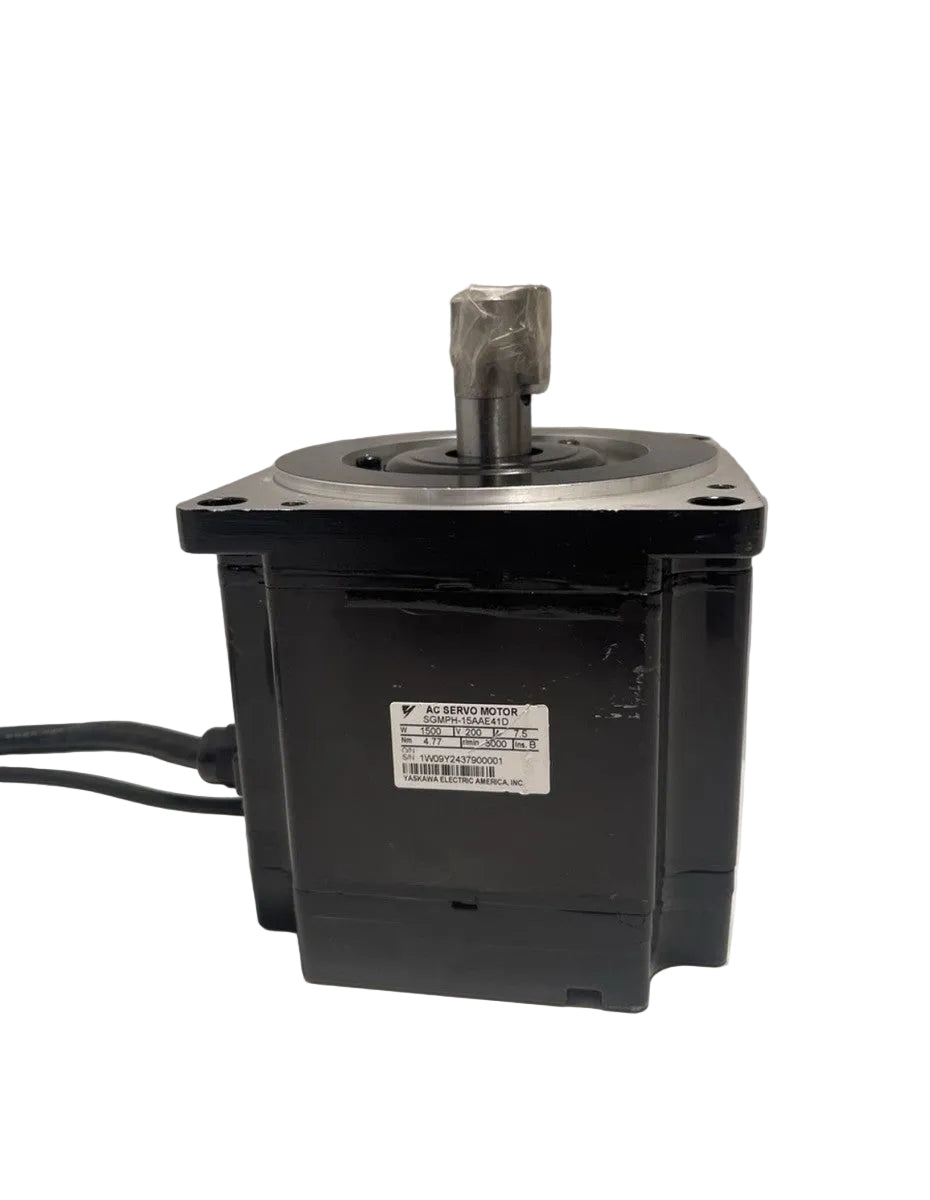

Yaskawa SGMPH-15AAE41D Sigma-II AC Servo Motor
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SGMPH-15AAE41D
Description
The Yaskawa SGMPH-15AAE41D is a 1.5 kW Sigma-II AC servo motor designed for controlled rotary motion in industrial machinery. It combines a rated speed of 3000 rpm with 13-bit incremental encoder feedback for positioning and speed control when paired with a compatible servo amplifier.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Servo Products |
| Part Number | SGMPH-15AAE41D |
| Subcategory | Servo Motor |
| Series | Sigma-II |
| Motor Family | SGMPH |
| Motor Type | AC Servo Motor |
| Body Configuration | Cube type |
| Rated Output Power | 1.5 kW |
| Voltage Class | 200 V class |
| Rated Speed | 3000 rpm |
| Continuous Rated Current | 7.5 A RMS |
| Rated Torque | 4.77 N·m |
| Encoder | 13-bit incremental |
| Protection Rating | IP67, excluding shaft opening |
| Shaft Configuration | Straight shaft with key |
| Connector Type | Hypertac |
| Weight | 15.00 lbs |
Information About SGMPH-15AAE41D
The SGMPH-15AAE41D is part of the SGMPH family of compact, cube-type Sigma-II servomotors. Its 200 V class winding configuration provides a continuous rated current of 7.5 A and a rated torque of 4.77 N·m. This variant features a straight keyed shaft, Hypertac connectors, and no integrated holding brake or optional oil/dust seal. The SGMPH enclosure meets IP67 requirements excluding the shaft opening, where protection depends on the sealing configuration.
Key Features:
- Rated Power: Delivers 1.5 kW of mechanical output for compatible industrial motion applications.
- Rated Speed: Operates at a nominal speed of 3000 rpm.
- Incremental Feedback: Uses a 13-bit incremental encoder to provide feedback to the servo control system.
- Rated Torque: Provides 4.77 N·m of continuous rated torque.
- Cube-Type Construction: Uses a compact motor body for installations with limited available space.
- Keyed Shaft: Features a straight shaft with a key for torque transmission through compatible couplings.
- Brake-Free Configuration: Supplied without an integrated holding brake.
- IP67 Enclosure: Provides IP67 protection for the motor enclosure, excluding the shaft opening.
The SGMPH-15AAE41D delivers the reliability and precision required for controlled positioning and speed regulation in industrial automation equipment.
