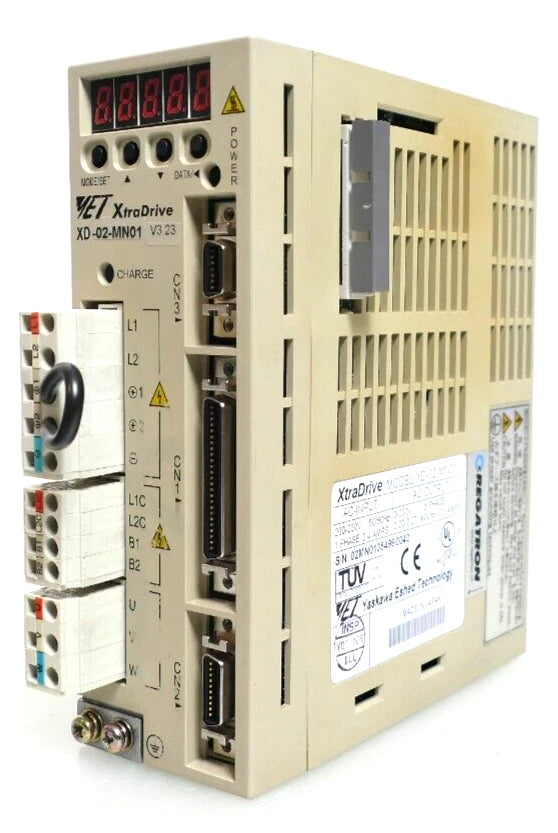

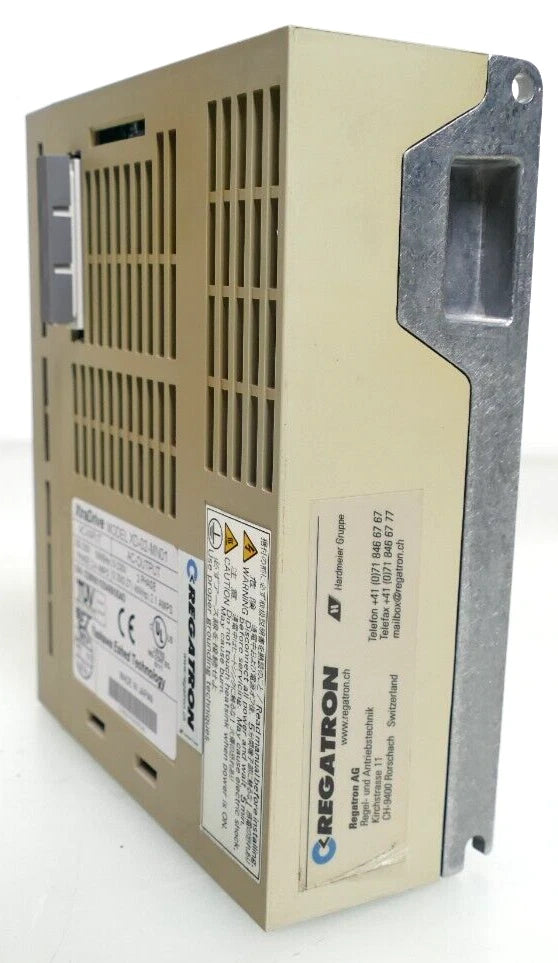

Yaskawa XD-02-MN01 XtraDrive Digital AC Servo Amplifier
- Regular price
- $1,555.00
- Sale price
- $1,555.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XD-02-MN01
Description
The Yaskawa XD-02-MN01 is a 200 W XtraDrive digital AC servo amplifier for controlling compatible industrial servomotors. It operates from a single-phase 200–230 V AC supply and provides 2.1 A RMS continuous output current for small motion control axes.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Servo Products |
| Part Number | XD-02-MN01 |
| Subcategory | Servo Drive/Servo Control |
| Series | XtraDrive |
| Product Type | Digital AC Servo Drive / Amplifier |
| Maximum Applicable Motor Power | 0.2 kW / 200 W |
| Main Circuit Input Voltage | 200–230 V AC |
| Control Circuit Input Voltage | 200–230 V AC |
| Input Phase | Single-phase |
| Input Frequency | 50/60 Hz |
| Continuous Output Current | 2.1 A RMS |
| Maximum Output Current | 6.5 A RMS |
| Power Stage Technology | IGBT with PWM current control |
| Compatible Motor Families | Selected 200 W SGMAH, SGMPH, R7M-A, and R7M-AP models |
| Mounting Configuration | Base mounted |
| Operating Temperature | 0 to +55°C |
| Operating Humidity | 90% RH maximum, non-condensing |
| Maximum Installation Altitude | 1000 m above sea level |
| Weight | 1.76 lbs |
Information About XD-02-MN01
The XD-02-MN01 is part of the XtraDrive family of intelligent servo drives with integrated motion control functions. Its power stage uses IGBT switching and PWM technology to regulate motor current. Manufacturer selection tables list compatible 200 W versions of SGMAH, SGMPH, and SmartStep R7M servomotors. Integration requires matching the motor model, encoder interface, cabling, and drive parameters to the machine configuration.
Key Features:
- Motor Capacity: Supports compatible servomotors with a maximum rated power of 200 W.
- Single-Phase Input: Accepts a 200–230 V AC supply for the main and control circuits.
- Continuous Output Current: Delivers 2.1 A RMS during continuous operation.
- Maximum Output Current: Provides a maximum output current rating of 6.5 A RMS.
- Digital Current Regulation: Uses IGBT switching and PWM control to regulate the motor’s electrical output.
- Encoder Feedback: Supports compatible feedback devices for closed-loop servo operation.
- Integrated Motion Control: Combines servo amplification with programmable motion functions.
- Base-Mounted Construction: Designed for mounting within an equipment control panel.
The XD-02-MN01 delivers the reliability and precision required for coordinated movement and positioning of compatible industrial servo axes.
