York 025-38178-000 24 VAC 266 in-lb Electric HVAC Actuator
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 025-38178-000
Description

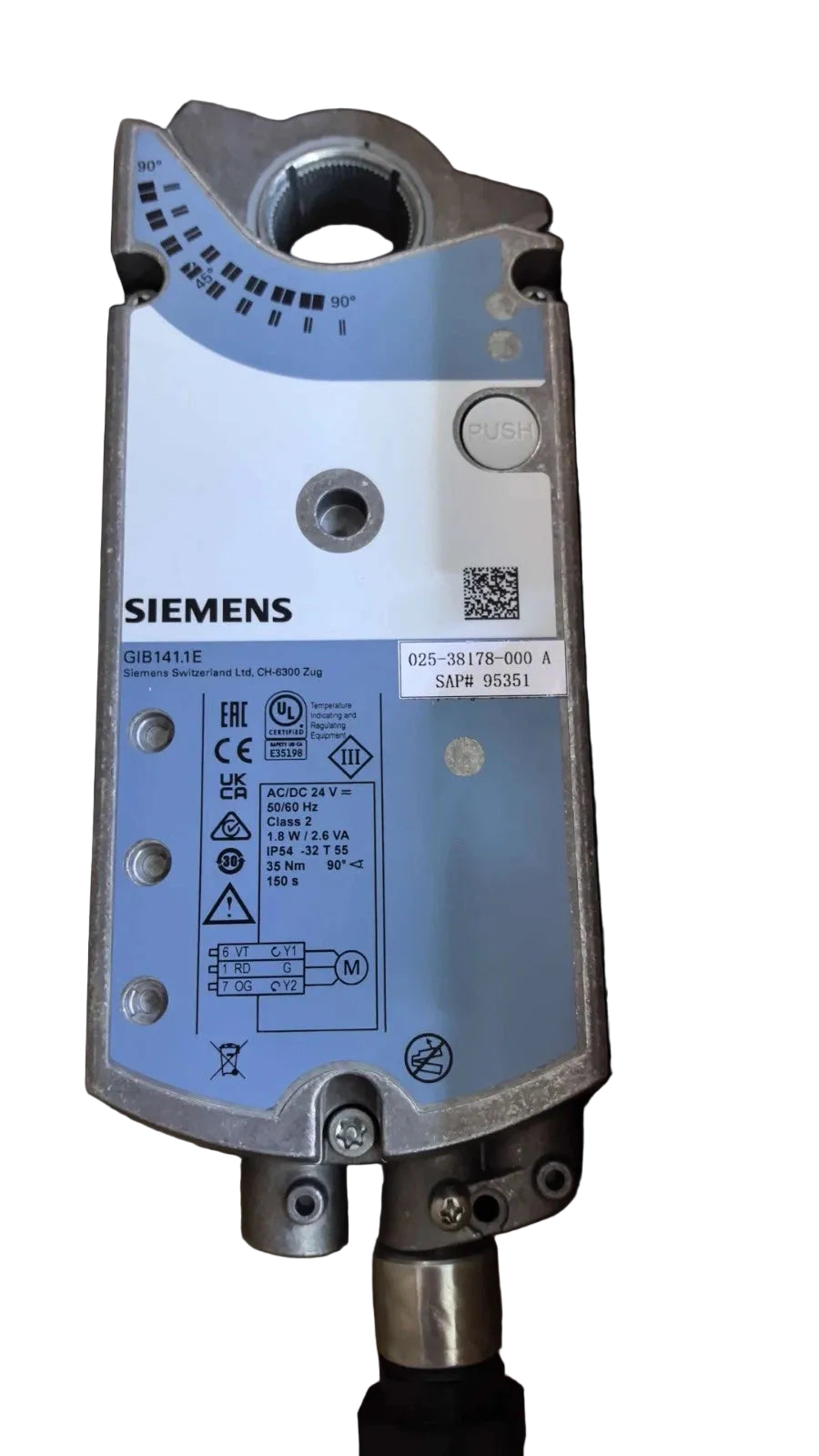

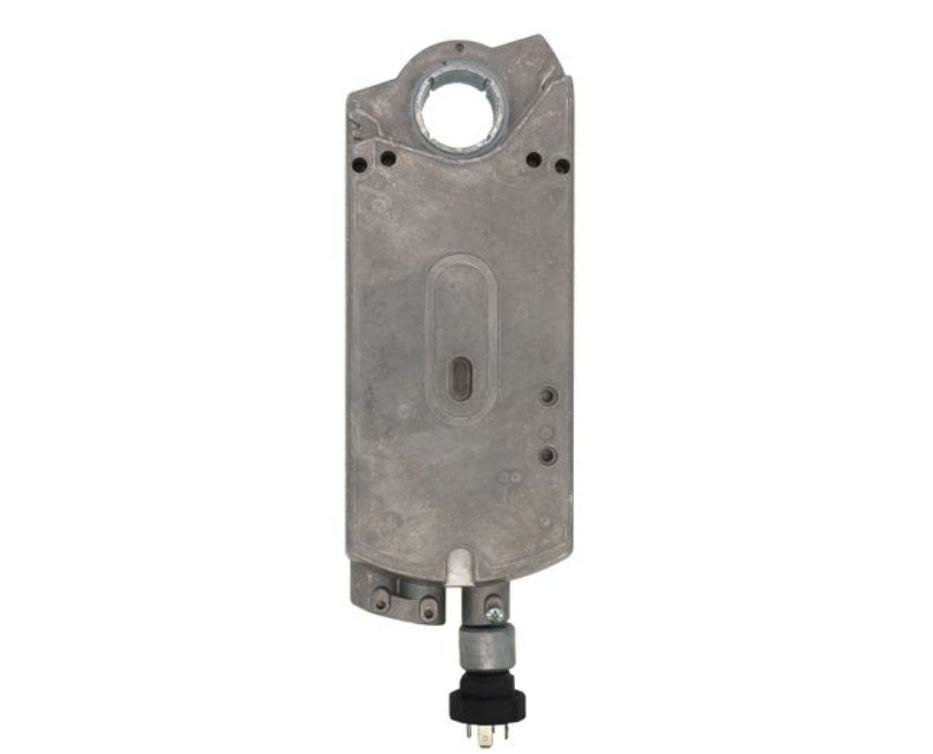

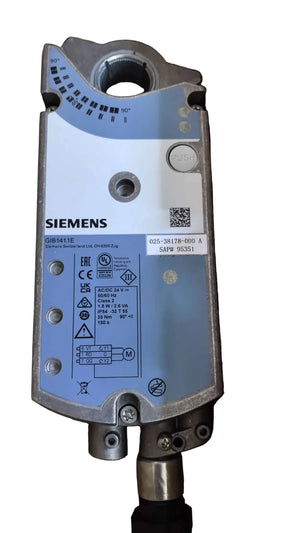

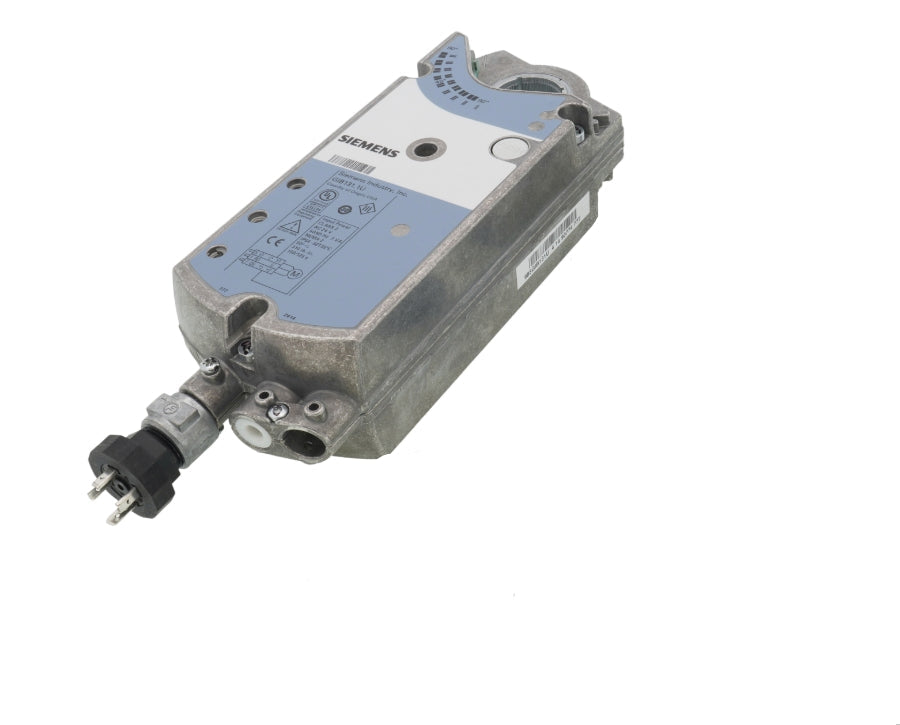

The York 025-38178-000 is a 24 VAC electric actuator used to position compatible HVAC dampers or valves. It provides 266 in-lb of torque with a 90-degree nominal rotation and a listed operating time of 120–135 seconds.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | York |
| Category | HVAC Controls |
| Part Number | 025-38178-000 |
| Subcategory | Electric Actuators |
| Actuator Type | Direct-coupled electric actuator |
| Supply Voltage | 24 VAC |
| Torque Rating | 266 in-lb |
| Nominal Rotation | 90° |
| Operating Time | 120–135 seconds |
| Electrical Classification | Class 2 |
| Enclosure Rating | NEMA 2 |
| Approximate Packaged Weight | 4.9 lb |
Information About 025-38178-000
The 025-38178-000 is a direct-coupled actuator for York HVAC equipment, including chiller applications. It converts a 24 VAC control input into controlled mechanical movement for connected dampers or valves. The actuator is rated for 266 in-lb torque and a 90-degree travel range, with rotation taking approximately 120–135 seconds. Its enclosure is listed as NEMA 2 and its electrical classification as Class 2.
Key Features:
-
Electric Rotary Actuator: OEM YORK actuator for compatible HVAC equipment and control applications.
-
24 VAC Power Supply: Operates on 24 VAC at 50/60 Hz.
-
High Torque Output: Delivers 266 in-lb (approximately 30 N·m) of torque.
-
90-Degree Rotation: Provides a nominal 90° rotation range for controlled mechanical positioning.
-
120–135 Second Operating Time: Supports gradual actuator movement for HVAC control.
-
7 VA Power Consumption: Designed for low-voltage control systems.
-
NEMA 2 Enclosure: Provides enclosure protection for suitable indoor installations.
-
IP54 Protection: Listed by suppliers as offering protection against dust ingress and water splashes.
-
Wide Operating Temperature Range: Specified by suppliers for operation from approximately −32°C to +55°C.
-
OEM Replacement Part: Manufactured for YORK equipment; verify mounting and control compatibility before installation.
The YORK 025-38178-000 delivers high-torque rotary actuation for compatible HVAC systems, supporting controlled positioning and reliable equipment operation.
