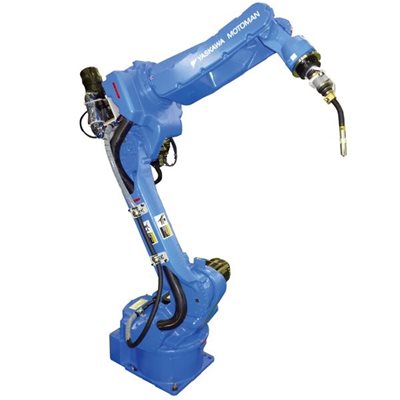

YR-MA01400-A00 | Yaskawa Electric 6-Axis Arc Welding Robot with Integrated Torch Cable, 3 kg Payload
- Regular price
- $3,097.00
- Sale price
- $3,097.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: YR-MA01400-A00
Description
The Yaskawa YR-MA01400-A00 is a high-performance 6-axis vertically articulated arc welding robot designed for compact and high-density work cells. This MOTOMAN-MA1400 robot offers fast, precise motion with an integrated torch cable system for optimal arc welding quality. It is built to deliver exceptional reach and repeatability for automated welding operations in industrial settings.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Industrial Robotics |
| Part Number | YR-MA01400-A00 |
| Subcategory | Arc Welding Robots |
| Model | MOTOMAN-MA1400 |
| Controlled Axes | 6 (Vertically Articulated) |
| Payload | 3 kg |
| Repeatability | ±0.08 mm |
| Max Reach | 1434 mm |
| Motion Range (S-Axis) | ±170° |
| Motion Range (L-Axis) | +155° to -90° |
| Motion Range (U-Axis) | +190° to -175° |
| Max Wrist Speed (T-Axis) | 610°/s (10.65 rad/s) |
| Allowable Moment (R/B/T) | 8.8 / 8.8 / 2.9 Nm |
| Allowable Inertia (R/B/T) | 0.27 / 0.27 / 0.03 kg·m² |
| Operating Temperature | 0°C to +45°C |
| Operating Humidity | 20–80% RH (non-condensing) |
| Power Requirements | 1.5 kVA |
| Mounting | Floor or overhead (standard configuration) |
| Controller Compatibility | DX100 |
| Weight | 130 kg |
Information About YR-MA01400-A00
The YR-MA01400-A00 is part of Yaskawa's MOTOMAN-MA1400 series, developed specifically for arc welding applications requiring compact layout and high speed. The robot features a built-in torch cable along the arm to prevent interference with workpieces or nearby equipment. Compatible with the DX100 controller, it supports up to six controlled axes and enables precise motion even in tight spaces. Its streamlined form, high repeatability, and long reach make it ideal for robotic welding cells in automotive and metal fabrication industries.
Key Features:
- 6-Axis Articulated Design: Provides full motion freedom for complex welding paths and tight-space applications.
- Integrated Torch Cable: Built-in torch cabling reduces interference, improving weld quality and robot durability.
- High Speed Motion: World-leading speeds with wrist axis rates up to 610°/s enhance productivity.
- Extended Reach: Maximum reach of 1434 mm allows flexible welding range coverage.
- High Repeatability: Precision of ±0.08 mm ensures consistent, high-quality welds.
- Compact and Lightweight: At only 130 kg, it allows dense cell layouts and easy integration.
- Wide Operating Range: Supports axis rotations up to ±200°, expanding movement flexibility.
- Environment-Ready Build: Operates reliably from 0°C to +45°C and up to 80% humidity (non-condensing).
The YR-MA01400-A00 delivers the reliability and precision required for high-speed, space-efficient automated arc welding.
