YTH9421C1002 | Honeywell VisionPRO IAQ Touchscreen Thermostat & Module
- Regular price
- $209.00
- Sale price
- $209.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: YTH9421C1002
Description
The YTH9421C1002 is a touch screen temperature and ventilation control system designed for multi-stage HVAC systems with advanced humidity and air quality management. It includes a universal programmable thermostat and controller capable of managing heating, cooling, humidification, dehumidification, and ventilation.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Controls & Indicators
|
| Part Number | YTH9421C1002 |
| Subcategory | Thermostat |
| Product Type | Thermostat & Control System |
| Series | VisionPRO |
| Control Stages | 3 Heat / 2 Cool (Conventional), 4 Heat / 2 Cool (HP) |
| Programmability | 7-Day |
| Interface | Touchscreen |
| Mounting Style | Horizontal |
| Voltage | Low Voltage (24 VAC) |
| Power Consumption | 12 to 30 W |
| Amperage | 0.6 – 1 A |
| Changeover Type | Auto / Manual |
| Fan Control | Yes |
| Temperature Range (°F) | 40°F to 99°F |
| Max Temp Differential | 1°F |
| Operating Humidity | 5% to 90% RH (non-condensing) |
| Dimensions (H x W x D) | 4-9/16" x 6" x 1-1/4" |
| Wiring Terminals | C, R, Rc, Rh, Y, Y2, G, L, 1, 2, 3, Vnt1, Vnt2, Dhm2 |
| Sensor Support | Indoor sensor compatible |
| Color | Premier White |
| Product Status | Discontinued (as of Sep 25, 2014) |
| Weight | 0.14 lbs |
Information About YTH9421C1002

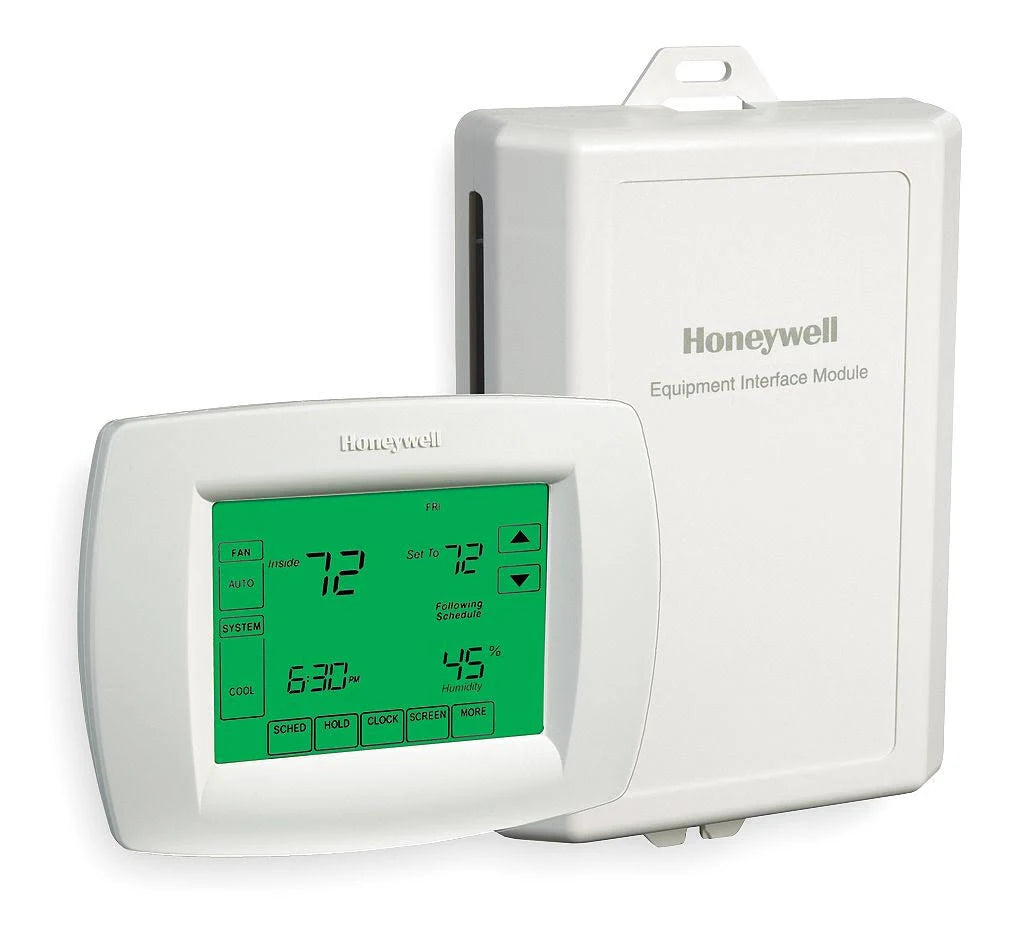

The YTH9421C1002 is a discontinued Honeywell temperature control system, part of the VisionPRO series, phased out in September 2014. This 7-day programmable unit offers 3 Heat / 2 Cool stages for conventional systems and up to 4 Heat / 2 Cool for heat pumps. It connects with an Equipment Interface Module or EnviraZONE panel to centralize control over environmental comfort—including humidity levels and air exchange. The intuitive touchscreen interface and advanced dual-fuel compatibility made this model ideal for residential applications focused on energy efficiency and air quality.
Key Features:
- Multi-Stage Control: Supports 3 Heat / 2 Cool (conventional) and 4 Heat / 2 Cool (heat pump) configurations.
- Integrated Humidity Management: Controls humidification and dehumidification for year-round comfort.
- Ventilation Control: Provides fresh air exchange and improved air quality across the home.
- Touchscreen Interface: Large, user-friendly screen simplifies daily operation and scheduling.
- 7-Day Programmable: Allows individual schedules for each day to maximize energy savings.
- Advanced Dual-Fuel Logic: Optimizes performance in systems with both heat pumps and furnaces.
- Sensor Compatibility: Works with indoor sensors to maintain even temperature distribution.
- Auto Changeover: Seamlessly switches between heating and cooling modes.
- Low Voltage Operation: Operates on standard 24 VAC systems with low power consumption.
- Legacy Honeywell Reliability: Part of the trusted VisionPRO lineup for residential controls.
The YTH9421C1002 delivers integrated temperature, humidity, and ventilation management with a sleek touchscreen interface, ideal for whole-home comfort control.
