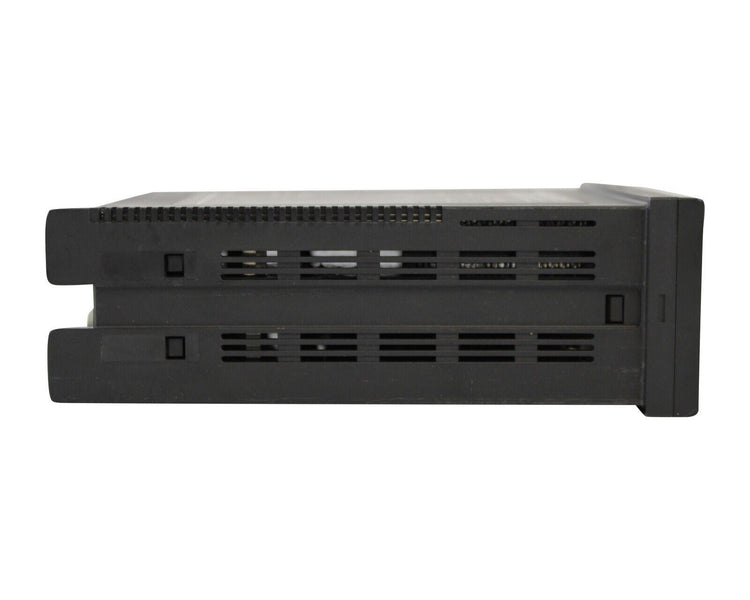

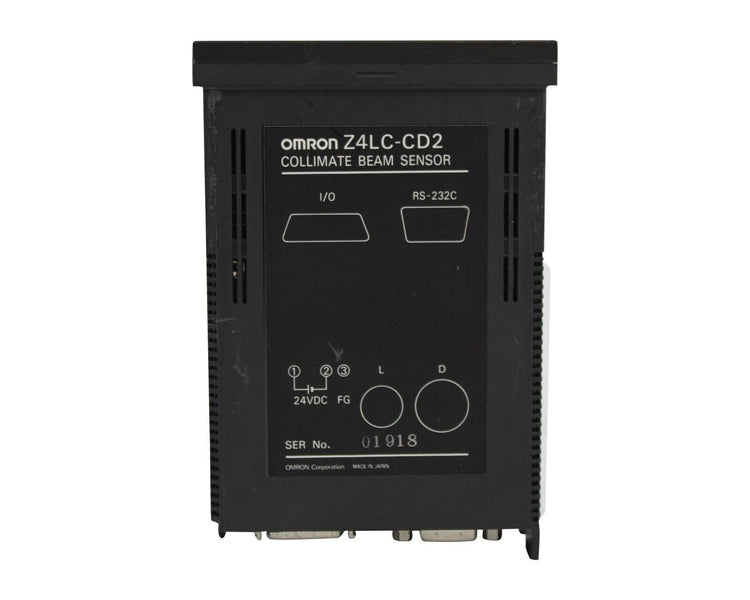

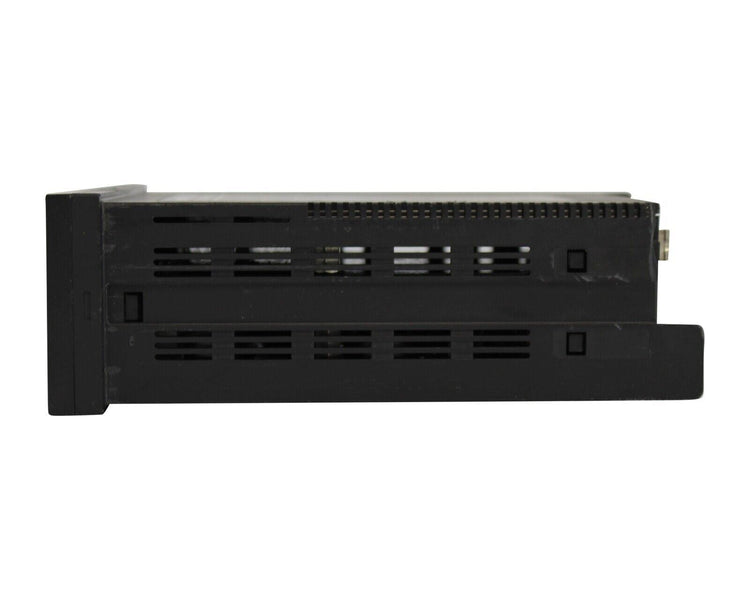

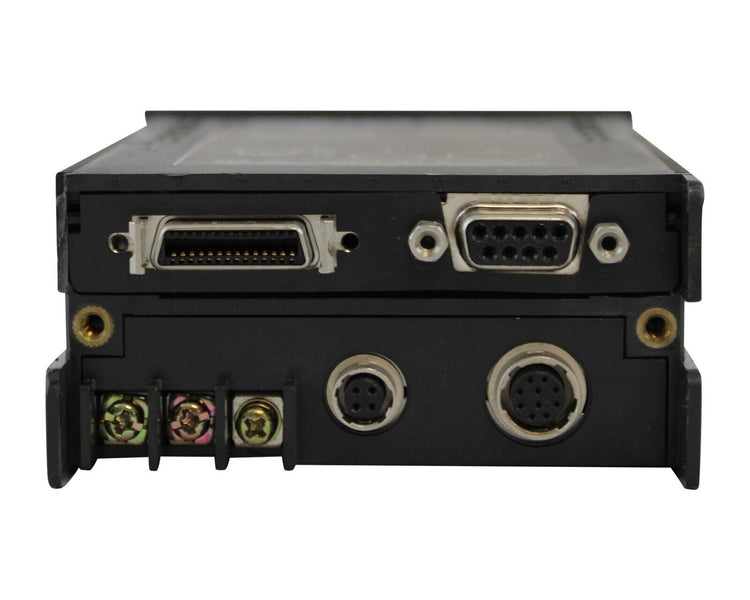

Z4LC-CD2 | Omron Collimated Beam Sensor, Infrared, High-Precision Detection, 12–24 VDC
- Regular price
- $869.00
- Sale price
- $869.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: Z4LC-CD2
Description
The Omron Z4LC-CD2 is a compact collimated beam sensor designed for high-precision object detection and positioning in automation and inspection systems. Using a sharply focused infrared beam, it provides accurate detection over short ranges, ideal for applications requiring precise alignment or edge sensing.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors |
| Part Number | Z4LC-CD2 |
| Subcategory | Collimated Beam Sensor |
| Series | Z4LC Series |
| Sensing Method | Collimated through-beam or reflective type (model dependent) |
| Light Source | Infrared LED |
| Sensing Distance | Short-range precision detection (typ. within 100–300 mm) |
| Supply Voltage | 12–24 VDC |
| Output Type | NPN or PNP transistor (model dependent) |
| Response Time | <1 ms |
| Adjustment | Manual optical alignment |
| Housing Material | Metal or reinforced resin (industrial-grade) |
| Mounting Style | Panel or bracket mount |
| Connection Type | Pre-leaded cable or connector (varies by model) |
| Protection Rating | IP67 |
| Operating Temperature | –25°C to +55°C |
| Ambient Light Immunity | Resistant to fluorescent and sunlight interference |
| Application | Precision part detection, edge sensing, and positioning |
| Compliance | CE, RoHS |
| Weight | Approx. 100 g |
Information About Z4LC-CD2
The Z4LC-CD2 is part of Omron’s Z4LC series of collimated beam sensors, developed for pinpoint detection accuracy in industrial environments. It uses a collimated optical system to maintain a parallel light path, minimizing beam spread and ensuring consistent detection even at small target distances. The sensor integrates easily into control systems via standard output connections and is built to operate reliably in environments with dust or vibration. With Omron’s proven photoelectric sensing technology, the Z4LC-CD2 offers high sensitivity, stable detection performance, and durable construction suited for manufacturing, assembly, and quality inspection lines.
Key Features:
- Collimated Beam Design: Produces a focused, parallel light beam for precise object detection and positioning.
- High Detection Accuracy: Ideal for fine edge, small part, and displacement sensing applications.
- Infrared Light Source: Ensures reliable operation with reduced interference from ambient light.
- Compact Form Factor: Space-saving design for easy integration into machines and fixtures.
- Wide Voltage Range: Compatible with standard 12–24 VDC control systems.
- Durable Construction: Engineered for industrial reliability under vibration and temperature variation.
- Easy Alignment: Collimated optics simplify optical axis adjustment during installation.
- Flexible Output Configuration: Provides stable signal output compatible with Omron control devices and PLCs.
The Z4LC-CD2 delivers the reliability and precision required for close-range, high-accuracy sensing in automation and inspection systems.
