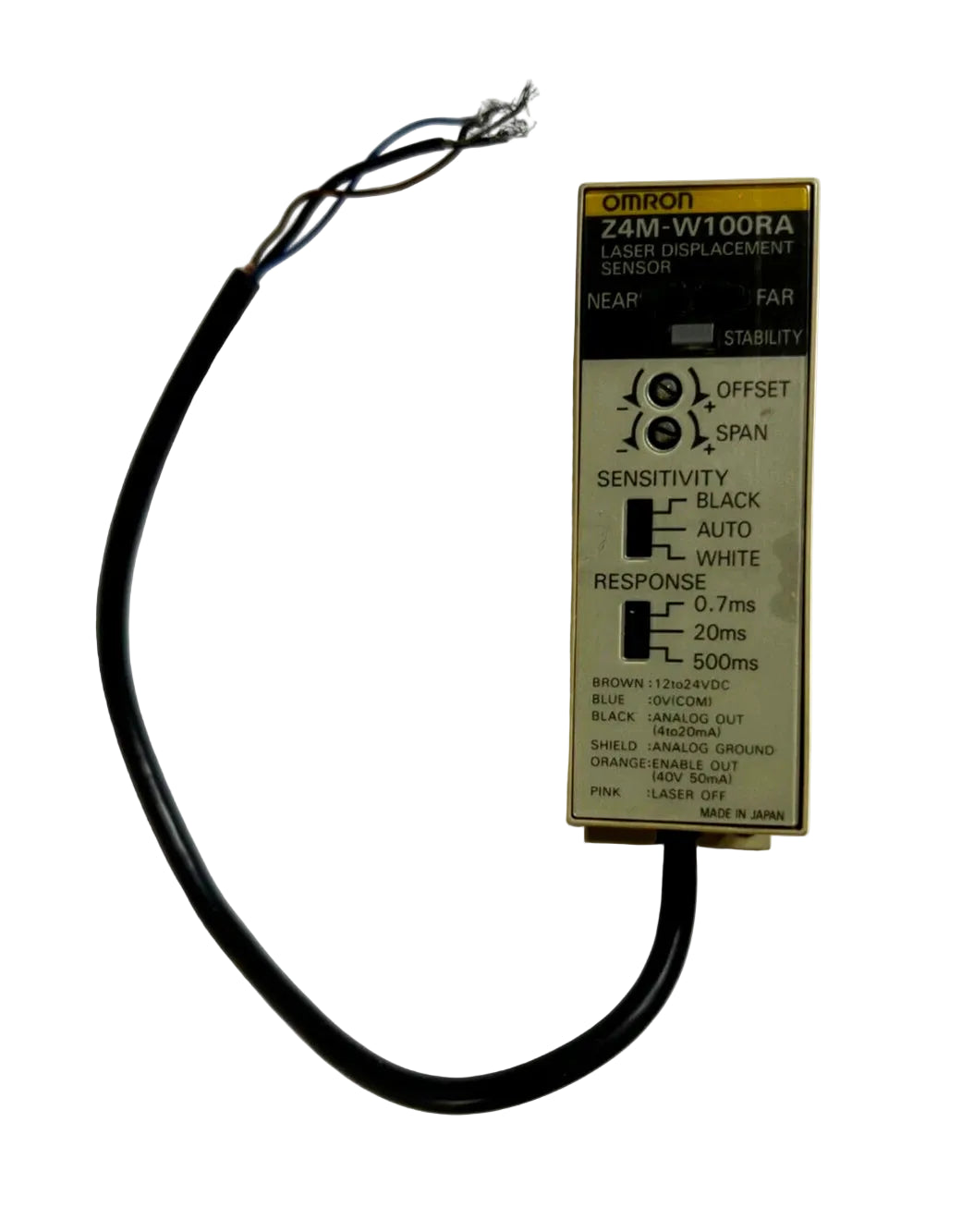

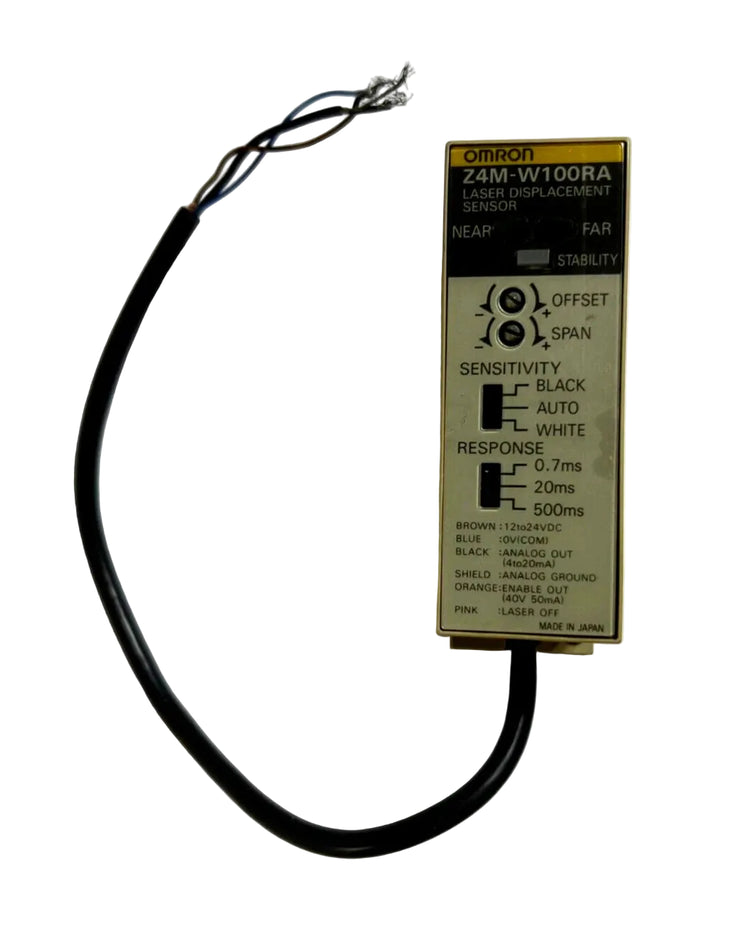

Z4M-W100RA | Omron Z4M Laser Displacement Sensor 40mm Range
- Regular price
- $1,197.00
- Sale price
- $1,197.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: Z4M-W100RA
Description
The Omron Z4M-W100RA is a Z4M Series laser displacement sensor designed for precision distance measurement applications. It operates on 12–24 VDC and provides a high-resolution measurement capability of up to 1.5 microns. The sensor delivers an analog output signal for integration into industrial control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors & Switches |
| Part Number | Z4M-W100RA |
| Subcategory | Laser Gauging System |
| Series | Z4M Series |
| Sensor Type | Laser Displacement Sensor |
| Laser Class | FDA Class IIIb / IEC Class 3 |
| Measurement Range | 40 mm |
| Maximum Sensing Distance | Up to 140 mm |
| Resolution | 1.5 Micron |
| Supply Voltage | 12–24 VDC |
| Current Consumption | 150 mA |
| Analog Output | -4 to +4 VDC |
| Response Time | 3 Selectable Settings |
| Country of Manufacture | Japan |
| Weight | 0.31 lbs |
Information About Z4M-W100RA
The Z4M-W100RA belongs to the Omron Z4M Series of infrared laser displacement sensors engineered for high-speed and high-precision measurement tasks. It utilizes an FDA Class IIIb / IEC Class 3 infrared laser source and supports a measurement range of up to 40 mm within a maximum sensing distance of 140 mm. The sensor provides a -4 to +4 VDC analog output and includes automatic sensitivity adjustment for simplified setup. Designed for integration with laser safety accessories, it supports multiple selectable response times for adaptable measurement performance.
Key Features:
-
Z4M Series Platform: Industrial laser displacement measurement system.
-
1.5 Micron Resolution: High-precision distance measurement capability.
-
40 mm Measurement Range: Designed for short-range precision sensing.
-
Up to 140 mm Sensing Distance: Extended positioning flexibility.
-
12–24 VDC Operation: Compatible with standard industrial power supplies.
-
-4 to +4 VDC Analog Output: Direct integration with control systems.
-
Automatic Sensitivity Setting: Simplifies calibration and setup.
-
Three Selectable Response Times: Adjustable measurement speed.
-
Stability and Range Indicators: Visual confirmation of sensor status.
-
FDA Class IIIb / IEC Class 3 Laser: Infrared laser classification for industrial use.
The Z4M-W100RA delivers the reliability and precision required for industrial laser gauging and displacement measurement applications.
