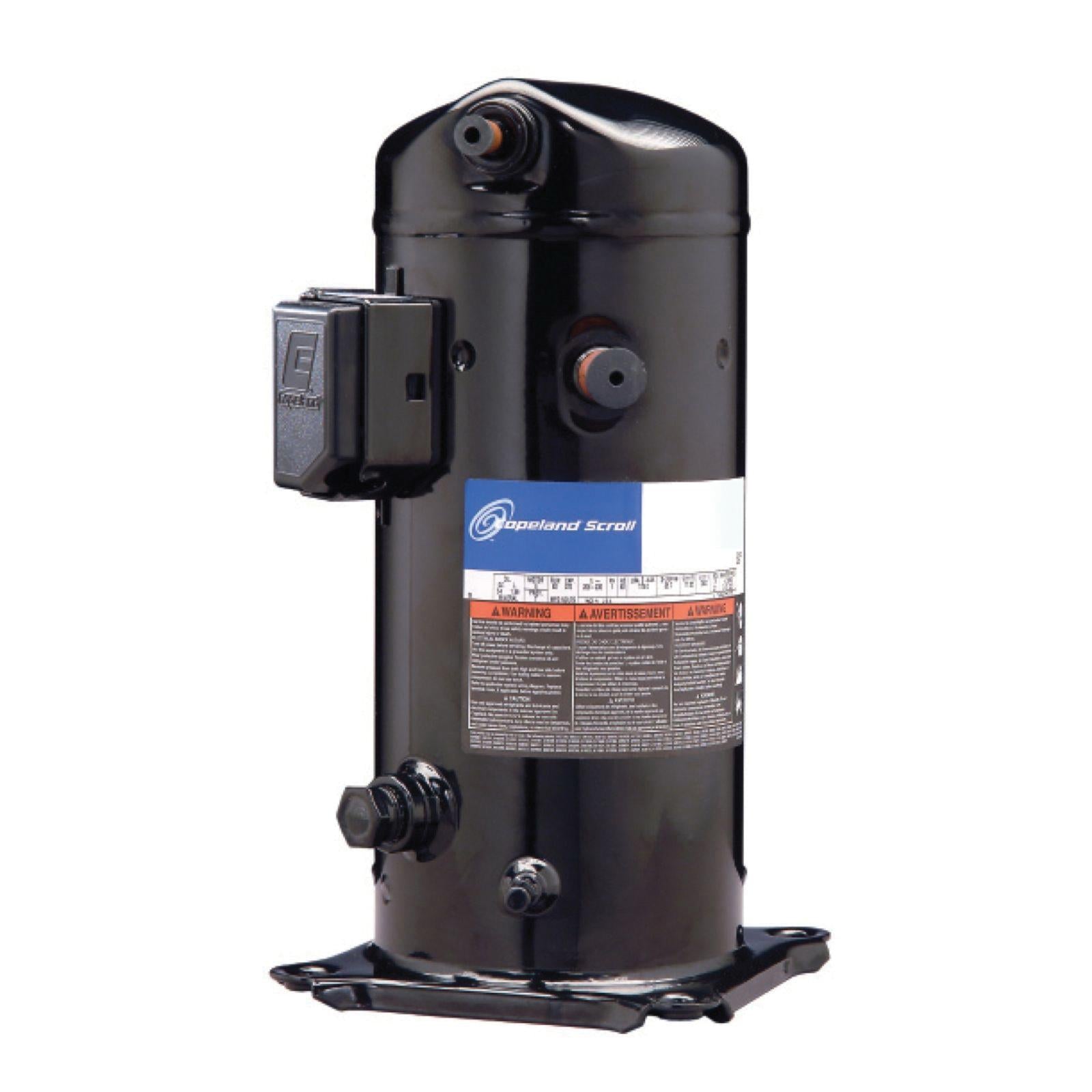

ZB88KCE-TFD-950 | Copeland ZB Series Hermetic Scroll Compressor 88000 BTU 460V Three Phase
- Regular price
- $7,499.00
- Sale price
- $7,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZB88KCE-TFD-950
Description
The Copeland ZB88KCE-TFD-950 is an aftermarket hermetic scroll compressor engineered for commercial refrigeration and air conditioning systems requiring stable performance across a wide refrigerant range. It delivers reliable 88,000 BTU cooling capacity with robust electrical protection and POE oil lubrication for continuous-duty operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC |
| Part Number | ZB88KCE-TFD-950 |
| Subcategory | Scroll Compressors |
| Compressor Series | ZB Series |
| Compressor Type | Hermetic Scroll |
| Cooling Capacity | 88,000 BTU/hr |
| Refrigerant Compatibility | R-22, R-404A, R-410A, R-407A, R-407C, R-407F, HFC |
| Voltage Rating | 460 VAC |
| Frequency | 60 Hz |
| Phase | Three Phase |
| Rated Load Amps (RLA) | 18.6 A |
| Locked Rotor Amps (LRA) | 125 A |
| Power Rating | 12,300 W |
| Motor Speed | 3500 rpm |
| EER Range | 8.0 – 11.0 |
| Oil Type | POE-AK/DA, 3MA/SP32 |
| Initial Oil Charge | 110 oz |
| Oil Recharge Quantity | 106 oz |
| Displacement | 11.65 in³/rev |
| Suction Line Size | 1-3/8 in Stub |
| Discharge Line Size | 7/8 in Stub |
| Sound Level | 80 – 85 dBA |
| Operating Temperature Range | 20–45°F Evap / 120–130°F Condensing |
| Dimensions (L x W x H) | 10.38 x 11.19 x 21.5 in |
| Weight | 135 lb |
Information About ZB88KCE-TFD-950
The ZB88KCE-TFD-950 belongs to Copeland’s ZB Series of scroll compressors, developed for commercial refrigeration and air conditioning applications requiring flexibility across multiple refrigerants. This series is known for durable construction, stable oil management, and consistent performance under varying thermal and load conditions. The compressor incorporates a hermetic scroll design with internal inherent motor protection to support reliable continuous operation. With broad refrigerant compatibility and robust electrical characteristics, it is suitable for both new system builds and retrofit installations.
Key Features:
- ZB Series Scroll Technology: Designed for commercial refrigeration and A/C systems requiring reliable compression across wide operating conditions.
- Multi-Refrigerant Capability: Supports R-22, R-404A, R-410A, and multiple R-407 variants, providing flexibility for diverse system designs.
- Hermetic Scroll Construction: Fully sealed design reduces internal leakage, vibration, and mechanical wear for extended service life.
- Inherent Motor Protection: Built-in protection safeguards against overload, overheating, and abnormal electrical conditions.
- Efficient Oil Management: POE oil system with controlled circulation supports stable lubrication and thermal performance.
- Commercial-Grade Electrical Design: Three-phase 460 VAC operation with high LRA tolerance ensures reliable startup and operation.
- Low Noise Operation: Scroll compression technology minimizes sound and vibration compared to traditional compressor designs.
The ZB88KCE-TFD-950 delivers the reliability and precision required for commercial refrigeration and air conditioning compressor applications with demanding operational requirements.
