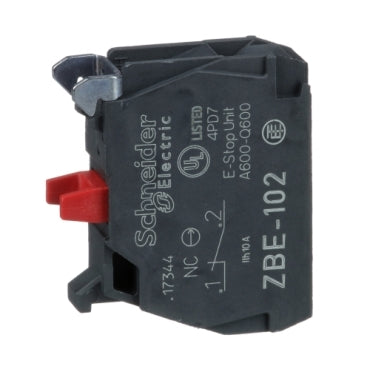

ZBE102 | Schneider Electric Harmony, 22mm Push Button, Screw Clamp Terminal
- Regular price
- $19.00
- Sale price
- $19.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ZBE102
Description
The Schneider Electric ZBE102 is a 22 mm single contact block designed with a 1 NC configuration for industrial pushbutton assemblies. Rated at 6 A and 600 V, it provides dependable circuit control using durable screw-clamp terminals.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Pilot Devices |
| Part Number | ZBE102 |
| Subcategory | Switch Contact Block |
| Contact Configuration | 1 NC |
| Contact Form | SPST-NC |
| Current Rating | 6 A |
| Voltage Rating | 600 V AC/DC Max |
| Terminal Type | Screw Clamp |
| Designed For | Harmony XB4 / XB5 Series |
| Mounting Type | Panel / Front Mount |
| Mounting Hole Size | 22 mm |
| Materials | Silver Alloy Contacts |
| Mechanical Durability | 5,000,000 Cycles |
| Impulse Withstand Voltage | 6 kV (IEC 60947-1) |
| Protection | IP20 |
| Color | Black |
| Operating Temperature | −40 °C to +70 °C |
| Illumination | Non-Illuminated |
| Weight | 0.011 kg |
Information About ZBE102
The ZBE102 is part of Schneider Electric’s Harmony XB4/XB5 series, built to deliver reliable contact performance in control stations and operator interfaces. This block features a slow-break SPST-NC contact, ensuring stable electrical switching and long mechanical life with a durability rating of up to five million cycles. Its screw-clamp terminal design offers secure wire retention and easy installation, making it compatible with 22 mm ZB4, ZB5, and ZBE modular pushbutton devices. Engineered for robust operation, the ZBE102 includes silver alloy contacts, IP20 protection, and a 6 kV impulse withstand rating, supporting use in demanding industrial environments.
Key Features:
- 1 NC Slow-Break Contact: Provides a dependable normally-closed circuit suited for stop, interlock, and safety functions.
- 22 mm Harmony Compatibility: Fits Schneider Electric XB4, XB5, and ZBE pushbutton assemblies for seamless integration.
- 6 A, 600 V Electrical Rating: Supports moderate control-circuit loads with strong insulation performance.
- Screw-Clamp Terminals: Ensure secure wiring with high pull-out resistance and easy field installation.
- Silver Alloy Contacts: Enhance conductivity and arc resistance for long-term durability.
- High Mechanical Life: Rated for up to 5,000,000 cycles, minimizing maintenance requirements.
- IP20 Front Protection: Suitable for enclosed industrial control panels meeting IEC standards.
- Wide Operating Temperature Range: Designed to operate from −40 °C to +70 °C for versatile application use.
The ZBE102 delivers the reliability and precision required for control stations, industrial automation panels, and operator interface assemblies.
