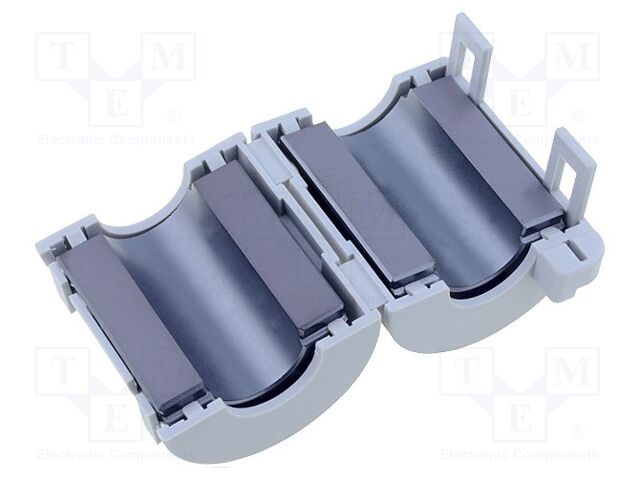

ZCAT3035-1330 | TDK Split Ferrite Core for EMI Suppression on Round Cables
- Regular price
- $7.00
- Sale price
- $7.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: ZCAT3035-1330
Description
The TDK ZCAT3035-1330 is a split ferrite core engineered to suppress high-frequency electromagnetic noise on round cables in electronic assemblies. This two-piece clamp-on design provides stable impedance performance across a wide frequency band, making it suitable for signal integrity and EMI compliance applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | TDK |
| Category | Components |
| Part Number | ZCAT3035-1330 |
| Subcategory | Capacitor |
| Ferrite Type | Split ferrite core |
| Structure | Two-piece clamp design |
| Cable Diameter (Max) | 13 mm |
| Impedance @ 100 MHz | 80–150 Ω |
| Frequency Range | 50 MHz – 500 MHz |
| Material | Ferrite core with plastic enclosure |
| Color | Grey |
| External Length | 39 mm |
| External Width | 34 mm |
| External Height | 13 mm |
| RoHS Compliance | Yes |
| SVHC | None (as of 15-Jan-2019) |
| Product Series | ZCAT Series |
| Operating Application | EMI suppression on round cables |
| Weight | 0.33 lbs |
Information About ZCAT3035-1330
The ZCAT3035-1330 is part of TDK’s ZCAT series, designed for easy installation on existing cables without disconnection. It is built with a durable plastic enclosure housing a high-performance ferrite material optimized for broadband noise suppression. The unit is compatible with round cables up to 13 mm in diameter, making it adaptable for industrial, communication, and consumer electronics equipment. Its frequency-dependent impedance characteristics support EMI control across medium to high-frequency ranges.
Key Features:
- Split Ferrite Structure: Two-piece clamp design enables installation on existing wiring without rewiring.
- High EMI Suppression: Provides 80–150 Ω impedance at 100 MHz for effective high-frequency noise attenuation.
- Broad Frequency Range: Operates effectively from 50 MHz to 500 MHz to support various EMI compliance requirements.
- Large Cable Compatibility: Supports round cables up to 13 mm diameter for versatile use across systems.
- Durable Enclosure: Plastic housing protects the ferrite material and ensures consistent mechanical stability.
- Compact Dimensions: 39 mm × 34 mm × 13 mm footprint supports integration in tight installation spaces.
- RoHS Compliant: Fully compliant with environmental regulations and free of SVHC substances (as of 15-Jan-2019).
- Secure Latching Mechanism: Ensures the core remains firmly closed during operation or vibration.
The ZCAT3035-1330 delivers the reliability and precision required for effective EMI suppression on round electrical cables.
