ZF25K4E-TF5-991 | Copeland 230V 3PH Scroll Compressor 40–57K BTU
- Regular price
- $7,297.00
- Sale price
- $7,297.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZF25K4E-TF5-991
Description

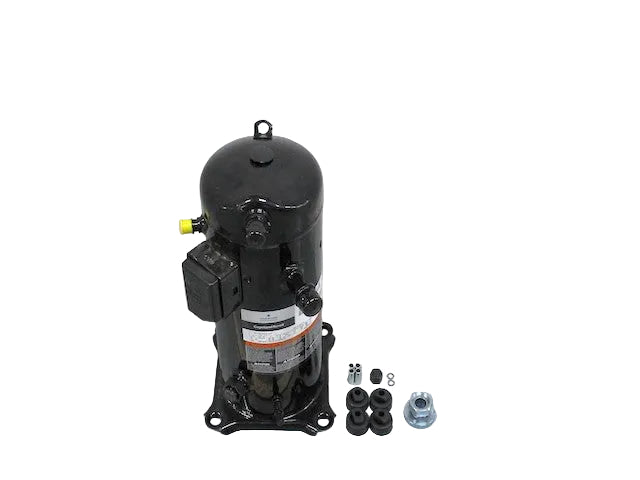

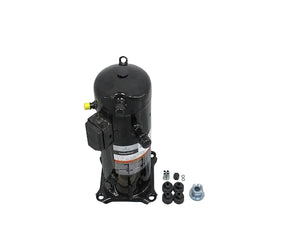

The Copeland ZF25K4E-TF5-991 is a hermetic scroll compressor designed for low-temperature refrigeration and air conditioning applications. It operates on 200/230 VAC, three-phase power and provides a nominal capacity range of approximately 40,000 to 57,500 BTU per hour. Engineered for multi-refrigerant compatibility, it supports reliable performance in commercial refrigeration systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | Air Compressor |
| Part Number | ZF25K4E-TF5-991 |
| Subcategory | Air Compressor |
| Compressor Type | Hermetic Scroll |
| Cooling Capacity | 40,000–57,500 BTU/hr |
| Refrigerant Compatibility | R-134a, R-22, R-404A, R-407A, R-407F, R-448A, R-449A, R-450A, R-513A |
| Voltage | 200/230 VAC |
| Phase | 3 |
| Frequency | 50/60 Hz |
| Rated Load Amps (RLA) | 23.1 A |
| Locked Rotor Amps (LRA) | 224 A |
| Oil Type | Polyolester (POE) |
| Initial Oil Charge | 64 oz |
| Suction Line Size | 7/8 in OD (Sweat/Braze) |
| Discharge Line Size | 3/4 in OD (Stub) |
| Evaporating Temperature | -25°F (-31.67°C) |
| Mounting Dimensions | 7.50 in x 7.50 in x 19.25 in |
| Height | 18.5 in |
| Length | 11.16 in |
| Width | 9.67 in |
| Approvals | UL Recognized |
| Country of Origin | USA |
| Weight | 103.00 lbs |
Information About ZF25K4E-TF5-991
The ZF25K4E-TF5-991 is part of the Copeland ZF series of scroll compressors intended for low-temperature and medium-temperature refrigeration duty. It features a hermetic steel housing and operates at 50/60 Hz using 200/230 VAC three-phase power. The compressor utilizes polyolester (POE) oil and is compatible with refrigerants including R-134a, R-22, R-404A, R-407A, R-407F, R-448A, R-449A, R-450A, and R-513A. Designed for commercial refrigeration systems, it incorporates internal protection and is UL recognized for safety compliance.
Key Features:
-
40,000–57,500 BTU Capacity: Suitable for commercial refrigeration and cooling systems.
-
200/230 VAC, 3-Phase Operation: Supports standard industrial power configurations.
-
Multi-Refrigerant Compatibility: Designed for use with R-134a, R-22, R-404A, and other approved refrigerants.
-
Hermetic Scroll Design: Provides continuous compression with reduced mechanical wear.
-
POE Oil Lubrication: Uses polyolester oil for refrigerant compatibility.
-
Low Temperature Capability: Rated for evaporating temperatures down to -25°F (-31.67°C).
-
Internal Protection: Integrated motor protection for operational safety.
-
UL Recognized: Meets applicable safety certification standards.
The ZF25K4E-TF5-991 delivers the reliability and precision required for commercial refrigeration and low-temperature compressor applications.
