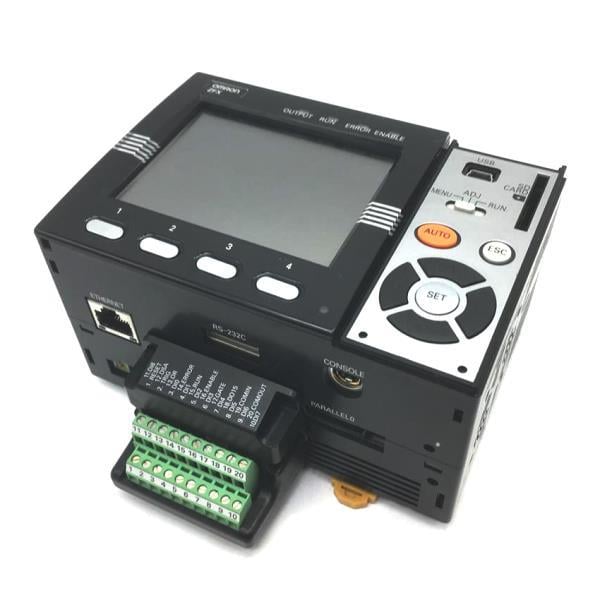

ZFX-C15 | Omron Smart Vision Controller with 3.5" TFT LCD, Ethernet, USB, RS-232C
- Regular price
- $3,564.00
- Sale price
- $3,564.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: ZFX-C15
Description
The Omron ZFX-C15 Vision Controller is a compact, intelligent vision processing unit designed for use with Omron ZFX-S Series smart cameras. Featuring a built-in 3.5-inch TFT color LCD display, it enables on-site configuration, monitoring, and control of visual inspection processes. With support for Ethernet, USB, and serial interfaces, the ZFX-C15 provides flexible connectivity and reliable image processing for industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | ZFX-C15 |
| Subcategory | Vision Controllers |
| Series | ZFX Series |
| Type | Smart Vision Controller |
| Compatible Cameras | Omron ZFX-S Series |
| Display Type | 3.5-inch TFT Color LCD |
| Number of Camera Inputs | 1 |
| Power Supply Voltage | 24 VDC ±10% |
| I/O Circuit Type | PNP |
| Ethernet Port | 10/100Base-TX |
| USB Interface | USB 2.0 Mini-B (Device) |
| Serial Interfaces | RS-232C / RS-422 |
| Storage Expansion | SD Card Slot |
| Communication Protocols | Ethernet TCP/IP, Serial, USB |
| Control Functions | Image capture, inspection, parameter configuration, logging |
| Protection Structure | Panel-mount housing |
| Mounting Type | Panel Mount |
| Enclosure Material | Industrial-grade plastic/resin |
| Operating Voltage Range | 21.6–26.4 VDC |
| Current Consumption | Approx. 0.5 A (at 24 VDC) |
| Operating Temperature Range | 0°C to +50°C |
| Storage Temperature Range | -20°C to +60°C |
| Operating Humidity | 35–85% RH (non-condensing) |
| Vibration Resistance | 10–55 Hz, 0.35 mm double amplitude |
| Shock Resistance | 150 m/s², 3 times each in X/Y/Z directions |
| Compliance | CE, UL, RoHS Certified |
| Weight | Approx. 0.6 kg (1.3 lb) |
Information About ZFX-C15
The ZFX-C15 belongs to Omron’s ZFX Smart Sensor Series, a modular vision system combining high-speed inspection performance with user-friendly setup. Designed to pair with ZFX-S Series cameras, this controller processes real-time image data for quality inspection, positioning, and detection tasks. It supports PNP I/O circuits and operates on 24 VDC, providing simple integration into existing control systems. The unit includes Ethernet, RS-232C/RS-422, and USB 2.0 connectivity options, along with an SD card slot for data storage, making it a flexible and efficient solution for visual automation.
Key Features:
- Smart Vision Controller: Designed for use with Omron ZFX-S camera units.
- 3.5" TFT Color LCD: Built-in display for configuration and real-time inspection monitoring.
- Flexible Communication Interfaces: Includes Ethernet, USB 2.0 (Mini-B), and RS-232C/RS-422 ports.
- PNP Input/Output Circuit: Simplifies integration with standard industrial control systems.
- 24 VDC Operation: Compatible with common automation power supplies.
- Expandable Storage: SD card slot for image and data backup.
- Compact and Durable Design: Suitable for installation in control panels and machine vision setups.
- Omron Reliability: Proven performance in precision inspection and measurement environments.
The ZFX-C15 delivers the reliability and precision required for visual inspection, object detection, and measurement applications in automated production systems.
