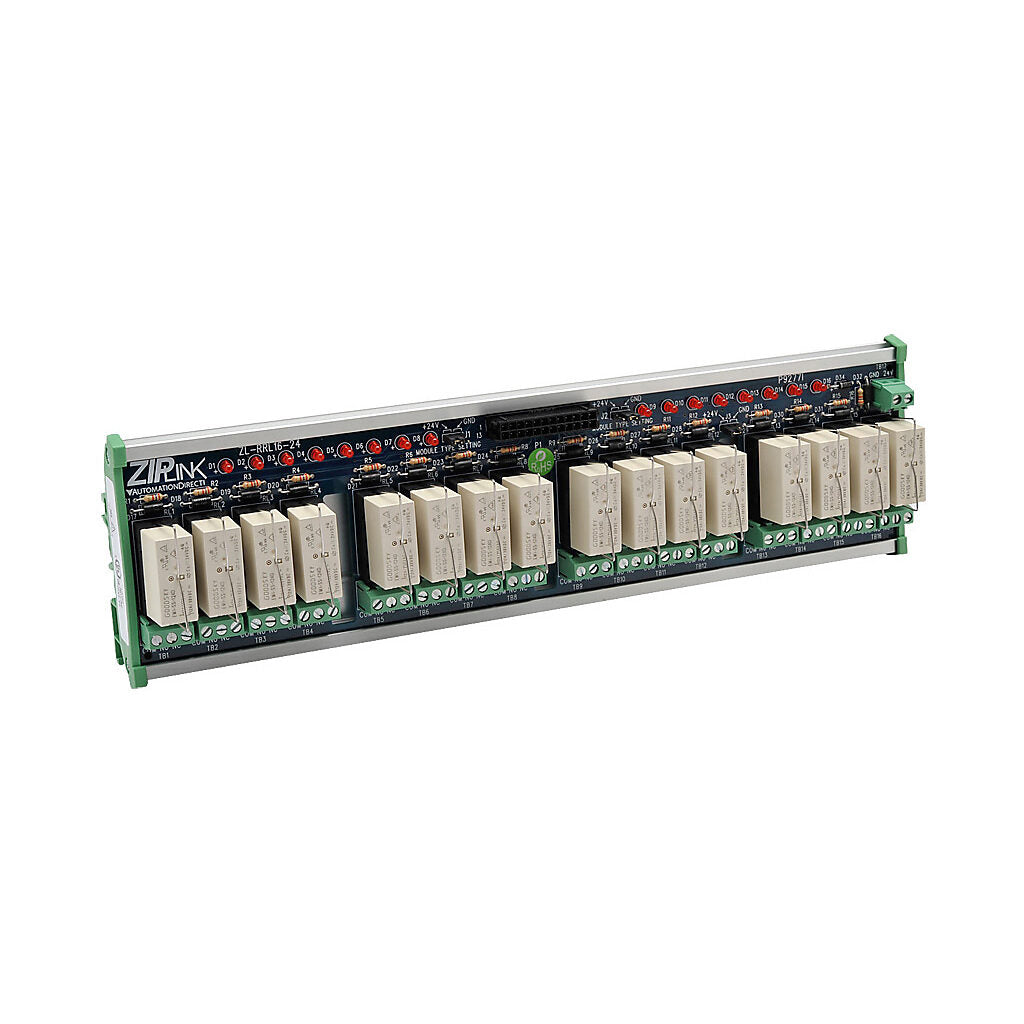

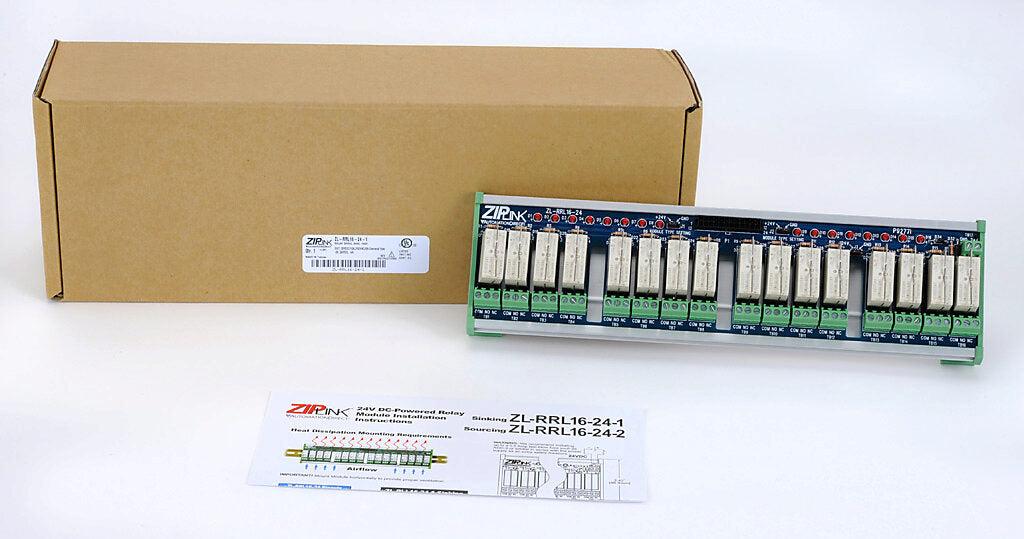

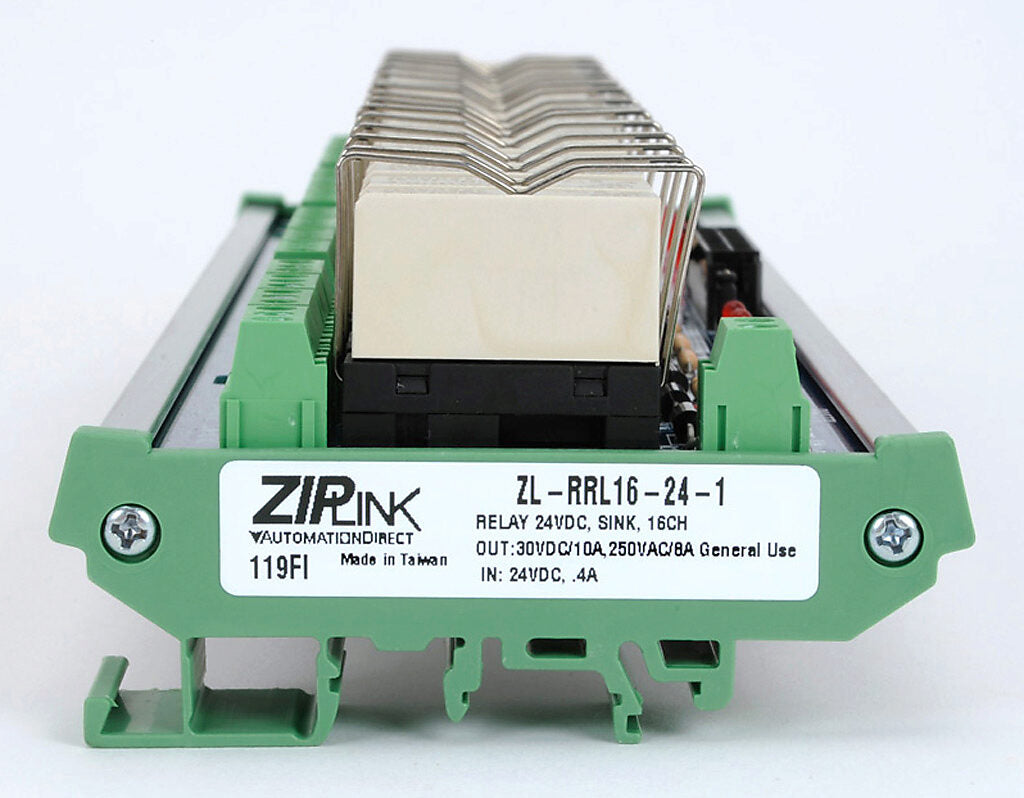

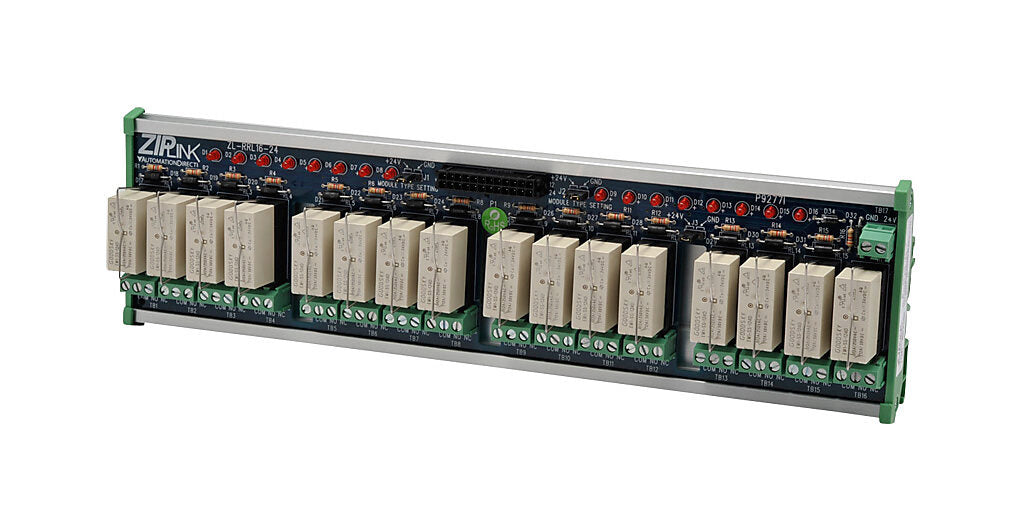

ZL-RRL16-24-1 | Automation Direct ZIPLink 16-Point 24VDC Relay Output Module
- Regular price
- $304.00
- Sale price
- $304.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZL-RRL16-24-1
Description
The Automation Direct ZL-RRL16-24-1 is a ZIPLink relay output module designed to provide 16 Form C (SPDT) relay outputs for industrial control systems. It operates with 24 VDC relay coils and supports high load switching up to 8A at 250 VAC or 10A at 30 VDC. This DIN rail-mounted module simplifies PLC output wiring and offers clear LED status indication for each channel.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | PLC Accessories |
| Part Number | ZL-RRL16-24-1 |
| Subcategory | Relay Output Modules |
| Series | ZIPLink |
| I/O Module Type | Relay output |
| Number of Points | 16 |
| Relay Configuration | (16) Form C (SPDT) |
| Discrete Output Type | Sinking |
| Nominal Coil Voltage | 24 VDC |
| Load Rating (AC) | 8A at 250 VAC |
| Load Rating (DC) | 10A at 30 VDC |
| Indication Type | LED indication per channel |
| Mounting | DIN rail |
| Replacement Relays | ZL-RELAY-24X4 |
| Application | PLC output load switching |
| Weight | 2.0 lb |
Information About ZL-RRL16-24-1
The ZL-RRL16-24-1 is part of the ZIPLink wiring system engineered to streamline field wiring between PLCs and control devices. It integrates 16 sinking relay outputs in a compact DIN rail-mounted housing, reducing panel wiring complexity. Each output utilizes a Form C (SPDT) relay configuration, allowing flexible switching of AC or DC loads. Designed for reliability and serviceability, the module includes LED indicators for output status and supports replacement relays using the ZL-RELAY-24X4 model.
Key Features:
- 16 Relay Output Points: Provides sixteen independent Form C (SPDT) relay channels.
- 24 VDC Coil Voltage: Designed for standard industrial control voltage operation.
- High Load Capacity: Rated for 8A at 250 VAC and 10A at 30 VDC per relay.
- Sinking Output Type: Compatible with sinking output control configurations.
- LED Status Indicators: Individual LEDs provide visual output activity monitoring.
- DIN Rail Mounting: Installs easily on standard DIN rail in control panels.
- ZIPLink System Integration: Simplifies PLC wiring and panel organization.
- Replaceable Relay Support: Compatible with ZL-RELAY-24X4 replacement relays.
The ZL-RRL16-24-1 delivers the reliability and precision required for industrial relay-based output switching and control panel integration.
