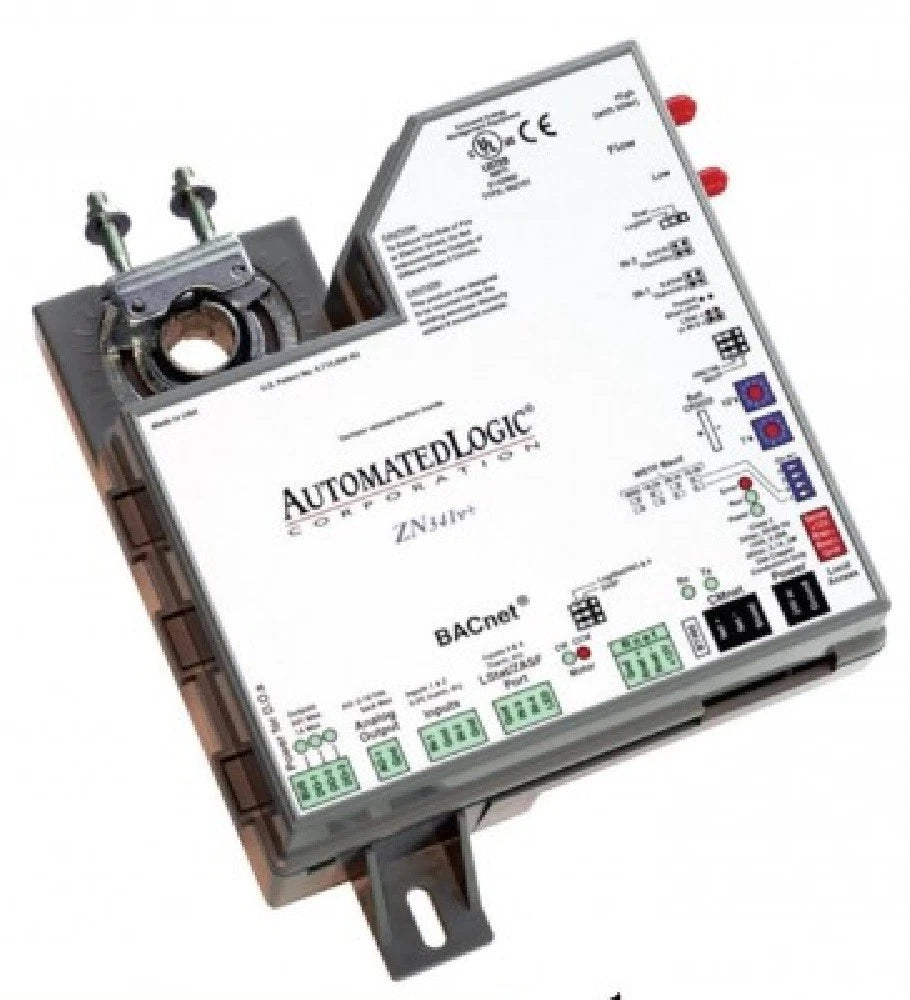

ZN341V | Automated Logic BACnet VAV Controller with Integrated Actuator
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZN341V
Description
The Automated Logic ZN341V is a pressure-independent VAV controller with an integrated actuator and airflow sensor for precise zone-level environmental control. It supports native BACnet communication over ARCNET or MS/TP, enabling seamless integration into building automation systems. Designed for energy-efficient HVAC operation, it manages airflow and temperature control in commercial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automated Logic |
| Category | Building Automation |
| Part Number | ZN341V |
| Subcategory | VAV Controller |
| Communication Protocols | BACnet over ARCNET (156 Kbps) / MS/TP |
| Integral Actuator Torque | 35 in-lb (4 Nm) |
| Airflow Sensor Type | Integrated Precision AWM Sensor |
| Digital Outputs | Up to 3 (Relay Rated 1A @ 24VAC/VDC, Model Dependent) |
| Universal Inputs | 4 Inputs, 10-bit A/D Resolution |
| Analog Outputs | 1 Output, 0–10 VDC (5 mA max), 8-bit Resolution |
| Power Requirements | 24VAC ±10%, 50–60 Hz, 14 VA |
| Memory | 512 KB RAM, 1 MB Flash |
| Operating Temperature Range | 0°F to 130°F (-17.8°C to 54.4°C) |
| Humidity Range | 10–90% RH, Non-Condensing |
| Enclosure Rating | UL94-5VA Plenum Rated |
| Dimensions (W x H x D) | 6-1/2 in x 7 in x 2-1/2 in |
| Weight | 1 lb (0.8 kg) |
Information About ZN341V
The ZN341V is part of Automated Logic’s ZN series of advanced VAV controllers engineered for variable air volume terminal units. It incorporates a brushless DC actuator and precision airflow measurement technology to maintain accurate control across minimum and maximum airflow setpoints. The controller supports BACnet communication via ARCNET 156 Kbps or MS/TP networks, allowing peer-to-peer data exchange with other building controllers. With onboard memory, graphical programmability, and compatibility with RS room sensors, it is suited for cooling-only, reheat, constant volume, and dual-duct HVAC configurations.
Key Features:
- Pressure-Independent VAV Control: Maintains accurate airflow regardless of duct pressure fluctuations.
- Integrated Brushless Actuator: 35 in-lb torque motor designed for long operational life and consistent damper positioning.
- Native BACnet Communication: Supports BACnet over ARCNET (156 Kbps) or MS/TP for system-wide integration.
- Precision Airflow Sensor: Built-in airflow measurement ensures accurate CFM control and efficient balancing.
- Flexible I/O Configuration: Includes universal inputs, digital outputs, and a 0–10 VDC analog output for reheat or valve control.
- Graphical Programming Capability: Fully programmable with downloadable firmware and diagnostic trending support.
- RS Sensor and Rnet Support: Enables local access, monitoring, and simplified test-and-balance procedures.
- Compact Plenum-Rated Enclosure: UL94-5VA rated housing suitable for installation in air-handling spaces.
The ZN341V delivers the reliability and precision required for advanced VAV terminal unit control in commercial HVAC systems.
