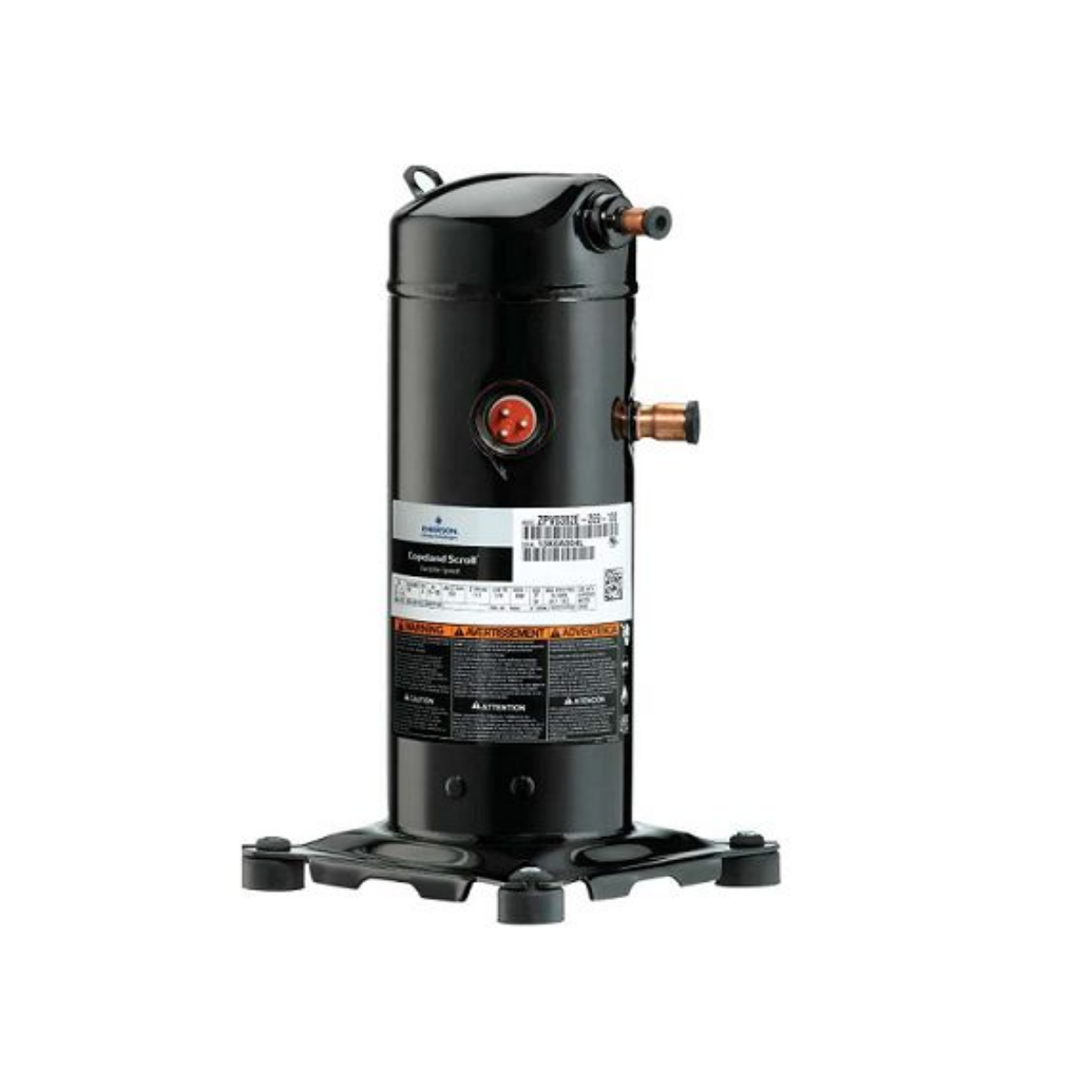

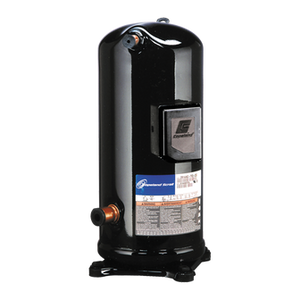

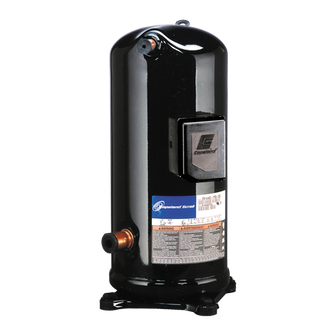

ZP182KCE-TE5-950 | Copeland Hermetic Scroll Compressor 183000 BTU 230V Three Phase
- Regular price
- $6,279.00
- Sale price
- $6,279.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZP182KCE-TE5-950
Description
The Copeland ZP182KCE-TE5-950 is an aftermarket hermetic scroll compressor designed for high-capacity air conditioning and refrigeration systems using R410A refrigerant. It delivers stable 15-ton cooling performance with low sound levels and efficient operation on 200–230V three-phase power.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC |
| Part Number | ZP182KCE-TE5-950 |
| Subcategory | Scroll Compressors |
| Compressor Type | Hermetic Scroll |
| Application | Air Conditioning / Refrigeration |
| Refrigerant | R410A |
| Cooling Capacity | 182,000–183,000 BTU |
| Nominal Capacity | 15 Ton |
| Sound Level | 77 dBA |
| Rated Voltage (60 Hz) | 200/220/230 VAC |
| Line Voltage Class | 240 V |
| Frequency | 50 / 60 Hz |
| Phase | Three Phase |
| Max Rated Load Amps (RLA) | 62.1 A |
| Locked Rotor Amps (LRA) | 340 A |
| Oil Type | Polyol Ester (POE) |
| Oil Recharge Quantity | 6.875 pints |
| Discharge Connection | Horizontal, 7/8 in |
| Suction Connection | Horizontal, 1-3/8 in |
| Mounting Arrangement | A |
| Technology | Scroll |
| Dimensions (L x W x H) | 12.93 x 11.73 x 21.7 in |
| Shipping Dimensions (L x W x H) | 32 x 38 x 32 in |
| Weight | 146 lb |
Information About ZP182KCE-TE5-950
The ZP182KCE-TE5-950 is part of Copeland’s ZP series of scroll compressors, engineered for high-efficiency operation in R410A-based HVAC and refrigeration systems. This model supports medium-voltage three-phase installations and is commonly used in commercial air conditioning equipment requiring high cooling output with controlled sound levels. The hermetic scroll design reduces internal leakage and mechanical wear, supporting long service life and consistent performance. POE oil lubrication and inherent motor protection enhance operational stability in continuous-duty environments.
Key Features:
- High-Capacity Scroll Compression: Advanced scroll technology delivers up to 183,000 BTU of cooling capacity for 15-ton commercial systems while maintaining smooth compression characteristics.
- R410A Refrigerant Design: Optimized for high-pressure R410A operation to ensure stable performance and thermal reliability.
- Low Acoustic Output: Rated sound level of 77 dBA supports quieter operation in commercial installations.
- Inherent Motor Protection: Built-in protection helps safeguard against overload, overheating, and abnormal electrical conditions.
- Centrifugal Oil Pump System: Ensures consistent oil circulation and reliable lubrication during continuous operation.
- Hermetic Construction: Fully sealed housing protects internal components from contamination and environmental exposure.
- Flexible Power Compatibility: Supports 200–230 VAC three-phase operation at both 50 Hz and 60 Hz.
The ZP182KCE-TE5-950 delivers the reliability and precision required for high-capacity commercial air conditioning and refrigeration compressor applications.
