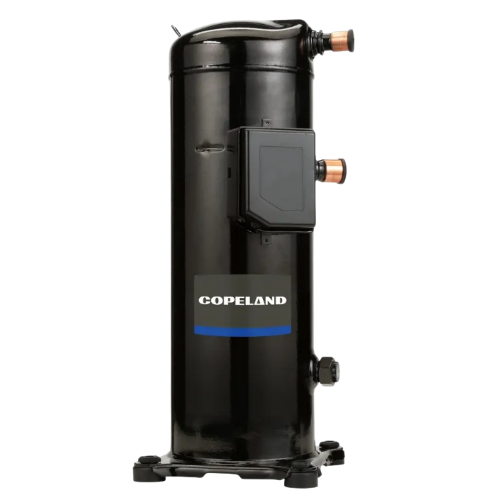

ZP182KCE-TED-965 | Copeland Hermetic Scroll Compressor 182000 BTU 460V Three Phase
- Regular price
- $7,699.00
- Sale price
- $7,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZP182KCE-TED-965
Description
The Copeland ZP182KCE-TED-965 is an aftermarket hermetic scroll compressor engineered for high-capacity heat pump and air conditioning applications. It delivers efficient and stable performance using R410A refrigerant, supported by POE oil lubrication and integrated motor protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC |
| Part Number | ZP182KCE-TED-965 |
| Subcategory | Scroll Compressors |
| Compressor Type | Hermetic Scroll |
| Application | Air Conditioning / Heat Pump |
| Refrigerant | R410A |
| Cooling Capacity | 182,000–183,000 BTU |
| Efficiency Rating | EER 11.0+ |
| Rated Voltage (60 Hz) | 460 VAC |
| Line Voltage Class | 480 V |
| Frequency | 50 / 60 Hz |
| Phase | Three Phase |
| Max Rated Load Amps (RLA) | 30 A |
| Locked Rotor Amps (LRA) | 173 A |
| Oil Type | Polyol Ester (POE) |
| Oil Recharge Quantity | 6.875 pints |
| Technology | Scroll |
| Motor Protection | Inherent Internal Protection |
| Liquid Line Size | 7/8 in |
| Dimensions (L x W x H) | 12.93 x 11.73 x 22.21 in |
| Shipping Dimensions (L x W x H) | 32 x 38 x 32 in |
| Weight | 146 lb |
Information About ZP182KCE-TED-965
The ZP182KCE-TED-965 is part of Copeland’s ZP series of scroll compressors, developed for high-efficiency operation in modern R410A HVAC systems. This series is optimized for high-pressure refrigerant applications and is widely used in commercial air conditioning and heat pump equipment. The hermetic scroll design minimizes internal leakage, vibration, and mechanical wear, contributing to quiet operation and long service life. Integrated motor protection and a centrifugal oil pump further enhance operational stability under continuous-duty conditions.
Key Features:
- High-Efficiency Scroll Technology: Advanced scroll compression design delivers EER ratings above 11.0, supporting reduced energy consumption in large-capacity systems.
- High-Capacity Performance: Provides up to 182,000 BTU of cooling output for demanding commercial air conditioning and heat pump applications.
- R410A Refrigerant Optimization: Engineered for ultra-high-pressure R410A systems, ensuring stable operation at elevated discharge conditions.
- Low Noise and Vibration Operation: Scroll mechanism significantly reduces sound and vibration compared to reciprocating compressor designs.
- Inherent Motor Protection: Built-in protection safeguards the motor from overload, overheating, and abnormal electrical conditions.
- Centrifugal Oil Pump Lubrication: Ensures consistent oil circulation and reliable lubrication during continuous operation.
- Hermetic Compressor Construction: Fully sealed housing protects internal components and supports long-term reliability.
The ZP182KCE-TED-965 delivers the reliability and precision required for high-capacity commercial heat pump and air conditioning compressor applications.
