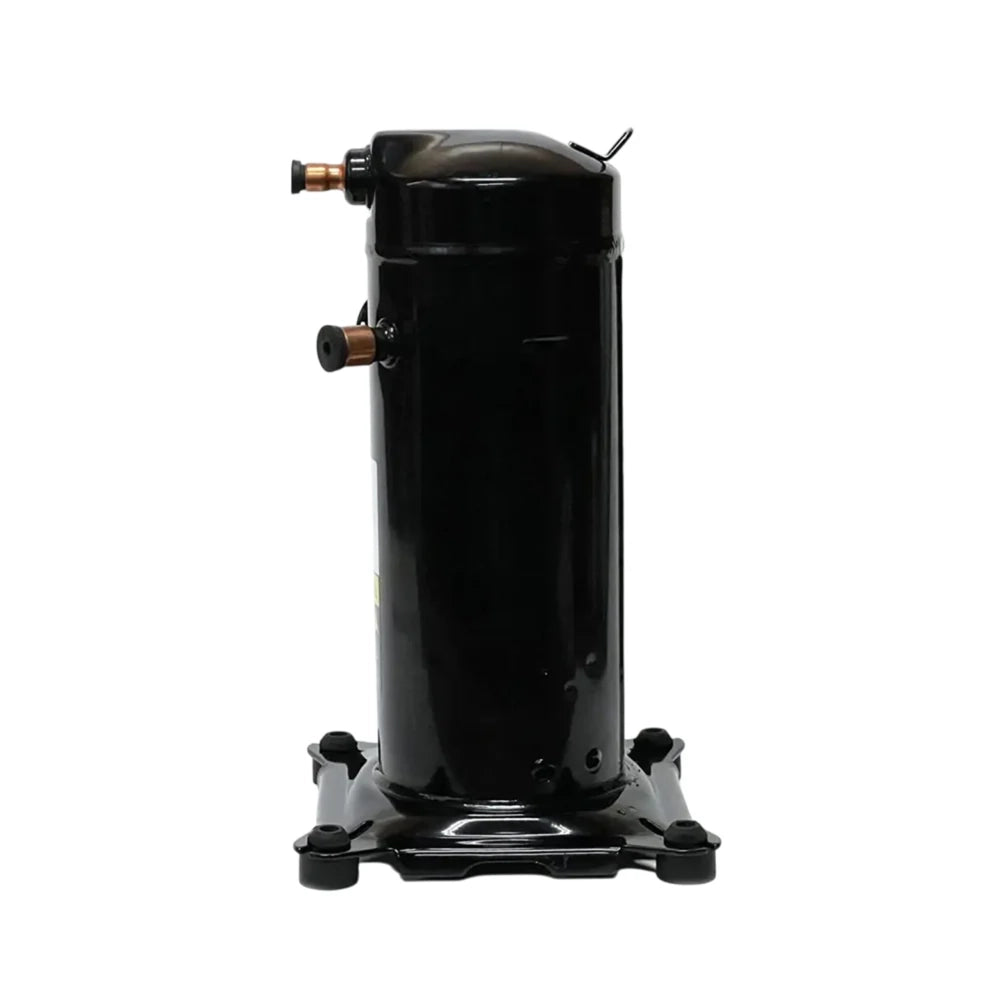

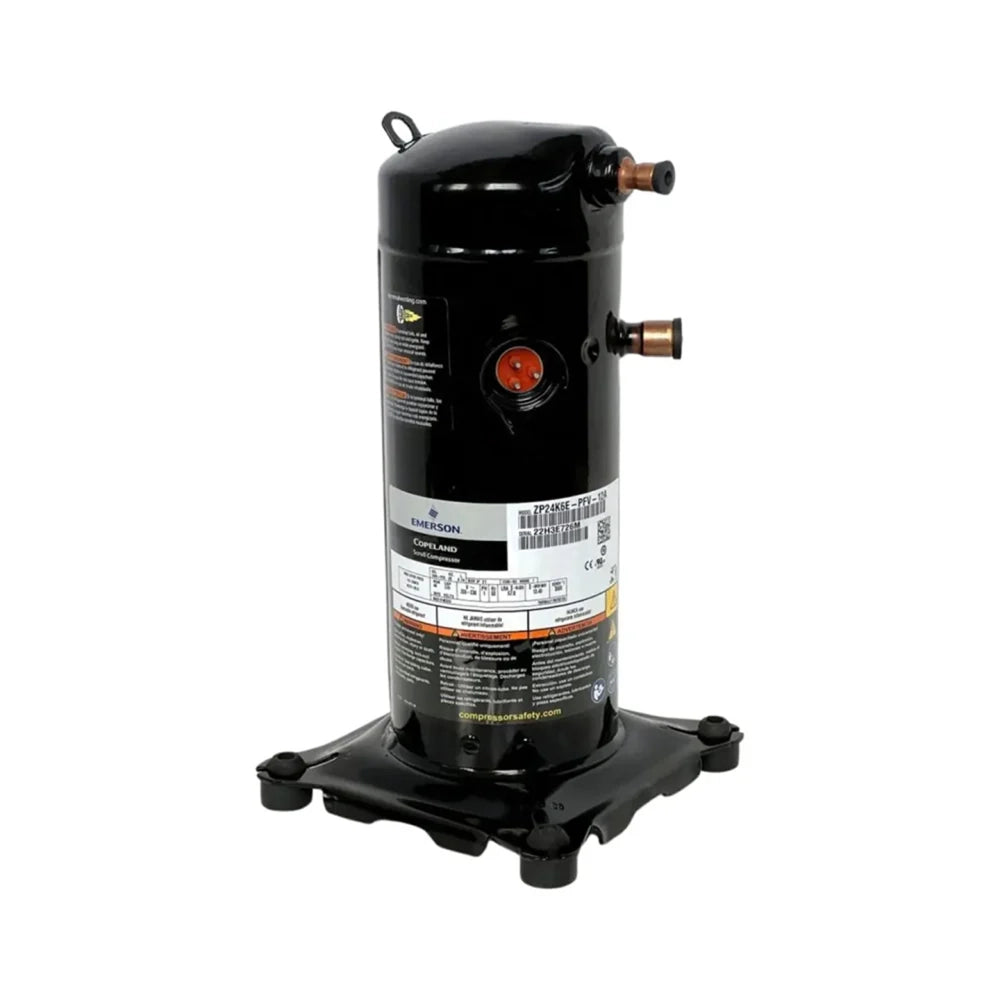

ZP24K6E-PFV-130 | Copeland 24,000 BTU Scroll Compressor R-410A 208–230V Single-Phase
- Regular price
- $877.00
- Sale price
- $877.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ZP24K6E-PFV-130
Description
The Copeland ZP24K6E-PFV-130 is a scroll compressor engineered to deliver reliable 24,000 BTU cooling performance for residential and light commercial HVAC systems. Designed for R-410A refrigerant and 208–230 V single-phase power, it operates with stable efficiency and reduced sound output.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC Compressors |
| Part Number | ZP24K6E-PFV-130 |
| Subcategory | Scroll Compressors |
| Compressor Type | Scroll, Hermetic |
| Cooling Capacity | 24,000 BTU/h (2 tons) |
| Refrigerant | R-410A |
| Voltage | 208–230 V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Amperage | 6.8–10.3 A (RLA 12.8–14.3 A, LRA 67.8 A) |
| Mass Flow Rate | 349–397 lbs/hr |
| Oil Type | POE |
| Oil Charge | 25 oz |
| Suction Line Size | 3/4" OD (stub) |
| Discharge Line Size | 1/2" OD (stub) |
| Mounting Type | Standard 3-point |
| Evaporating Temp | 45°F (7.22°C) |
| Condensing Temp | 130°F (54.44°C) |
| Return Gas Temp | 65°F (18.33°C) |
| Liquid Temp | 115°F (46.11°C) |
| Dimensions (L×W×H) | 9.56" × 9.56" × 15.27" |
| Mounting Dimensions | 7.5" × 7.5" × 16.02" |
| Sound Level | 66–71 dBA |
| Weight | 80.0 lbs |
Information About ZP24K6E-PFV-130
The ZP24K6E-PFV-130 is part of Copeland’s high-efficiency ZP scroll compressor series, engineered for reliable performance in residential and commercial R-410A cooling systems. Built within a hermetic housing and equipped with POE lubrication, it provides consistent 24,000 BTU output while supporting 208–230 V, 50/60 Hz single-phase installations. The compressor uses precision-machined scroll elements to deliver smooth compression, reduced vibration, and quiet operating levels between 66 and 71 dBA. Designed with standard 3-point mounting, optimized refrigerant connections, and durable construction, it supports long-term service life in demanding HVAC environments.
Key Features:
- 24,000 BTU Cooling Output: Provides dependable 2-ton performance for residential and light commercial systems.
- R-410A System Compatibility: Designed for high-pressure R-410A applications requiring strong efficiency and stable operation.
- Hermetic Scroll Mechanism: Ensures smooth compression with reduced vibration and lower mechanical wear.
- 208–230V Single-Phase Design: Supports common HVAC electrical configurations for flexible field installation.
- Low Sound Operation: Operates within a quiet 66–71 dBA range for improved acoustic comfort.
- POE Oil Charge Included: Equipped with 25 oz of polyolester oil for proper lubrication and system reliability.
- Precision Refrigerant Connections: 3/4" suction and 1/2" discharge stub fittings allow secure and efficient piping.
- Dual-Frequency Capability: Supports both 50 Hz and 60 Hz operation for global or mixed-frequency HVAC applications.
- Durable Hermetic Housing: Protects internal components from moisture, debris, and external mechanical stress.
- Stable Thermodynamic Performance: Engineered for consistent operation across standard evaporating and condensing temperatures.
The ZP24K6E-PFV-130 delivers the reliability and precision required for modern R-410A HVAC systems needing consistent two-ton cooling performance.
