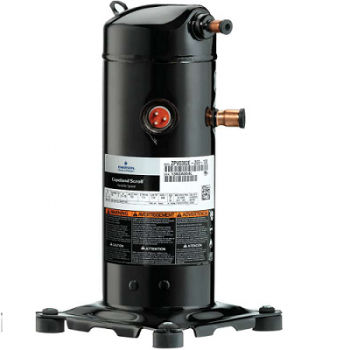

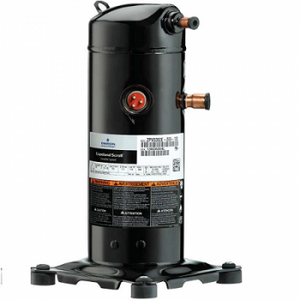

ZPD103KCE-TF5-950 | Copeland Hermetic Scroll Compressor 103000 BTU 230V Three Phase
- Regular price
- $8,179.00
- Sale price
- $8,179.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZPD103KCE-TF5-950
Description
The Copeland ZPD103KCE-TF5-950 is an aftermarket hermetic scroll compressor designed for heat pump and air conditioning systems using R410A refrigerant. It delivers high-efficiency performance with low noise operation and stable lubrication through POE oil and an integrated centrifugal oil pump.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC |
| Part Number | ZPD103KCE-TF5-950 |
| Subcategory | Scroll Compressors |
| Compressor Type | Hermetic Scroll |
| Application | Air Conditioning / Heat Pump |
| Refrigerant | R410A |
| Cooling Capacity | 103,000–105,000 BTU |
| Horsepower | 8.5 HP |
| Efficiency Rating | EER 11.0+ |
| Rated Voltage | 200/208/230 VAC |
| Line Voltage (60 Hz) | 240 VAC |
| Frequency | 50 / 60 Hz |
| Phase | Three Phase |
| Rated Load Amps (Max RLA) | 33.6 A |
| Locked Rotor Amps (LRA) | 225 A |
| Oil Type | Polyol Ester (POE) |
| Oil Recharge Quantity | 6.625 pints |
| Discharge Connection Type | Stub |
| Discharge Line Size (ID) | 7/8 in |
| Suction Connection Type | Stub |
| Suction Line Size (ID) | 1-3/8 in |
| Mounting Arrangement | A |
| Technology | Scroll |
| Dimensions (L x W x H) | 11.54 x 11.23 x 21 in |
| Shipping Dimensions (L x W x H) | 32 x 38 x 32 in |
| Weight | 134 lb |
Information About ZPD103KCE-TF5-950
The ZPD103KCE-TF5-950 is part of Copeland’s ZPD scroll compressor family, engineered to deliver efficient and reliable performance in commercial and industrial HVAC applications. This model is designed for operation with R410A refrigerant and supports both 50 Hz and 60 Hz electrical systems, allowing flexibility across different regional installations. Its hermetic scroll design reduces internal leakage and mechanical wear, contributing to lower vibration and sound levels during operation. The use of POE oil, combined with a centrifugal oil pump, ensures consistent lubrication and long-term reliability under continuous-duty conditions.
Key Features:
- High-Efficiency Scroll Technology: Advanced scroll compression design delivers EER ratings above 11.0, supporting reduced energy consumption and operating costs.
- R410A Refrigerant Compatibility: Optimized for high-pressure R410A systems commonly used in modern heat pump and air conditioning equipment.
- Low Noise and Vibration Operation: Scroll mechanism minimizes pulsation and mechanical vibration, improving acoustic performance in installed systems.
- Inherent Motor Protection: Built-in motor protection safeguards against overload and abnormal operating conditions to enhance system reliability.
- Centrifugal Oil Pump System: Provides continuous and stable oil circulation to maintain proper lubrication during all operating modes.
- Hermetic Compressor Construction: Fully sealed housing protects internal components from contamination and environmental exposure.
- Flexible Electrical Ratings: Supports 200/208/230 VAC three-phase power at both 50 Hz and 60 Hz for broad application compatibility.
The ZPD103KCE-TF5-950 delivers the reliability and precision required for high-efficiency heat pump and air conditioning compressor applications.
