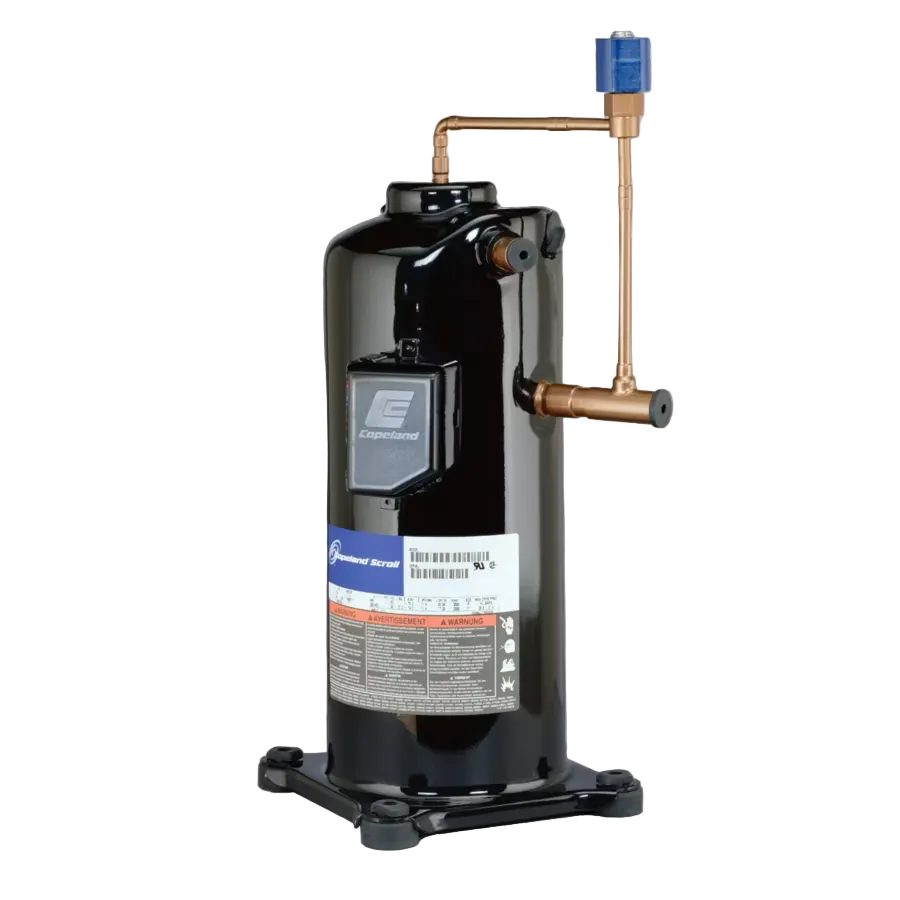

ZPD154KCE-TED-950 | Copeland 154K BTU 460V 3PH Digital Scroll Compressor
- Regular price
- $9,497.00
- Sale price
- $9,497.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZPD154KCE-TED-950
Description
The Copeland ZPD154KCE-TED-950 is a digital scroll compressor designed for air conditioning and heat pump applications using R-410A refrigerant. It provides approximately 154,000 BTU per hour cooling capacity and operates on 460 VAC, three-phase power. Engineered for high-temperature and ultra-high-pressure systems, it incorporates digital modulation for capacity control and system efficiency.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC |
| Part Number | ZPD154KCE-TED-950 |
| Subcategory | Refrigeration Compressor |
| Series | ZPD |
| Compressor Type | Hermetic Digital Scroll |
| Cooling Capacity | 154,000 Btu/hr |
| Refrigerant Type | R-410A |
| Voltage Rating | 460 VAC |
| Phase | 3 |
| Frequency | 50/60 Hz |
| Amperage Rating | 21.3 A |
| Max RLA | 25.7 A |
| LRA | 150 A |
| Power Rating | 14,100 W (13 hp) |
| Speed | 3500 rpm |
| EER Rating | 11–11.1 |
| Compressor Oil | POE-AK/DA, 3MA/SP32 |
| Suction Line Size | 1-3/8 in Stub |
| Discharge Line Size | 7/8 in Stub |
| Dimensions | 12.94 in L x 11.73 in W x 22.21 in H |
| Sound Level | 80–85 dBA |
| Application | A/C and Heat Pump |
| Weight | 162.00 lbs |
Information About ZPD154KCE-TED-950
The ZPD154KCE-TED-950 belongs to the Copeland ZPD series of hermetic digital scroll compressors. It features digital modulation technology that adjusts compressor output to match system demand, improving temperature stability and energy performance. The unit operates at 460 VAC, 60 Hz, three-phase and uses POE (3MA/SP32) oil compatible with R-410A refrigerant. Designed for commercial HVAC installations, it includes stub suction and discharge connections and internal inherent motor protection for operational reliability.
Key Features:
-
Digital Scroll Modulation: Provides capacity control for improved system efficiency and load matching.
-
154,000 BTU/h Capacity: Suitable for mid- to large-capacity commercial HVAC systems.
-
R-410A Compatibility: Designed for high-pressure refrigerant applications.
-
460 VAC, 3-Phase Operation: Supports industrial electrical supply configurations.
-
POE Oil Lubrication: Uses polyol ester oil for R-410A systems.
-
Internal Inherent Protection: Integrated motor protection for enhanced reliability.
-
Stub Line Connections: 1-3/8 in suction and 7/8 in discharge for secure piping integration.
-
11–11.1 EER Rating: Engineered for energy-efficient performance.
The ZPD154KCE-TED-950 delivers the reliability and precision required for commercial air conditioning and heat pump compressor systems.
