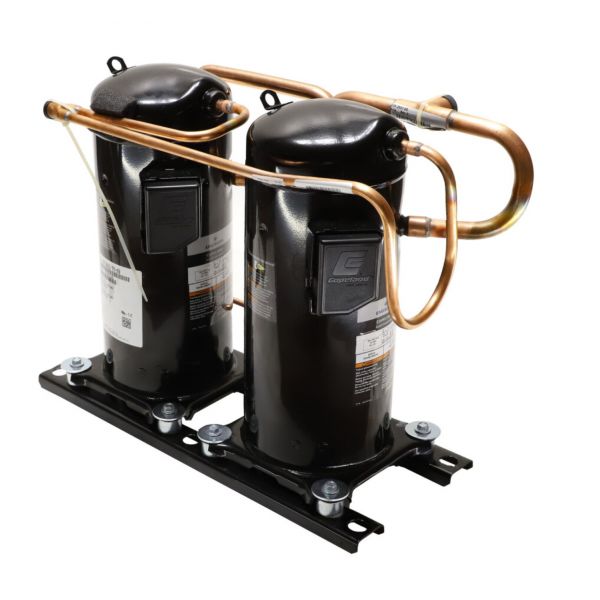

ZPT166KCE-TF5-950 | Copeland Tandem Scroll Compressor 164000 BTU R410A 230V Three Phase
- Regular price
- $8,677.00
- Sale price
- $8,677.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZPT166KCE-TF5-950
Description
The Copeland ZPT166KCE-TF5-950 is a tandem scroll compressor designed for high-temperature, ultra-high-pressure air conditioning applications using R410A refrigerant. It combines tandem modulation capability with internal electronic protection to support stable capacity control and efficient system operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC |
| Part Number | ZPT166KCE-TF5-950 |
| Subcategory | Tandem Scroll Compressors |
| Compressor Type | Scroll, Tandem |
| Refrigerant | R410A |
| Cooling Capacity | 164,000 BTU |
| Application | Air Conditioning |
| Efficiency Rating | Up to EER 10.7 |
| Voltage | 200/230 VAC |
| Frequency | 50/60 Hz |
| Phase | Three Phase |
| Operating Class | High Temperature, Ultra High Pressure |
| Oil Type | Polyester (POE) |
| Initial Oil Charge | 114 oz |
| Motor Protection | Internal Electronic Protection |
| Compressor Housing | Hermetic |
| Sound Level | 78–83 dBA |
| Discharge Connection Type | Stub |
| Discharge Connection Size (OD) | 1 1/8 in |
| Suction Line Size (OD) | 1 1/8 in |
| Mass Flow | 2410–2460 lbs/hr |
| Rated Voltage Range | 200/220/230 VAC |
| Mounting Dimensions | 21.5 x 7.5 x 19.13 in |
| Dimensions (H x L x W) | 18.8 x 24.65 x 11.69 in |
| Country of Origin | USA |
| Approvals | UL Recognized |
| Weight | 190 lb |
Information About ZPT166KCE-TF5-950
The ZPT166KCE-TF5-950 is part of Copeland’s tandem scroll compressor lineup, engineered to deliver efficient and reliable capacity modulation in commercial air conditioning systems. Tandem configuration allows staged operation, improving part-load efficiency while maintaining stable system pressures. The compressor is designed for high-temperature and ultra-high-pressure environments commonly associated with R410A refrigerant systems. Its hermetic scroll construction, POE oil lubrication, and internal electronic motor protection contribute to reduced wear, consistent performance, and extended operational life.
Key Features:
- Tandem Scroll Configuration: Utilizes two scroll compression elements to enable staged capacity modulation, improving efficiency during partial-load operation and reducing cycling stress on the system.
- High-Capacity Performance: Delivers approximately 164,000 BTU of cooling capacity, making it suitable for large commercial air conditioning applications with high thermal demand.
- R410A Refrigerant Optimization: Engineered specifically for ultra-high-pressure R410A systems, ensuring stable operation under elevated discharge and condensing temperatures.
- High Temperature Operation Capability: Designed to maintain reliable performance in high ambient and discharge temperature conditions without compromising compressor integrity.
- Internal Electronic Motor Protection: Integrated protection system continuously monitors operating conditions to safeguard against overload, overheating, and abnormal electrical events.
- Low Noise Scroll Technology: Scroll compression minimizes vibration and sound output, supporting quieter operation compared to traditional compressor designs.
- POE Oil Lubrication System: Polyester oil ensures proper lubrication, thermal stability, and compatibility with R410A refrigerant for long-term reliability.
The ZPT166KCE-TF5-950 delivers the reliability and precision required for high-capacity, modulating commercial air conditioning compressor applications.
