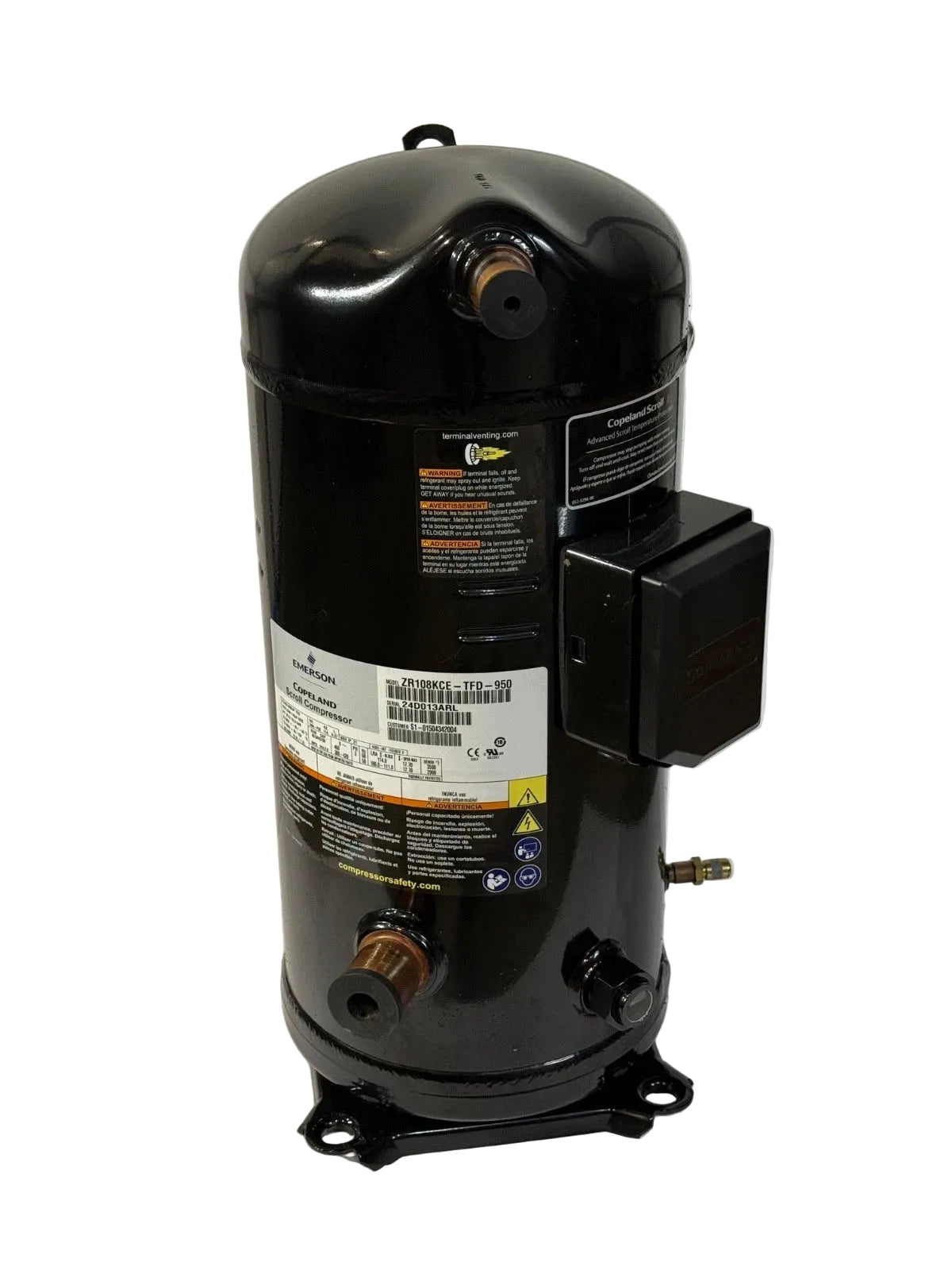

ZR108KCE-TFD-950 | Copeland ZR Series Scroll Compressor 108000 BTU 460V Three Phase
- Regular price
- $5,299.00
- Sale price
- $5,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZR108KCE-TFD-950
Description
The Copeland ZR108KCE-TFD-950 is a compliant scroll compressor engineered for commercial air conditioning systems requiring stable capacity and efficient performance. It supports multiple refrigerants and three-phase operation, delivering reliable cooling across a wide operating range.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC |
| Part Number | ZR108KCE-TFD-950 |
| Subcategory | Scroll Compressors |
| Compressor Series | ZR Series |
| Compressor Type | Compliant Scroll |
| Nominal Capacity | 108,000 BTU/hr |
| Capacity Range | 51,500 – 106,000 BTU |
| Refrigerant | R-22, R-407C, R-134A |
| Cooling Efficiency | Up to 11.6 EER |
| Voltage Rating | 460 VAC (60 Hz) / 380–420 VAC (50 Hz) |
| Frequency | 50 / 60 Hz |
| Phase | Three Phase |
| Motor Type | 3-Lead, 3-Phase |
| Motor Speed | 3500 RPM |
| Horsepower Range | 7–15 HP |
| Oil Type | POE Oil |
| Motor Protection | Internal Inherent Protection |
| Suction Connection Size | 1-3/8 in ODF (Soldered) |
| Discharge Connection Size | 7/8 in ODF (Soldered) |
| Sound Level | 85 dBA |
| Application | Air Conditioning |
| Dimensions (H x W x D) | 21 x 11.23 x 10.38 in |
| Weight | 132 lb |
Information About ZR108KCE-TFD-950
The ZR108KCE-TFD-950 is part of Copeland’s ZR Series of Compliant Scroll® compressors, widely used in commercial air conditioning systems for their durability and efficiency. This series incorporates axial and radial compliance, allowing the scroll elements to adapt under varying pressure conditions, which improves reliability and reduces wear. The compressor supports multiple refrigerants, making it suitable for both new installations and retrofit projects. Its internal motor protection and POE oil lubrication system ensure stable operation under continuous-duty conditions.
Key Features:
- Compliant Scroll® Technology: Axial and radial compliance reduces internal stress, enhances efficiency, and extends compressor service life.
- Wide Capacity Operating Range: Nominal 108,000 BTU/hr output supports flexible performance across varying load conditions.
- Multi-Refrigerant Compatibility: Designed for use with R-22, R-407C, and R-134A, providing adaptability for different HVAC system designs.
- Three-Phase Electrical Design: Supports 460 VAC at 60 Hz and 380–420 VAC at 50 Hz for commercial power systems.
- Internal Motor Protection: Built-in inherent motor protection safeguards against overload and abnormal operating conditions.
- Low Noise Operation: Scroll compression technology minimizes vibration and acoustic output compared to traditional compressors.
- Factory Oil Charged: Supplied with POE oil to support proper lubrication and efficient startup.
The ZR108KCE-TFD-950 delivers the reliability and precision required for commercial air conditioning scroll compressor applications.
