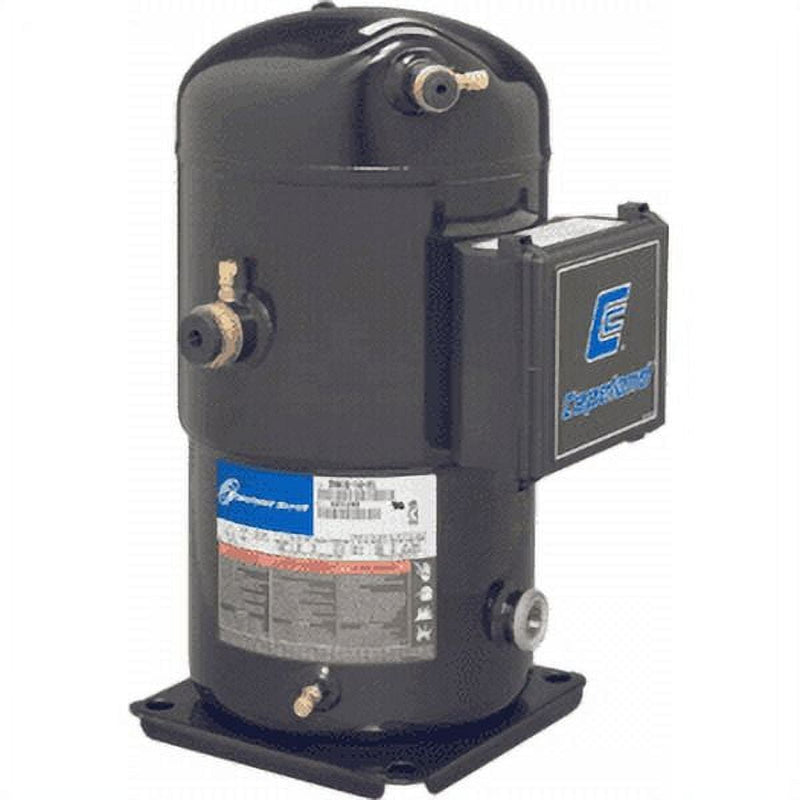

ZR144KCE-TFD-950 | Copeland ZR Series Scroll Compressor 144000 BTU 460V Three Phase
- Regular price
- $6,279.00
- Sale price
- $6,279.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZR144KCE-TFD-950
Description
The Copeland ZR144KCE-TFD-950 is a high-capacity scroll compressor designed for commercial air conditioning and comfort cooling applications. It delivers 144,000 BTU of cooling performance using proven scroll technology with multi-refrigerant compatibility and stable three-phase operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC |
| Part Number | ZR144KCE-TFD-950 |
| Subcategory | Scroll Compressors |
| Compressor Series | ZR Series |
| Compressor Type | Hermetic Scroll |
| Cooling Capacity | 144,000 BTU/hr |
| Tonnage | 12 Ton |
| Refrigerant | R-22, R-407C, R-134A, HFC |
| Voltage Rating | 460 VAC |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Rated Power | 12,350 W |
| Horsepower | 12 HP |
| Rated Load Amps (RLA) | 18.15 A |
| Locked Rotor Amps (LRA) | 125 A |
| Speed | 3500 rpm |
| EER Range | 11.6 – 19.6 |
| Mass Flow Rate | 2070 – 2130 lb/hr |
| Oil Type | POE-AK/DA, 3MA/SP32 |
| Initial Oil Charge | 110 oz |
| Displacement | 11.65 in³/rev |
| Suction Line Size (OD) | 1-3/8 in Stub |
| Discharge Line Size (OD) | 7/8 in Stub |
| Sound Level | 80 – 85 dBA |
| Operating Temperatures | 45°F Evap / 100–130°F Condensing |
| Dimensions (L x W x H) | 10.38 x 11.23 x 21 in |
| Mounting Dimensions | 7.5 x 7.5 x 21.75 in |
| Country of Origin | USA |
| Approvals | UL Recognized |
| Weight | 135 lb |
Information About ZR144KCE-TFD-950
The ZR144KCE-TFD-950 is part of Copeland’s ZR Series scroll compressor family, engineered for comfort cooling, rooftops, water chillers, and precision air conditioning systems. This series is widely used as a replacement for reciprocating compressors due to improved efficiency, lower vibration, and reduced maintenance requirements. The compressor supports multiple refrigerants, making it suitable for both new installations and retrofit projects. Its hermetic construction, POE oil lubrication, and comprehensive internal motor protection systems ensure dependable operation in demanding commercial HVAC environments.
Key Features:
- Advanced Scroll Compression Technology: Utilizes Copeland axial and radial compliance to reduce internal leakage, improve efficiency, and enhance long-term reliability.
- High-Capacity 12-Ton Performance: Delivers 144,000 BTU/hr of cooling output suitable for medium to large commercial air conditioning systems.
- Multi-Refrigerant Compatibility: Designed to operate with R-22, R-407C, and R-134A, offering flexibility across various system designs and retrofit applications.
- Low Noise and Vibration Operation: Scroll design minimizes pulsation and mechanical noise compared to traditional compressor technologies.
- Comprehensive Motor Protection: Includes inherent motor protection, discharge temperature protection, pressure control, and low ambient cut-out safeguards.
- Efficient Oil Management: POE-based oil system with low circulation rate supports stable lubrication and thermal performance.
- Commercial-Grade Electrical Design: Three-phase 460 VAC operation with high LRA tolerance ensures reliable starting and continuous duty performance.
The ZR144KCE-TFD-950 delivers the reliability and precision required for high-capacity commercial comfort cooling and air conditioning compressor applications.
