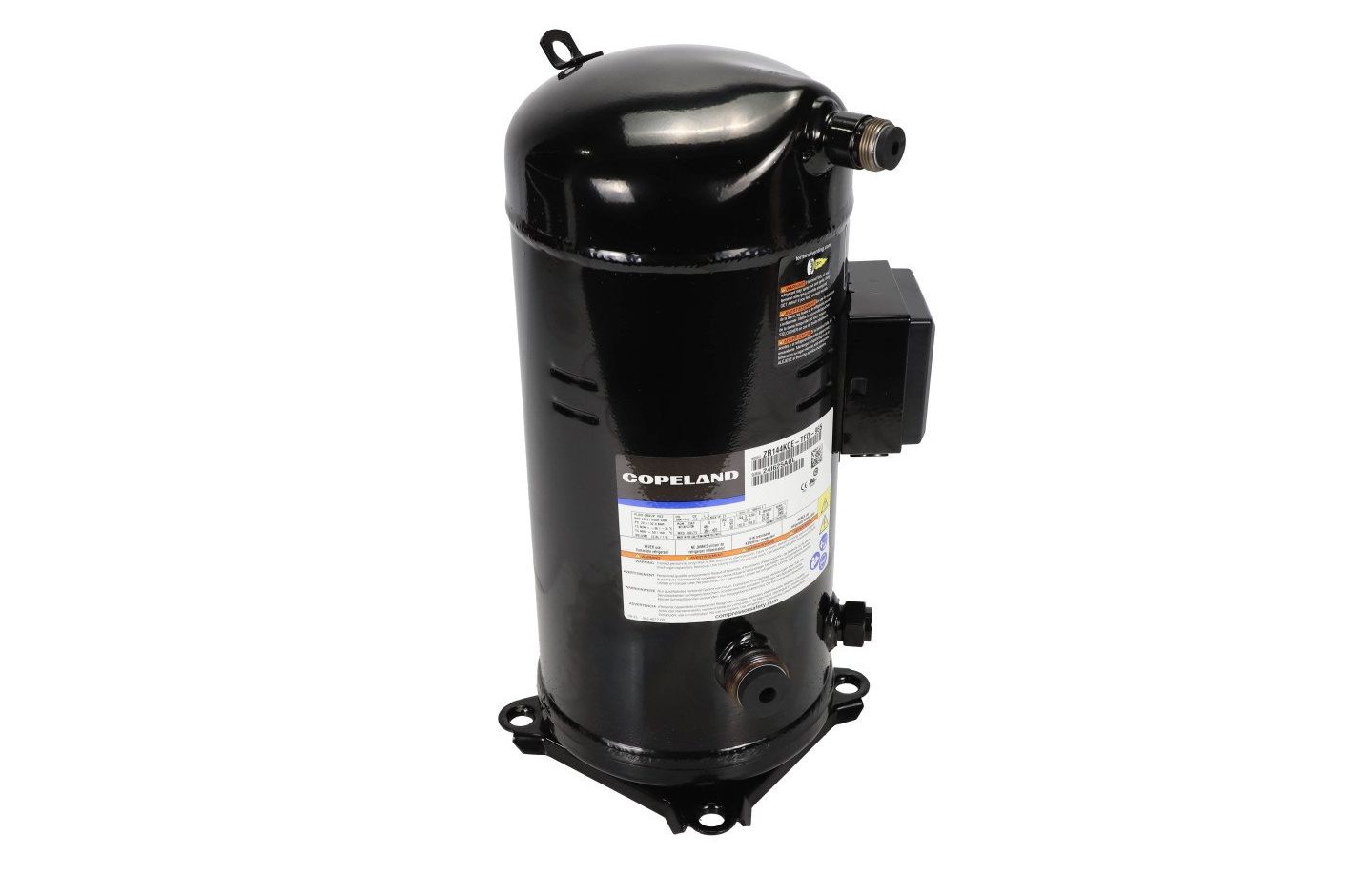

ZR144KCE-TFD-965 | Copeland Scroll Compressor 144000 BTU 460V Three Phase
- Regular price
- $4,499.00
- Sale price
- $4,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZR144KCE-TFD-965
Description
The Copeland ZR144KCE-TFD-965 is a hermetic scroll compressor engineered for comfort and precision cooling applications using R134a, R22, and R407C refrigerants. It delivers 144,000 BTU of cooling capacity with stable performance, low noise, and efficient operation in commercial HVAC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC |
| Part Number | ZR144KCE-TFD-965 |
| Subcategory | Scroll Compressors |
| Compressor Type | Scroll |
| Compressor Housing | Hermetic |
| Cooling Capacity | 144,000 BTU |
| Refrigerant | R134a, R22, R407C |
| Voltage | 380 / 420 / 460 VAC |
| Frequency | 50 / 60 Hz |
| Phase | Three Phase |
| Rated Load Amps (RLA) | 18.6–20 A |
| Locked Rotor Amps (LRA) | 245 A |
| Oil Type | Polyester (POE) |
| Initial Oil Charge | 110 oz |
| Sound Level | 80–85 dBA |
| Discharge Connection Type | Stub |
| Discharge Connection Size (OD) | 7/8 in |
| Suction Line Size (OD) | 1 3/8 in |
| Displacement | 11.65 in³/rev |
| Mass Flow | 1715–2070 lbs/hr |
| Mounting Dimensions | 7.5 x 7.5 x 21.75 in |
| Dimensions (H x L x W) | 21 x 10.38 x 11.23 in |
| Condensing Temperature | 130°F (54.44°C) |
| Return Gas Temperature | 55–65°F (18.33°C) |
| Approvals | UL Recognized |
| Country of Origin | USA |
| Weight | 135 lb |
Information About ZR144KCE-TFD-965
The ZR144KCE-TFD-965 belongs to Copeland’s ZR series of scroll compressors, developed for air conditioning, water chillers, rooftops, and close control unit applications. This series is recognized for replacing traditional reciprocating compressors due to improved efficiency, reduced vibration, and lower operating costs. The compressor supports multiple refrigerants and incorporates axial and radial compliance technology to enhance reliability and efficiency across varying load conditions. Its hermetic scroll design and POE oil lubrication ensure consistent operation and long service life in demanding commercial environments.
Key Features:
- Advanced Scroll Compression Technology: Uses Copeland scroll design with axial and radial compliance to minimize leakage, reduce mechanical stress, and improve overall efficiency.
- High Cooling Capacity: Provides 144,000 BTU of output suitable for medium to large commercial HVAC and precision cooling systems.
- Multi-Refrigerant Compatibility: Supports R134a, R22, and R407C refrigerants, offering flexibility for various system designs and retrofit applications.
- Low Noise and Vibration Levels: Scroll operation significantly reduces sound and vibration compared to reciprocating compressors, enhancing system comfort.
- Efficient Oil Management: Low oil circulation rate with POE oil lubrication improves thermal stability and compressor longevity.
- Hermetic Construction: Sealed housing protects internal components from contamination and ensures reliable long-term operation.
- Commercial-Grade Electrical Design: Three-phase power with high LRA tolerance supports stable startup and continuous operation.
The ZR144KCE-TFD-965 delivers the reliability and precision required for high-capacity commercial air conditioning and process cooling compressor applications.
Description
The Copeland ZR144KCE-TFD-965 is a hermetic scroll compressor engineered for comfort and precision cooling applications using R134a, R22, and R407C refrigerants. It delivers 144,000 BTU of cooling capacity with stable performance, low noise, and efficient operation in commercial HVAC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC |
| Part Number | ZR144KCE-TFD-965 |
| Subcategory | Scroll Compressors |
| Compressor Type | Scroll |
| Compressor Housing | Hermetic |
| Cooling Capacity | 144,000 BTU |
| Refrigerant | R134a, R22, R407C |
| Voltage | 380 / 420 / 460 VAC |
| Frequency | 50 / 60 Hz |
| Phase | Three Phase |
| Rated Load Amps (RLA) | 18.6–20 A |
| Locked Rotor Amps (LRA) | 245 A |
| Oil Type | Polyester (POE) |
| Initial Oil Charge | 110 oz |
| Sound Level | 80–85 dBA |
| Discharge Connection Type | Stub |
| Discharge Connection Size (OD) | 7/8 in |
| Suction Line Size (OD) | 1 3/8 in |
| Displacement | 11.65 in³/rev |
| Mass Flow | 1715–2070 lbs/hr |
| Mounting Dimensions | 7.5 x 7.5 x 21.75 in |
| Dimensions (H x L x W) | 21 x 10.38 x 11.23 in |
| Condensing Temperature | 130°F (54.44°C) |
| Return Gas Temperature | 55–65°F (18.33°C) |
| Approvals | UL Recognized |
| Country of Origin | USA |
| Weight | 135 lb |
Information About ZR144KCE-TFD-965
The ZR144KCE-TFD-965 belongs to Copeland’s ZR series of scroll compressors, developed for air conditioning, water chillers, rooftops, and close control unit applications. This series is recognized for replacing traditional reciprocating compressors due to improved efficiency, reduced vibration, and lower operating costs. The compressor supports multiple refrigerants and incorporates axial and radial compliance technology to enhance reliability and efficiency across varying load conditions. Its hermetic scroll design and POE oil lubrication ensure consistent operation and long service life in demanding commercial environments.
Key Features:
- Advanced Scroll Compression Technology: Uses Copeland scroll design with axial and radial compliance to minimize leakage, reduce mechanical stress, and improve overall efficiency.
- High Cooling Capacity: Provides 144,000 BTU of output suitable for medium to large commercial HVAC and precision cooling systems.
- Multi-Refrigerant Compatibility: Supports R134a, R22, and R407C refrigerants, offering flexibility for various system designs and retrofit applications.
- Low Noise and Vibration Levels: Scroll operation significantly reduces sound and vibration compared to reciprocating compressors, enhancing system comfort.
- Efficient Oil Management: Low oil circulation rate with POE oil lubrication improves thermal stability and compressor longevity.
- Hermetic Construction: Sealed housing protects internal components from contamination and ensures reliable long-term operation.
- Commercial-Grade Electrical Design: Three-phase power with high LRA tolerance supports stable startup and continuous operation.
The ZR144KCE-TFD-965 delivers the reliability and precision required for high-capacity commercial air conditioning and process cooling compressor applications.
