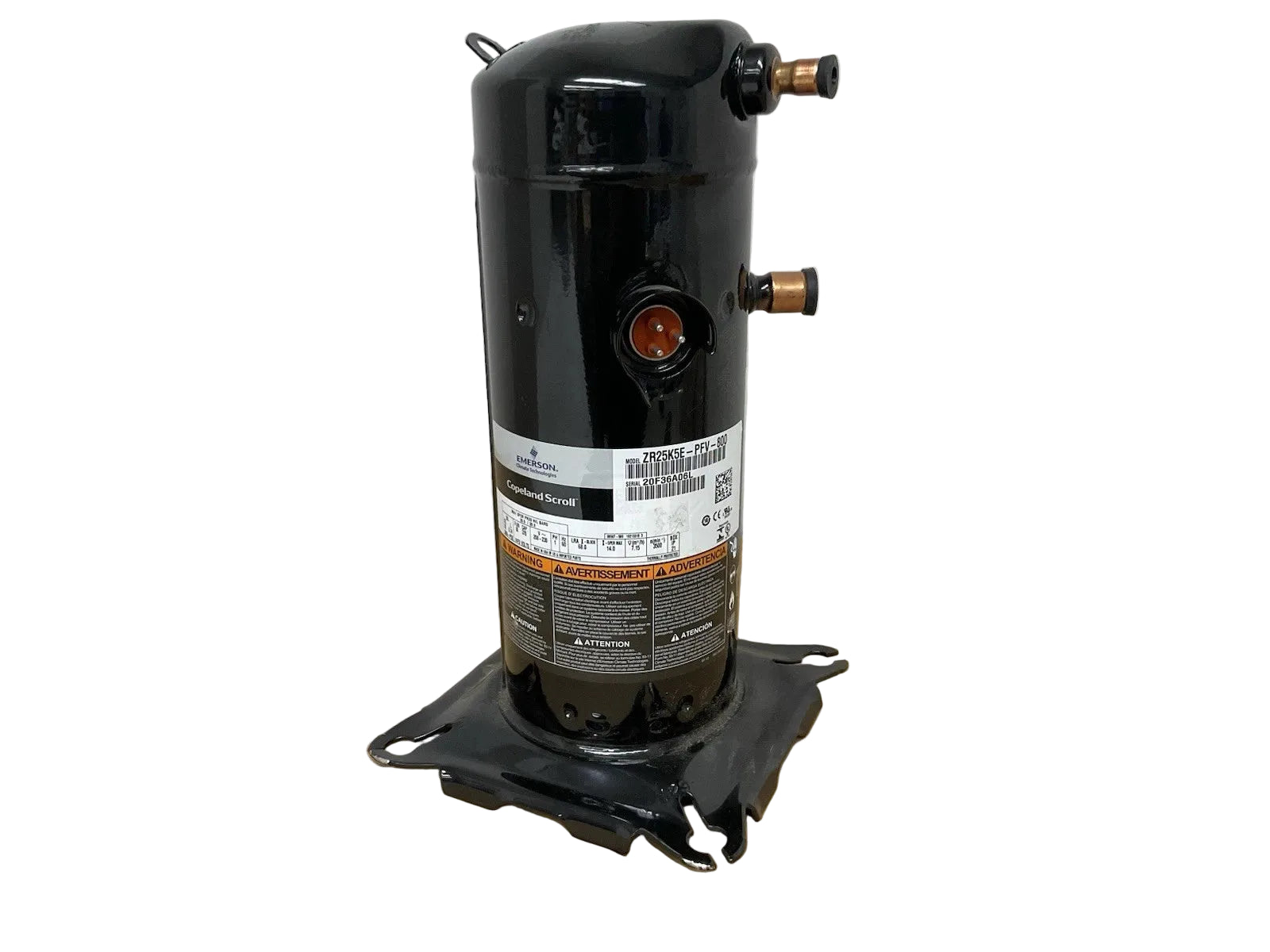

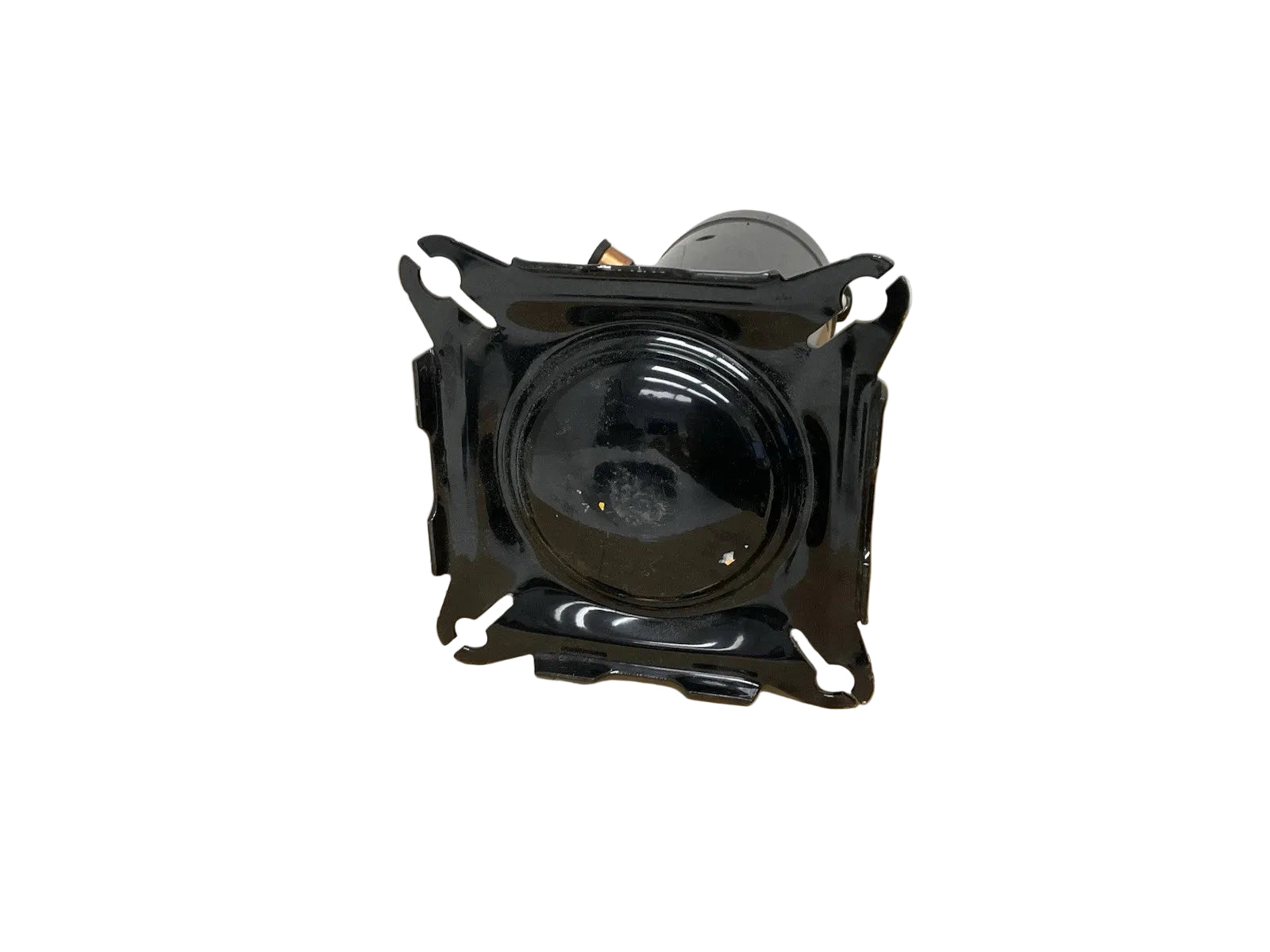

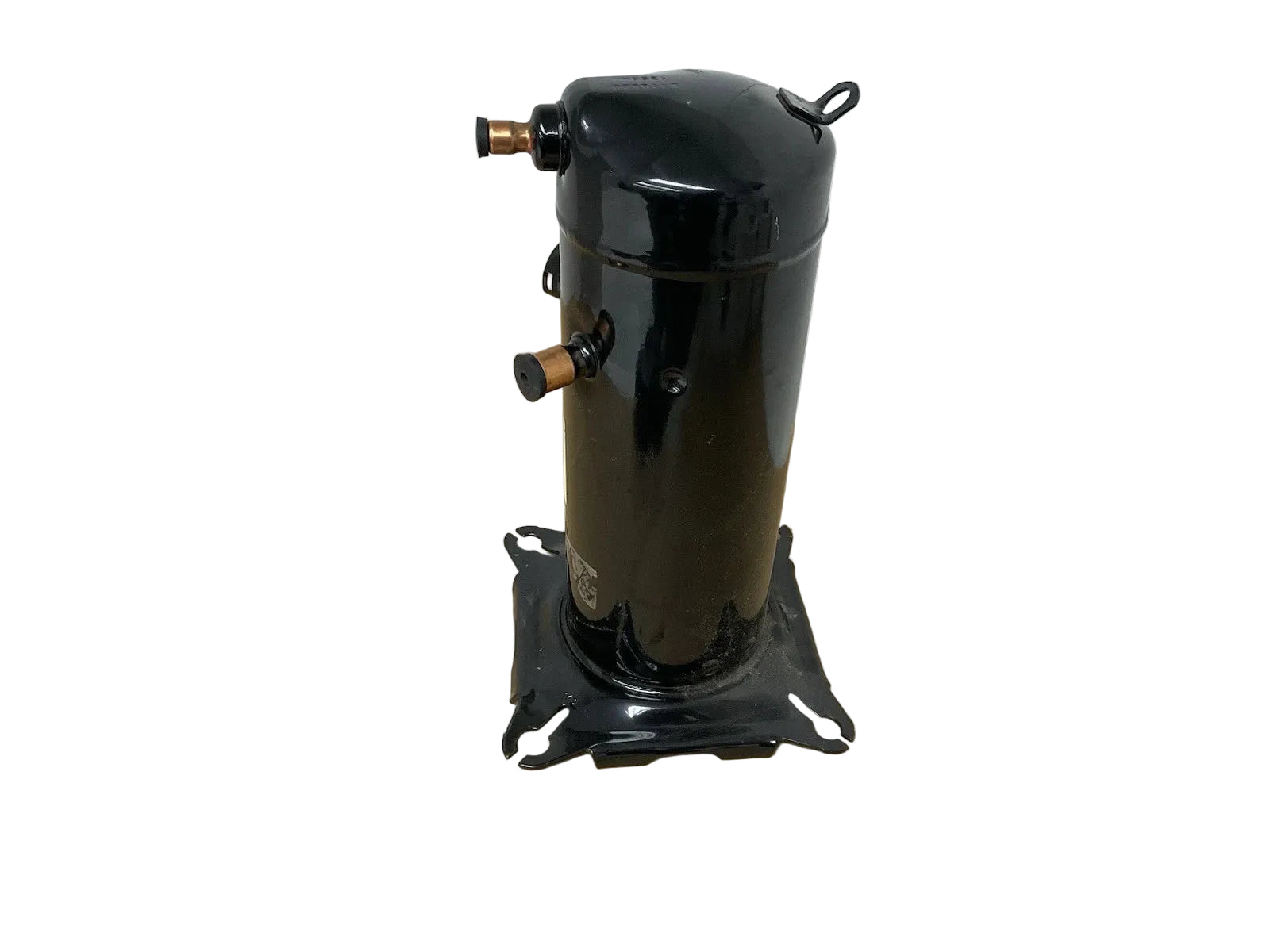

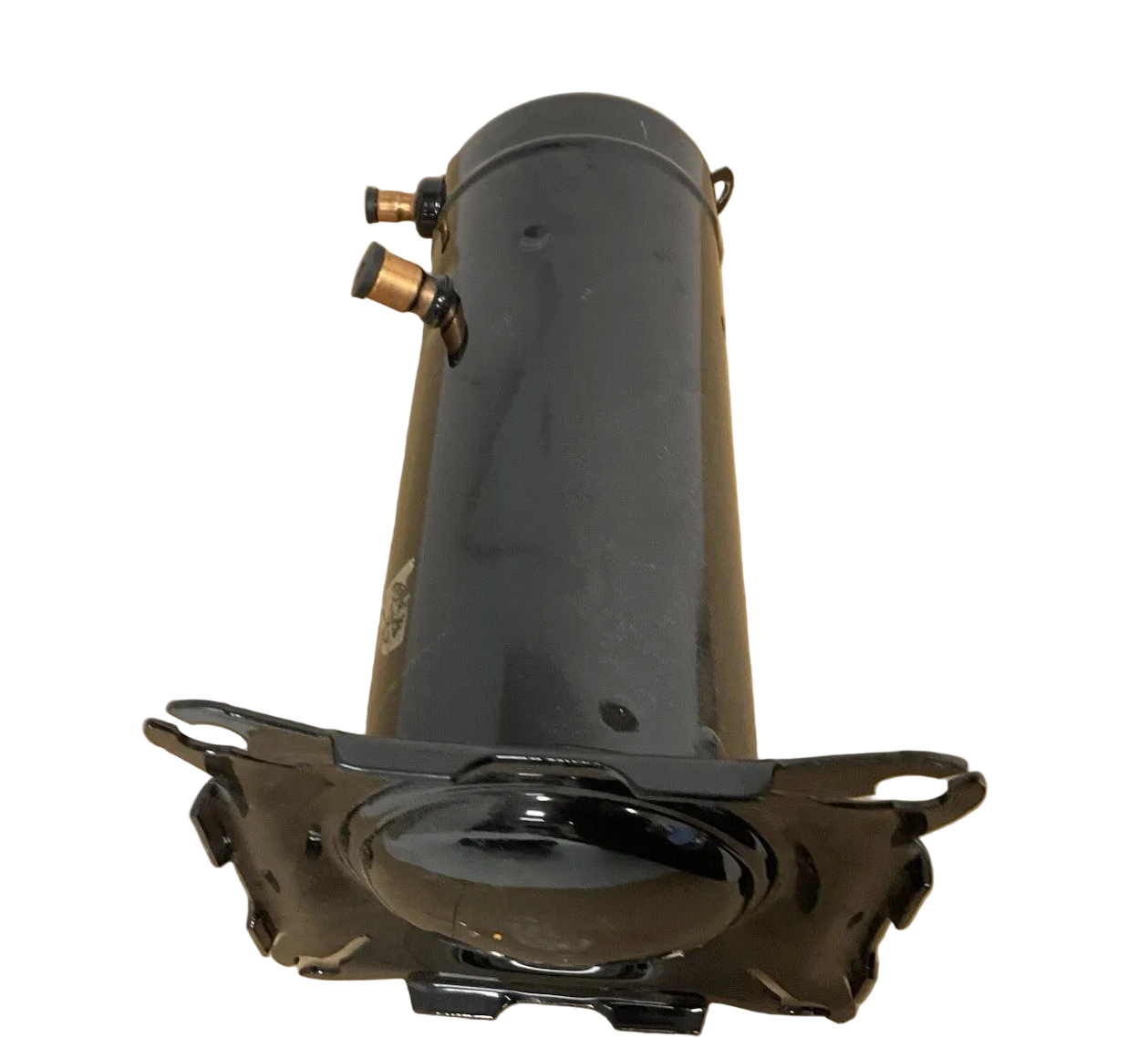

ZR25K5E-PFV-800 | Copeland Scroll Compressor 208–230V 1PH R-407C 24,300 BTU
- Regular price
- $1,232.00
- Sale price
- $1,232.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZR25K5E-PFV-800
Description
The Copeland ZR25K5E-PFV-800 is a hermetic scroll compressor engineered for air conditioning applications requiring efficient and reliable performance. Operating on 208–230V single-phase power, it delivers a nominal capacity of approximately 24,300 BTU using R-407C or R-22 refrigerants. This compressor is built on Copeland’s proven scroll technology platform and is designed as an OEM-quality replacement for compatible HVAC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Copeland |
| Category | HVAC Compressors |
| Part Number | ZR25K5E-PFV-800 |
| Subcategory | Scroll Compressors |
| Compressor Type | Hermetic Scroll |
| Application | Air Conditioning |
| Cooling Capacity | 24,300–32,800 BTU/hr |
| Refrigerant | R-407C, R-22 |
| Voltage | 208–230 VAC |
| Phase | Single Phase |
| Frequency | 50 / 60 Hz |
| Rated Load Amps (RLA) | 13.5–15 A |
| Locked Rotor Amps (LRA) | 68 A |
| Oil Type | POE |
| Initial Oil Charge | 25 oz |
| Suction Line Size | 3/4 in OD |
| Discharge Line Size | 1/2 in OD |
| Sound Level | 68–73 dBA |
| Height | 15.86 in |
| Length | 9.5 in |
| Width | 9.5 in |
| Weight | 50.1 lb |
| Approvals | UL Recognized |
Information About ZR25K5E-PFV-800
The ZR25K5E-PFV-800 is part of Copeland’s legacy ZR series scroll compressors developed for low-pressure air conditioning applications. It is designed to support refrigerants such as R-22 and R-407C while maintaining high efficiency and stable operation. The compressor features a compact hermetic design with significantly fewer moving parts than traditional reciprocating compressors, contributing to enhanced reliability and reduced noise. Its construction supports continuous-duty operation in residential and light commercial HVAC environments.
Key Features:
- Copeland Scroll Technology: Provides smooth compression with reduced mechanical complexity and wear.
- Air Conditioning Application: Designed specifically for AC and heat pump systems.
- R-407C and R-22 Compatibility: Supports low-pressure refrigerant applications.
- Single-Phase Power Operation: Operates on 208–230V, 1-phase electrical supply.
- High Energy Efficiency: Achieves EER ratings up to 10.3 for improved system performance.
- Hermetic Compressor Housing: Sealed design enhances durability and minimizes maintenance.
- Low Noise and Vibration: Scroll design delivers quieter operation than reciprocating compressors.
- Liquid Handling Capability: Axial and radial compliance protects against liquid refrigerant damage.
- Compact and Lightweight Design: Simplifies installation and servicing.
The ZR25K5E-PFV-800 delivers the reliability and precision required for scroll compressor operation in modern air conditioning systems.
