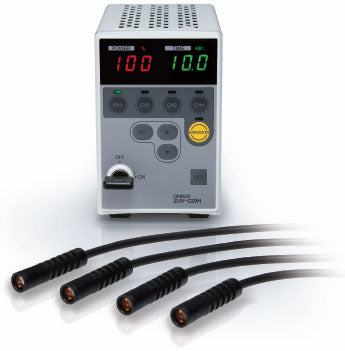

ZUV-C20H | Omron UV-LED Smart Curing System
- Regular price
- $1,755.00
- Sale price
- $1,755.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ZUV-C20H
Description
The ZUV-C20H is a value-type UV-LED controller designed by Omron for efficient, consistent, and safe curing applications. It supports constant irradiation with adjustable intensity and duration, all in a compact and fanless format ideal for quiet environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
Safety Systems
|
| Part Number | ZUV-C20H |
| Subcategory | Light Curtain |
| Irradiation Method | Constant irradiation only |
| Power Adjustment | 0% to 100%, up to 99.9 s or unlimited |
| Cumulative Irradiation | 100-hour unit display |
| Input Signals | Emergency stop, UV start/stop (4 channels) |
| Output Signals | Ready, error, operating life (all/4 channels) |
| I/O Ports | Terminal block only (no RS-232C/USB) |
| Cooling Method | Natural air cooling (no fan) |
| Power Supply Voltage | 100–240 VAC ±10%, 50/60 Hz / 19 VDC ±5% |
| Current Consumption | 1.4 A (53 W) |
| Operating Temperature | 5°C to 35°C |
| Storage Temperature | -10°C to 60°C |
| Ambient Humidity | 30% to 85% RH (non-condensing) |
| Vibration Resistance | 10–150 Hz, 50 m/s², 0.35 mm amplitude |
| Shock Resistance | 150 m/s² in 6 directions |
| Protection Rating | IP20 (IEC 60529) |
| Material | Polycarbonate, SECC, SUS, Aluminum |
| Weight | 1,800g |
Information About ZUV-C20H
The ZUV-C20H is part of Omron’s smart UV-LED curing systems, offering streamlined integration into production lines where space and simplicity are critical. It delivers constant UV irradiation with power controllable from 0% to 100% and supports exposure durations up to 99.9 seconds or continuous mode. This model does not support pattern irradiation or memory banks but provides cumulative irradiation tracking in 100-hour units for maintenance awareness.
Inputs and outputs are handled via terminal blocks and include signals for emergency stop, UV start/stop, error status, and system readiness. With a compact design and natural air cooling, the ZUV-C20H eliminates the need for internal fans, enhancing durability and reducing noise. Operating from 100–240 VAC (or 19 VDC via adapter), it offers flexible power options and has robust resistance to shock and vibration in industrial settings.
Key Features:
- Constant Irradiation Control: Adjustable UV power (0–100%) with up to 99.9 s exposure or unlimited mode.
- Terminal Block I/O: Includes emergency stop, UV start/stop, ready, error, and operating life outputs.
- Natural Air Cooling: No fan required, making it maintenance-friendly and quiet in operation.
- Multi-Voltage Power Input: Supports 100–240 VAC or 19 VDC input via adapter.
- Shock and Vibration Resistance: 150 m/s² shock resistance, and 10–150 Hz vibration tolerance in 6 directions.
- Ambient Performance: Operates in 5–35°C, storage up to 60°C, and 30–85% RH non-condensing conditions.
- Cumulative Timer: Tracks total irradiation time in 100-hour increments for life tracking.
- Durable Materials: Constructed from polycarbonate, SECC, SUS, and aluminum for industrial longevity.
The ZUV-C20H offers dependable performance for UV curing with compact and robust construction. Its straightforward interface and flexible input options make it an excellent fit for value-driven production systems.
