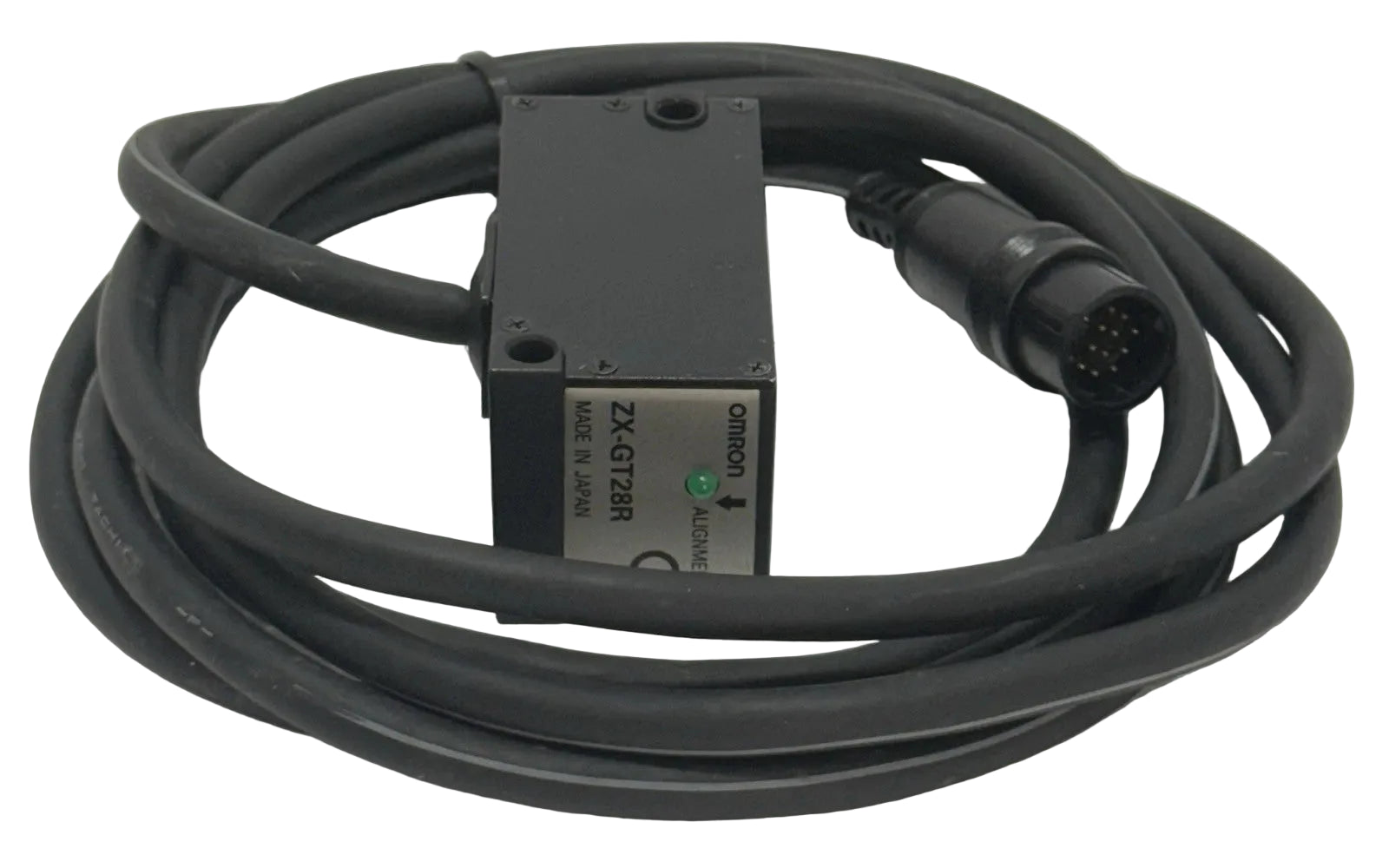

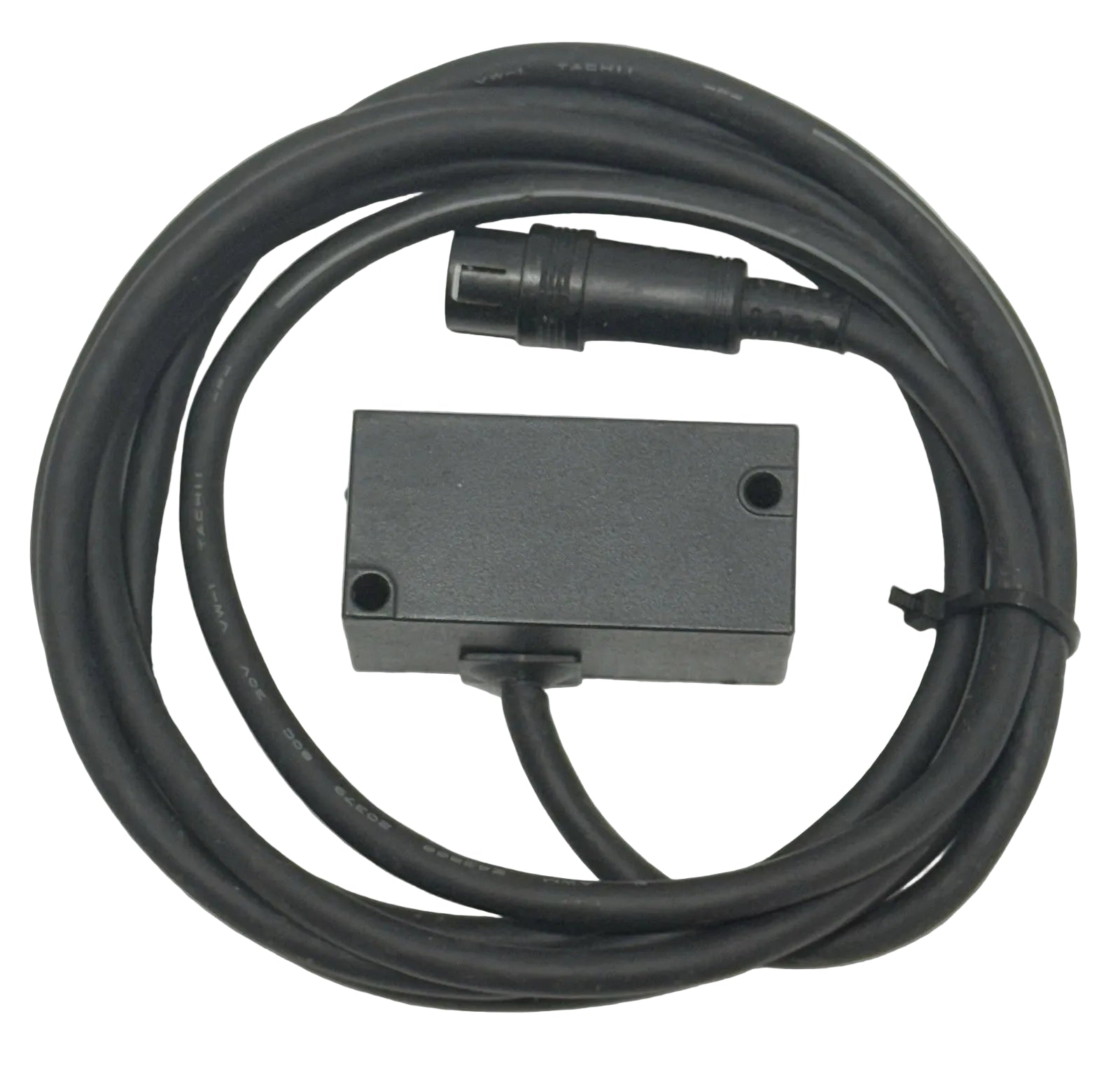

ZX-GT28R | Omron Laser Displacement Sensor Receiver 28 mm Measuring Width
- Regular price
- $1,232.00
- Sale price
- $1,232.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZX-GT28R
Description
The Omron ZX-GT28R is a high-precision laser displacement sensor receiver designed for accurate non-contact measurement in industrial automation and inspection systems. It uses a visible semiconductor laser to measure displacement and dimensional changes with micrometer-level resolution. This sensor is commonly applied in quality control, positioning, and thickness measurement applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors |
| Part Number | ZX-GT28R |
| Subcategory | Laser Displacement Sensor |
| Series | ZX-GT Series |
| Sensor Type | Laser Displacement Sensor (Receiver) |
| Output Type | NPN Open-Collector |
| Light Source | Visible semiconductor laser diode, 650 nm |
| Laser Classification | Class 1 (IEC/EN 60825-1), Class II (FDA) |
| Measuring Width | 28 mm |
| Sensing Distance | 0 to 500 mm |
| Minimum Detectable Object | 0.5 mm diameter |
| Linearity | ±0.1% F.S. |
| Resolution | 10 μm (16-value averaging) |
| Power Supply Voltage | 24 VDC +10% / −15% |
| Power Consumption | 30 mA max |
| Degree of Protection | IP40 |
| Ambient Temperature | Operating: 0 to 40 °C |
| Housing Material | Aluminum die-cast with glass lens |
| Cable Length | 2 m |
| Weight | 1.21 lbs |
Information About ZX-GT28R
The ZX-GT28R is part of Omron’s ZX-GT Series of laser displacement sensors engineered for stable, high-speed measurement performance. It features a separate receiver configuration designed to work with a compatible laser emitter for precise alignment and measurement accuracy. The unit supports NPN output and integrates advanced optical sensing technology for consistent results across varying distances. Its rugged aluminum housing and IP40-rated protection make it suitable for factory automation and inspection environments.
Key Features:
- Laser Displacement Measurement: Provides non-contact, high-accuracy distance and position sensing.
- 28 mm Measuring Width: Optimized for precision measurement across a defined sensing area.
- High Resolution Output: Achieves up to 10 μm resolution with averaged process values.
- Wide Sensing Range: Supports measurement distances from 0 to 500 mm.
- Visible Laser Source: Uses a 650 nm semiconductor laser compliant with Class 1 safety standards.
- NPN Output Configuration: Compatible with standard industrial control systems.
- Rugged Construction: Aluminum die-cast housing with glass optics for durability.
The ZX-GT28R delivers the reliability and precision required for industrial measurement and inspection applications.
