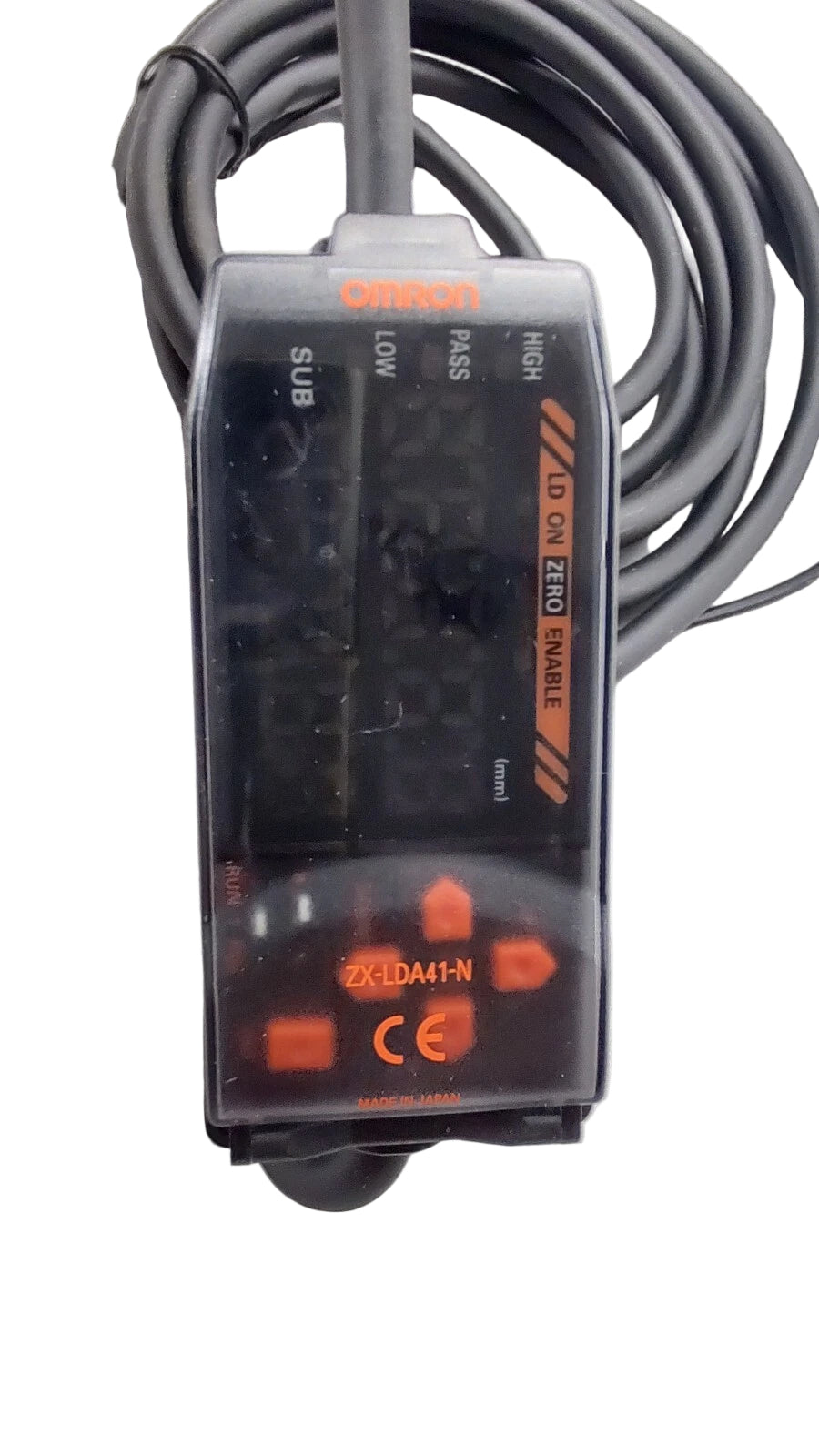

ZX-LDA41-N | Omron Smart Sensor Amplifier, PNP Output, 12–24 VDC, DIN-Rail Mount
- Regular price
- $854.00
- Sale price
- $854.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ZX-LDA41-N
Description
The Omron ZX-LDA41-N is a smart sensor amplifier unit designed for high-precision displacement and position measurement in industrial automation systems. Operating on 12–24 VDC, this PNP-output amplifier integrates seamlessly with Omron ZX-LD laser sensor heads, delivering fast and stable analog or digital signal processing for precise measurement applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors |
| Part Number | ZX-LDA41-N |
| Subcategory | Smart Sensor Amplifier |
| Series | ZX-LDA Series |
| Sensor Type | Amplifier unit for ZX-LD sensor heads |
| Output Type | PNP |
| Sensing Method | Laser displacement (via ZX-LD sensor) |
| Power Supply | 12–24 VDC ±10% |
| Connection Method | Pre-wired, 2 m cable |
| Housing Material | PBT (polybutylene terephthalate) |
| Mounting Method | DIN rail mount |
| Operating Indicator | LED status indicators |
| Response Speed | High-speed (model dependent, typically sub-millisecond) |
| PLC Compatibility | Omron PLC systems (standard interface) |
| Mutual Interference Prevention | Supported (multiple sensor head operation) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | –20°C to +65°C |
| Protection Rating | IP40 (amplifier only) |
| Application | Displacement and position measurement, precision inspection |
| Compliance | CE, RoHS |
| Weight | Approx. 150 g |
Information About ZX-LDA41-N
The ZX-LDA41-N belongs to Omron’s ZX-LDA series, a family of smart laser displacement amplifiers optimized for precision sensing, measurement, and inspection tasks. It serves as the core amplifier unit for ZX-LD sensor heads, converting optical displacement data into accurate electronic outputs for control and monitoring systems. Featuring a PNP output configuration, DIN-rail mount design, and durable PBT housing, the ZX-LDA41-N provides superior reliability in demanding environments. The unit supports high-speed response, stable detection, and compatibility with Omron PLCs, making it ideal for in-line inspection, alignment, and surface profiling.
Key Features:
- Smart Amplifier Design: Interfaces with ZX-LD series laser heads for precision displacement and position measurement.
- PNP Output Type: Provides reliable positive switching signals compatible with Omron PLCs.
- DIN-Rail Mounting: Enables quick and secure installation within control panels.
- Stable Signal Processing: Ensures accurate, repeatable measurement performance in dynamic conditions.
- Compact and Durable Housing: PBT body offers resistance to vibration, oil, and industrial contaminants.
- Flexible Power Range: Operates on 12–24 VDC ±10%, compatible with standard industrial power supplies.
- Pre-Wired Connection: Factory-prepared 2 m cable for quick setup and secure connections.
- High-Speed Communication: Supports synchronization with multiple amplifier units for multi-point measurement.
The ZX-LDA41-N delivers the reliability and precision required for advanced displacement sensing and dimensional measurement in industrial automation systems.
