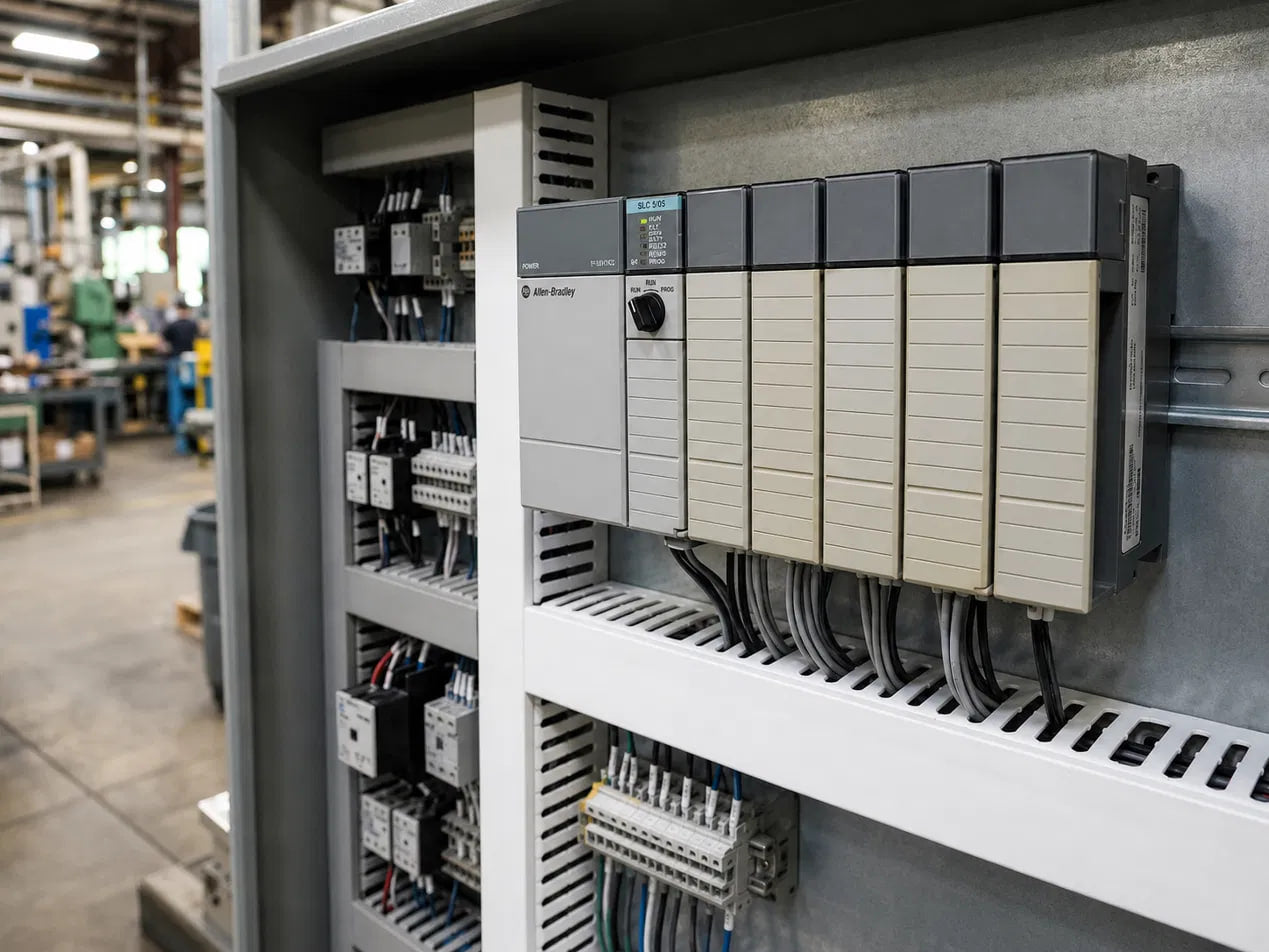

Is the SLC 500 obsolete? The answer depends on what is in your I/O slots

The SLC 500 question I get asked is usually the wrong one. People want to know whether the platform is dead. What actually sets the size of the project is whether the modules in their chassis have anywhere to go, and those are two different questions with two different answers.

Rockwell publishes the second answer in a table, and it is not what the headline recommendation suggests. On the documented path to Compact 5000 I/O, twenty-eight SLC modules have no replacement listed at all. Some of them do have one on the older Compact I/O path, which is the opposite of what most people would guess. Here is the actual lifecycle picture, and what changes depending on which direction you take.

The short answer

Yes, in part. That “in part” is the whole reason this keeps getting argued about.

The controllers went first, and they went in stages. Rockwell's hardware migration reference, publication 1746-RM003, dates the discontinuation of the SLC 5/01 and SLC 5/02 to January 2017. The current SLC 500 product page adds the 5/03 8K to that list and states plainly that some bulletin numbers are discontinued and no longer available for sale, with CompactLogix 5380 as the recommended migration target.

What none of that says is that the platform died on one particular day. There is no single date. Lifecycle state is assigned per catalog number, across four states: Active, Active Mature, End of Life, and Discontinued. A 5/05 processor and a 5/01 processor in the same panel can sit in different ones.

So start there. Pull the actual part numbers off the rack and run each one through Rockwell's Product Lifecycle Status tool. It takes a few minutes, and it is the only version of this answer that applies to your machine. I have seen a migration scoped against a rumor when a five-minute lookup would have changed the plan.

While we are here, an SLC 500 is not a PLC-5

These two get mixed up constantly, often in the same conversation as the obsolescence question, and it matters because the upgrade paths do not overlap.

A PLC-5 is a 1771 chassis with 1785 processors, programmed in RSLogix 5. Move across to the SLC 500 and you get a 1746 chassis, 1747 processors, and RSLogix 500. Different I/O, different networks, different destination: PLC-5 systems generally head toward ControlLogix, SLC 500 systems toward CompactLogix. If a migration quote lands on your desk and the part numbers start with 1771, it is not for your system.

The controller swap is the easy part

Replacing the processor is the most predictable piece of the whole job, and the selection work is already done for you. Table 1 and Table 2 of 1746-RM003 map every SLC processor to a recommended CompactLogix on both paths.



The 1747-L543, the 64K SLC 5/04 processor that needs the larger CompactLogix



Two things in that table are worth stopping on.

The first is that almost every SLC processor lands on the same 5069-L306ER. The 64K units are the exception: the 5/04 64K and the 5/05 64K both step up to a 5069-L310ER, and that is not an arbitrary choice. The programming migration guide, publication 5069-AP001, gives the rule of thumb. A full 32K SLC program converts to roughly 360 KB in Logix, and a full 64K SLC program only fits in a controller with at least about 800 KB. The L306ER has 600 KB. It does not fit. The L310ER has 1 MB.

The second is the small print, which differs between the paths. The 5380 recommendations exclude Motion applications. On the 5370 side it is Motion and Safety both. If you need safety on the controller itself, any of the recommended 5380s can be stepped up to a Compact GuardLogix 5380 at SIL 2 or SIL 3.

Where migrations actually stall

The I/O decides whether this project stays simple.

Table 4 of 1746-RM003 lists a recommended Compact 5000 replacement for every 1746 and 1747 module. Twenty-eight of those rows say No replacement. Table 3 does the same job for the Compact I/O path and twenty-seven rows say it there, and they are not the same modules.

That mismatch is the part almost nobody checks, and it can flip the platform decision:

·       1747-SDN DeviceNet scanner: no replacement on the Compact 5000 path. On the Compact I/O path it maps to a 1769-SDN.

·       1746-IG16 and 1746-OG16 TTL I/O: nothing on the Compact 5000 path, direct 1769-IG16 and 1769-OG16 equivalents on the older one.

·       1746-ITV16 fast response DC input: no Compact 5000 equivalent, maps to a 1769-IQ16F.

·       Running the other way, the 1746-HSCE high-speed counter has nothing on the Compact I/O path but does map to a 5069-HSC2XOB4.

Read that backwards and it says something slightly awkward. For a rack with DeviceNet or TTL I/O in it, the newer CompactLogix 5380 platform is the worse documented fit, and the 5370 is the one with coverage. That is worth knowing before somebody commits to the newest thing on the strength of the name.

Then there is the group with nothing on either path. The scanners bite hardest: 1747-SN remote I/O scanner, 1747-SCNR ControlNet scanner. Alongside them, 1746-BAS and 1746-BAS-T, the 1746-BLM blow molding and 1746-BTM barrel temperature modules, 1746-HS motion, 1746-HSTP1 stepper, 1746-QS, 1746-QV, the 1746-SIM simulator, and a run of discrete cards including 1746-IN16, 1746-IC16, 1746-IH16, 1746-OAP12, 1746-OB6EI and 1746-OVP16.

1747-SDN, the module with no listed replacement on the Compact 5000 migration path



Here is the distinction worth remembering, because it decides how much of the network you have to redesign. The scanners have no path. The adapters do. 5069-AP001 spells it out: because the 1747-SCNR and 1747-SN are not supported, they come out of the converted system entirely, while the 1747-ACNR and 1747-ASB adapters they were talking to get replaced with a 1747-AENTR and scanned directly by the Logix controller. The remote chassis survive. The thing that used to scan them does not.

DeviceNet earns its own paragraph. The 1747-SDN is not supported by the 1747-AENTR, so it has to be replaced with a different scanner: 5069-AP001 points at a 1756-DNB, a 1769-SDN, or a 1788-EN2DNR depending on the application and the processor. And at the time that guide was published in August 2020, it stated that the CompactLogix 5380 had no module supporting DeviceNet at all, and named the 1788-EN2DN as the way to connect a 5380 to DeviceNet devices. Confirm that against current product data before building a bill of materials on it, but plan for a bridge rather than a slot.

In all of these cases the data movement is your problem. Those scanners put their data into a combination of I1, O0, M1 and M0 files, and after the swap it has to be moved or copied into the new Logix tags. Rockwell puts the exact process outside the scope of the document and says to expect additional work and time, which is roughly as close to a warning as a migration guide gets.

One more thing before anyone prices the I/O. The recommended replacements are not all one for one on channel count, and the table only flags some of them. A 1746-NI16I or NI16V carries sixteen analog inputs; the listed replacement, 5069-IF8, has eight. Same story over on temperature, where eight RTD channels on a 1746-NR8 and eight thermocouple channels on a 1746-NT8 both land on a 5069-IY4 with four. Two cases are footnoted properly, 1746-IB32 to a pair of 5069-IB16 and 1746-OBP16 to a pair of 5069-OB8. The rest you catch by counting. Count them.

Keeping the I/O you already have

There is a middle option, and on a line that has to keep running it is usually the right one.

Studio 5000 Logix Designer version 21 and later lets a Logix controller own the existing SLC I/O. You pull the SLC processor or the adapter and put a 1747-AENTR in its place, and the 1746 modules join the Logix I/O tree with no changes to the modules themselves. That is what makes a phased cutover possible: new controller now, I/O chassis later, one rack at a time, and a way back if commissioning goes sideways.

Two details will cost you an afternoon if you miss them. The supported modules need new EDS files, which RSLinx version 2.59 installs, and the correct files carry a ModDate of 2011 while the wrong older ones show 1999. Check the ModDate. Separately, the 1747-AENTR EDS file that RSLinx 2.59 installs is not the current one and has to be updated to version 2.3.

Third-party SLC I/O is possible but conditional. Generally it is supported if the module uses fewer than 250 integer words and no G-files, and even then a new EDS file has to be developed for it. Modules that need G-file configuration cannot sit in a remote rack to a Logix controller at all.

If the I/O does eventually move to Compact 5000, the 1492 conversion system keeps the field wiring where it is. A 1746-A7 chassis maps to a 1492-CH1746-7, an A10 to a 1492-CH1746-10, an A13 to a 1492-CH1746-13, and each module family gets its own conversion module, a 1492-CM1746-M01 for the 120V AC and 24V DC sinking inputs and so on down the list. Swapping a rack at a time without disturbing terminations is the part that keeps the downtime honest.

What the code conversion gets wrong

The RSLogix Project Migrator does the bulk of the ladder work, and Rockwell is upfront that it does not finish the job. It produces a syntactically correct import file in which the original intent can still be lost, because the rules for precedence, indexed addressing and I/O addressing are not the same on both sides. Where a translation fails, the tool writes the error into the rung it happened on, which at least tells you where to look.

Addressing changes shape. Data files become arrays: N7:500 becomes N7[500], T4:6 becomes T4[6], C5:0 becomes C5[0]. I/O gets longer. I:2/3 turns into Local:2:I.Pt03.Data on a local module, or the adapter name in place of Local on a remote one. On a CompactLogix 5380 the I/O data is grouped by channel rather than by word by default, and each point carries Fault and Uncertain status alongside the value.

The timer behavior is the one I would check first. An SLC 500 supports only a 0.01 or 1 second time base. Logix works in milliseconds, so the conversion multiplies timer presets by ten, and a preset of 32767 comes out the other side as 327670. Ordinary references to that timer get rescaled automatically. What does not get rescaled is any rung addressing a specific bit inside Timer.PRE or Timer.ACC. Those come through with the scaling wrong, and the only fix is by hand.



Checking converted logic on the real machine, the step nobody skips



The other known trouble spots come straight from the guide. MSG instructions do not all convert cleanly and their data and path need verifying afterward. Serial port instructions, block transfers, FBC and PID can convert and still not behave the way they used to. If the program has tuned PID loops in it, budget real time for them rather than assuming the numbers carried over.

Scan time deserves a thought too. Expect the program scan to drop by 50 to 80 percent after conversion. That sounds like nothing but good news, and mostly it is. But a process that was quietly relying on the old scan rate can be upset by a faster one, and I/O scanning can end up slower than it was even while the program scan gets quicker.

If you are staying on it a while longer

Plenty of these systems will keep running for years, and there is nothing wrong with that as long as the decision is deliberate and the spares are handled.

The battery is the thing I would not gamble on. The SLC uses a 1747-BA, and the replacement procedure is not the same across the family: 1747-UM011 gives the 5/01 and 5/02 procedure separately from the one for the 5/03, 5/04 and 5/05. Before a battery goes anywhere near a live processor, get the program off it and keep a copy somewhere that is not the processor. A flash memory module such as a 1747-M11 or 1747-M13 does that in hardware. The failure mode is not subtle: a flat battery on a processor whose program exists nowhere else, and a plant standing still while somebody tries to track down whoever wrote it.



1747-M11, a copy of the program in hardware, not just on the battery



For faults, the codes live in status word S:6, and they are documented in the SLC 500 instruction set reference, publication 1747-RM001, which covers all of the status words and bits alongside the instruction set. That is the document to have open.

Power is worth remembering when a rack will not come up at all. The SLC power supply sits in the leftmost slot and feeds the processor and every module through the backplane, so a marginal supply shows up as a system-wide problem rather than a module problem. Most 1746 input and output modules take what they need from the backplane, but relay and AC output modules want additional power at the terminal block, and that distinction has sent plenty of people looking in the wrong place.

Frequently asked questions

Is the SLC 500 obsolete?

In part. The SLC 5/01, 5/02 and 5/03 8K controllers are discontinued and no longer sold, and Rockwell recommends migrating to CompactLogix 5380. Other catalog numbers in the family sit in other lifecycle states. Check each part number individually on Rockwell's Product Lifecycle Status tool instead of treating the platform as one status.

Which CompactLogix replaces an SLC 5/04?

Per 1746-RM003, a 1747-L541 or 1747-L542 maps to a 5069-L306ER, and the 64K 1747-L543 maps to a 5069-L310ER. On the 5370 path those become a 1769-L24ER-QB1B and a 1769-L30ER. The 64K units need the larger controller because a full 64K SLC program needs roughly 800 KB of Logix memory once converted.

Can a CompactLogix 5380 use my existing SLC I/O?

Yes. Studio 5000 Logix Designer version 21 and later supports it. Replace the SLC processor or adapter with a 1747-AENTR and the supported 1746 modules appear in the Logix I/O tree. The modules themselves do not change, but they need the EDS files that ship with RSLinx 2.59, and the AENTR's own EDS file has to be at version 2.3.

What replaces a 1747-SDN DeviceNet scanner?

Nothing on the Compact 5000 I/O path; 1746-RM003 lists no replacement for it. 5069-AP001 recommends a 1756-DNB, a 1769-SDN or a 1788-EN2DNR instead, and names a 1788-EN2DN for connecting a CompactLogix 5380 to DeviceNet devices. The Compact I/O path does list a direct 1769-SDN equivalent.

Why did my timer presets change after the conversion?

The time base changed. An SLC runs timers on a 0.01 or 1 second base and Logix runs on 1 ms, so the migrator multiplies presets by ten. References get corrected automatically except where a rung addresses a bit inside Timer.PRE or Timer.ACC, and those have to be fixed manually.

Is it cheaper to keep the SLC 500 running than to migrate?

It depends almost entirely on what is in the I/O slots. A rack of ordinary discrete and analog modules has a documented replacement for nearly everything and converts predictably. Put a remote I/O or ControlNet scanner in that same rack and it does not, which turns a controller swap into a network redesign. Price both against your own module list, not against a generic estimate.
