Part #: 2090-SR040-18 Manufactured by: Allen-Bradley
Regular price
$2,419.00
Sale price
$2,419.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview

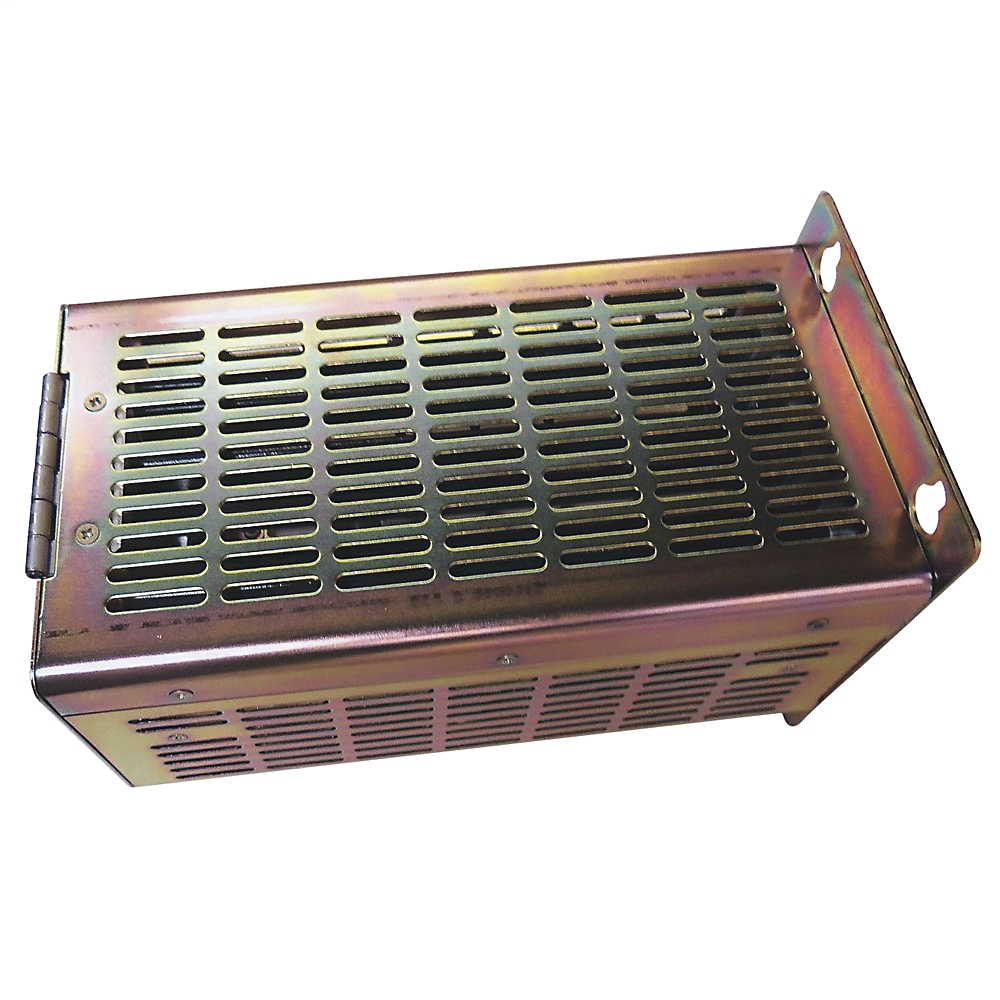

Allen-Bradley 2090-SR040-18 Shunt Resistor
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 2090-SR040-18
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 2090-SR040-18

Description / Specifications

Description

The Allen-Bradley 2090-SR040-18 Ultra 3000 servo passive shunt resistor module is made for the Ultra 3000 drive system. This externally-mounted shunt resistor module has a power rating of 800 Watts, a voltage rating of 460 Volts AC, and a peak current rating of 20 Amps.



Technical Specifications



Brand Allen-Bradley
Category Components
Part Number 2090-SR040-18
Subcategory Resistor
Series 2090 Cables
Description Ultra 3000 Servo Passive Shunt Resistor Modules
Operating Voltage 460 Volts AC
Current Rating 20.0 Amps (Peak)
Power Rating 800 Watts
Operating Temperature 0 to 50 degrees Celsius
External Power No
Mounting Type External Mount





Information About 2090-SR040-18

The 2090-SR040-18 Ultra 3000 servo passive shunt resistor module is a shunt resistor module from the Allen-Bradley 2090 Series of external shunt resistor modules that is designed to dissipate the regenerative energy developed in the drive’s DC Bus. This module is installed on the drive within the cabinet and it remains passive unless it is activated by the drive’s transistor. The 2090-SR040-18 module is only activated via transistor when the system load requires power dissipation beyond the ability and capacity of the drive’s internal shunt resistor. It is recommended to properly size the external shunt module before installation, and a properly sized shunt module helps to regulate excessive “Bus voltage” by moving the current through a resistor, which dissipates the current as heat and thus minimizes the faults caused by excess Bus voltage.

The 2090-SR040-18 shunt resistor module is compatible with the 230 Volts AC and 460 Volts AC rated Allen-Bradley Ultra 3000 servo drives like the 2098-xxx-HV100 drive, and it has a rated resistance range of 40 to 49 Ohms. The 2090-SR040-18 module has a peak power rating of 16 kilowatts and a peak current rating of 20 Amps. This shunt resistor module has a power rating of 1800 Watts (continuous), and it comes with a pre-installed, field-replaceable 6.3 Amps rated Bussman fuse known as the FWP-6.3A14F fuse.  The 2090-SR040-18 module is mounted externally on the drive (within a subpanel or a standard NEMA Type 4 enclosure) by using the factory-supplied M6 (0.25 inches) fastening bolts, and it is wired to the drive by using a shielded, high-temperature (75 degrees Celsius, 600V), 8 AWG copper wire. The 2090-SR040-18 module has an operating ambient temperature range of 0 to 50 degrees Celsius, and it has an average shipping weight of 8.6 kilograms (19 pounds).





Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
