1734-IB8S: what the LEDs mean, the 2020-2021 batch, and how to swap one

October 13, 2026

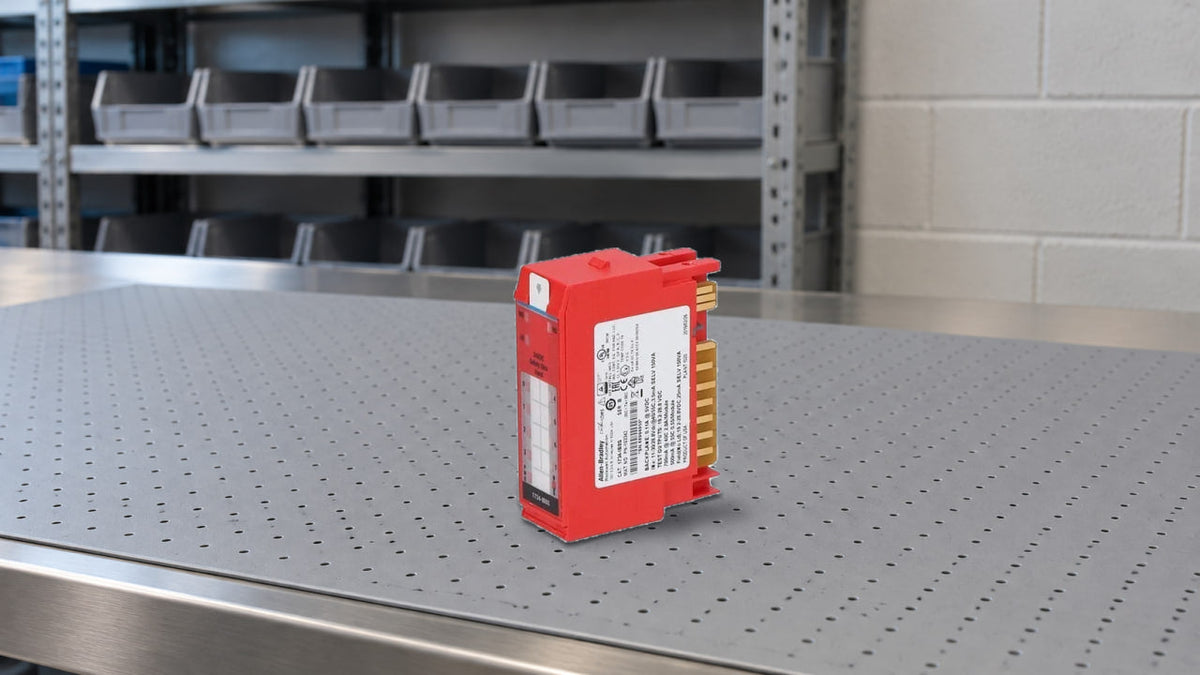

Red 1734-IB8S safety input module standing on a steel workbench in front of warehouse shelving
Published on  Updated on

When somebody calls me about a 1734-IB8S, it's nearly always the same story. The E-stop circuit drops out with nobody near a button, the GuardLogix logs a connection fault, somebody resets it, and the line runs fine until it doesn't. Usually that's wiring, the network, or a setting. Sometimes it's the module itself, from a production run Rockwell already flagged, and nobody turned it sideways to read the label.

So here's the order I go in. What the module needs to earn its rating, what each LED says, the half-minute date check, and a swap that doesn't turn into an afternoon of fighting ownership.

The rating comes from the wiring

A 1734-IB8S can sit in a SIL 3 / PLe circuit. It can also sit in a Category 1 circuit. Same module, same terminals.

Dual channel gets you Category 3 and 4, up to PLe / SIL CL3. Category 4 with simple devices typically needs both inputs on Safety Pulse Test, while Category 3 can be reached without the test pulse, as the table shows. One channel with pulse testing stops at Category 2, PLd / SIL CL2. Where common devices land:

Device

How it's wired

Test pulse

Category

Push button

Between 24V DC and I0

No

1

Push button

Between T0 and I0, T0 set to pulse test

Yes

2

E-stop or door switch, two contacts

Both contacts fed from 24V DC, or from T0 set as power supply, to I0 and I1

No

3

E-stop or door switch, two contacts

I0 fed from T0, I1 fed from T1

Yes

4

Light curtain

OSSD1 to I0, OSSD2 to I1, power supply commons tied together

No

3 or 4, depends on the curtain

Β

Category 4 gives each channel its own test output. Hang both contacts off T0 and both channels carry the identical pulse, so a short between them looks healthy. The pulse is typically 525 Β΅s every 144 ms, and it also catches a channel shorted to 24V and an open wire.

1734-IB8S wiring: E-stop on I0 and I1 with T0 and T1M pulse test, door switch on I2 and I3 powered from T2 and T3M

Category 4 needs each E-stop channel on its own test output. The door switch is fed from T2 and T3M set as power supplies, which makes it Category 3.

What I check every time I open somebody else's configuration:

Β·Β Β Β Β Β Β  Dual-channel pairs start on an even input: 0/1, 2/3, 4/5, 6/7.

Β·Β Β Β Β Β Β  On a GuardLogix the module inputs stay at Single and the safety instruction does the dual-channel check. Rockwell says not to use the module's own dual-channel mode there, and I still find racks with both turned on.

Β·Β Β Β Β Β Β  A light curtain's OSSDs check themselves. That input goes to Safety, not Safety Pulse Test.

Β·Β Β Β Β Β Β  Discrepancy time is 10 to 65,530 ms in 10 ms steps. On and off delays run 0 to 126 ms in 6 ms steps.

Β·Β Β Β Β Β Β  A test output set to Standard is a plain output. Nothing safety goes on it.

Curtain traps are in the safety light curtain wiring diagram piece, and module versus standalone relay in safety PLC or safety relay.

Numbers for the drawing

Item

1734-IB8S

Inputs

8 safety inputs, 24V DC

Input range

11-30V DC at 40 Β°C, 11-28.8V DC at 55 Β°C, 3.5 mA

Test outputs

4: T0, T1M, T2, T3M

Backplane current

125 mA at 5V DC

Field power

19.2-28.8V DC, 25 mA no load, SELV or PELV (150 VA max for UL)

Operating temperature

-20 to +55 Β°C

Isolation

50V field side to system, none between channels

Terminal bases

Two: 1734-TB, TBS, TOP, TOPS, TOP3 or TOP3S. Not TB3 or TB3S

Keyswitch

Left base 8, right base 1

Adapter

1734-AENT firmware 3 or later, 1734-AENTR, or 1734-PDN on DeviceNet. Not 1734-ADN, ADNX, APB or ACNR

Software

Studio 5000 v21+, RSLogix 5000 v17+

Β

Reading the LEDs on a 1734-IB8S

LED

State

What it means

What I do

MS

Flashing green

Idle, no connection

Configure it, establish a connection

MS

Flashing red

Recoverable fault, or firmware update running

Cycle power or reset the module

MS

Flashing red and green

Not configured, or power-up self-test

Reconfigure, or wait

MS

Steady red

Unrecoverable fault

Cycle power. Still red, replace it

NS

Flashing green

Online, no connection established

Check network and module configuration

NS

Flashing red

An I/O connection timed out

Check network and module configuration

NS

Steady red

Critical link failure, like a duplicate address

Cycle power, check addressing

PWR

Yellow

Field power out of spec

Check connectors, wiring, voltage

Input 0-7

Red

Fault in external wiring or the input circuit

Configuration, wiring and device first

Input 0-7

Flashing red

The partner channel faulted

Go look at the other channel

Β

The red input LED is where people go wrong. You fix the pinched wire and the LED stays red. That's by design. The fault holds until the cause is gone, the input returns to its safe state (hit the E-stop, open the door) and the error latch time runs out, 1,000 ms by default. More than one good module has gone back as defective because nobody cycled the input after the repair.

Combined Input Status is an AND of every input on the module. One bad channel drops the whole bit.

Getting the reason out of the module

The LED says red. It doesn't say why. A message instruction in the standard task does: Get Attribute Single (service 0E), Class 3D, Instance equal to the input number plus 1, Attribute 6E.

Code

Input fault reason

00

No error

01

Configuration invalid

02

External test signal error

03

Internal input error

04

Discrepancy error

05

Error in the other dual-channel input

Β

02 sends you to the field wiring. With 03 the problem is inside the module. Test outputs answer on Class 09, Instance 1 to 4, Attribute 76: 02 overload, 03 cross circuit, 05 output ON error, 06 muting lamp undercurrent.

The 2020-2021 batch: read the side label first

In May 2022 Rockwell put out a product notice on Series B 1734-IB8S modules that can throw an intermittent connection fault. No workaround, and not every unit in the range is affected.

Β

1734-IB8S Series B

1734-IB8SK Series B

Built

May 1, 2020 through September 30, 2021

May 1, 2020 through October 29, 2021

Faults

16#0010, 16#0203, safety instruction #0020

Same

Correction

Warranty repair if used, replacement if still sealed in the carton

Replacement only

Request window

18 months from May 2022

Same

Β

The #0020 means Input Status went from ON to OFF while the instruction was executing. After a drop the module might recover on its own, recover after a power cycle, or stay faulted.

The side nameplate has the catalog number in CAT, the series in SER and the build date. Still in the carton? Same data on the carton label, date in the DATE field. The 1734-AENT and 1734-OB8S aren't part of it.

Rule out the ordinary causes first: wiring, the network and the settings below. Then watch [Adapter Name]:[Slot Number]:I.ConnectionFaulted. If that bit toggles, the connection really dropped.

The 18-month window closed around November 2023, so plan on replacing a bad one yourself.

One line in that notice I'd underline twice: units in non-Rockwell inventory may still be affected. That's every surplus shelf, ours included. Whoever you buy a Series B from, ask to see the side label before it ships.

Series A, B and C in the same rack

Series

Spacers

PFH single / dual channel

A

Above 40 Β°C, a 1734-CTM between every POINT Guard module

5.10E-10

B

None up to 55 Β°C, if the rack is only B and C

5.61E-10 / 1.20E-10

C

None up to 55 Β°C

5.20E-10 / 6.86E-11

Β

Mission time is 20 years for all three. Leave 2 in. of clearance above the modules either way.

The trap is the mixed rack. One Series A in the system above 40 Β°C and every POINT Guard module needs a spacer, including the 1734-IB8S Series B you just slid in.

Three settings that make a good module look bad

The 20-connection budget

The 1734-AENT and 1734-AENTR each have 20 connections, and every POINT Guard module can take up to two. Ten safety modules can fill the adapter, and past that some modules just don't get a connection. Two fixes:

1.Β Β Β  Adapter connection type to None when there are no standard digital modules in the rack. POINT Guard modules don't use rack optimization anyway.

2.Β Β Β  Output Data to None on any 1734-IB8S where logic never drives the test outputs. That's Rockwell's own recommendation, and pulse test and power supply modes keep working.

Chassis size has to be the physical modules plus one, exactly. More in the 1734-AENT setup walkthrough.

RPI set too tight

Input RPI runs 6 to 500 ms. Small RPIs eat bandwidth and cause spurious trips, and a module with nothing but E-stops is fine at 50 to 100 ms. Default Timeout Multiplier 2 and Network Delay Multiplier 200 give an input reaction time limit of 4 times the RPI, output 3 times. Changing those is the safety administrator's call.

Keying versus the spare's firmware

Exact Match wants everything to match, revision included. Compatible Module is looser, same revision or newer. Disable Keying, don't. Say the project has the module at 2.003 with Exact Match and your spare reports 2.002. It won't connect, and nothing's broken. Compatible Module won't help either, 2.002 is older. Change the revision in the module definition and download, or find a spare that matches. And check what you're putting in: Series B is TÜV certified at firmware 2.003, Series C at 3.011.

Swapping a 1734-IB8S without losing the safety configuration

On EtherNet/IP, a GuardLogix keeps the module configuration and pushes it to the replacement. On DeviceNet, with a SmartGuard or a GuardLogix behind a 1734-PDN, you download it again from RSNetWorx for DeviceNet. On a GuardLogix it comes down to two things: is there a safety signature, and what safety network number (SNN) the new module carries.

Write down slot, series, firmware revision and keying before you pull anything. The bases are keyed 8 and 1, a 1734-OB8S keys 8 and 2, so an output module won't seat in an input slot by accident.

A used spare can still carry somebody’s ownership. Clear it with Reset Ownership on the Safety tab, inhibiting the module first if ownership shows Local.

Safety signature exists

Replacement module

What you do

No

Out of box, no SNN

Nothing, it's ready

Yes or no

Same SNN as the original

Nothing, it's ready

Yes

Out of box, no SNN

Set the SNN

Yes

Different SNN

Reset Ownership, then set the SNN

No

Different SNN

Reset Ownership

Β

To set it, click the button next to the safety network number in module properties, then Set. Before you click Yes, make sure NS is alternating red and green on the module you actually replaced. With three IB8S modules side by side, that look is the whole point.

Relying on part of the CIP Safety system to hold SIL 3 during the swap? Use Configure Only When No Safety Signature Exists, not Configure Always, which grabs any out-of-box or matching-SNN module at that address.

After the download, MS and NS should both be steady green. Anything else, or a yellow yield icon in the I/O tree, means ownership may not have taken. Then the part nobody likes at 3 am: toggle every input and confirm the controller sees each one within the safety reaction time.

Flowchart for swapping a 1734-IB8S on a GuardLogix: SNN check, Reset Ownership, Set SNN, MS and NS steady green

The swap on a GuardLogix with Configure Only When No Safety Signature Exists. The NS check before you click Yes is the step people skip.

1734-IB8S questions I get asked

What does a red input LED on a 1734-IB8S mean?

A wiring or input-circuit fault on that channel. Flashing red points at the other channel of the pair. Fix it, open the input, wait out the latch time and it clears.

Can a 1734-IB8S reach SIL 3 on one channel?

No. Single channel tops out at Category 2, PLd / SIL CL2, even with pulse testing on. SIL CL3 / PLe needs two inputs working as a dual-channel pair. With plain contacts like an E-stop, that means both on Safety Pulse Test.

Is every 1734-IB8S built in 2021 bad?

No. Only Series B built through September 30, 2021 is covered, and even inside that window it doesn't hit every unit. Read the label, rule out wiring and network, watch ConnectionFaulted.

What's the difference between the 1734-IB8S and the 1734-IB8SK?

The K means conformal coating. Same ratings and specs. In the 2022 notice the coated version had a later end date and was replacement only.

Before you order a spare 1734-IB8S

Read the series, firmware revision and side-label date off the old module first. A Series B from the flagged window, with wiring and network already cleared, gets replaced, not reset every shift. We keep the 1734-IB8S and the conformal-coated 1734-IB8SK on the shelf, with the 1734-AENT and 1734-AENTR adapters and the 1734-TB and 1734-TOP bases it sits on, all with a 2-year warranty. Ask us for a photo of the label on the unit you're getting, and send the CAT and SER off the old one if you're not sure what matches.
