Class 1 Div 2 enclosures: what has to be rated, and when a plain 4X box is enough

The spec is one line: "Class 1, Div 2, Group D, T4." I've seen that line go out to three panel shops and come back as three different panels. A cast NEMA 7 box with no HMI allowed on the door. A 4X with a Type Z purge. A plain 4X full of Div 2-marked parts, no purge at all. Then the inspector adds a fourth opinion, with a price to match.

All three can pass. They just don't cost the same, because class 1 div 2 enclosures don't get their rating from the box. It comes from the parts inside and from whoever signs off on the assembly. Here's how I pick the build, and which cheap parts usually break it.

Why a plain 4X box can be legal in Div 2

Division 2 is where gas only shows up when something goes wrong. A flange leaks, a line ruptures, a ventilation fan quits, or vapor drifts over from a Division 1 area next door. The rest of the time the air is clean. So the equipment there has one job: don't be an ignition source in normal operation. For gas and a spark to meet, the plant has to leak and the equipment has to misbehave at the same moment.

That's why class 1 div 2 enclosures can be general-purpose boxes. NEC Article 501 lets one general-purpose enclosure hold the whole assembly, as long as each part in it is acceptable for Div 2. NEMA 4X is about hose-down water, dust, ice and corrosion, exactly what an outdoor skid needs, and it says nothing about gas. An empty 4X box has nothing in it to light anything.

The gas rating is NEMA 7. That's Division 1. Div 1 equipment is allowed in a Div 2 area with the same class, group and temperature class, so an explosionproof panel passes too. It's just a lot of cast metal around a 24 V PLC.

Reading "Class 1, Div 2, Group D, T4" on a spec or a nameplate

Every part that goes into class 1 div 2 enclosures gets checked against those four pieces.

On the spec or nameplate	What it means	What to check
CL I (Class I)	Flammable gases and vapors	Class II is combustible dust and Class III is fibers, each with its own rules
DIV 2	Gas present only under abnormal conditions	A part marked Div 2 is for Div 2 only. No division on the label, or Div 1, means it's good for both
GP A, B, C, D	The gas groups the part was evaluated for	Your gas has to be on the list. Group D covers propane, natural gas, methane, butane and gasoline
T4	Hottest surface stays at or below 135 °C (275 °F)	Your gas has to ignite above that. The code holds at the rated ambient: 40 °C unless the nameplate says higher

What each piece of the marking means, and what to check it against.

The T-code is the line people skim. In practice the panel takes the code of its hottest part, the lowest T-number on the backpan. Say everything is T4 except one T3 device (200 °C). Now the panel is T3, and a single part just blew the T4 spec.

Ambient matters too. A T-code is only good up to the ambient on the nameplate, and that's the air around the device. Inside a closed stainless box in the sun, that air runs a lot hotter than the weather report.

Four ways to build class 1 div 2 enclosures

Build	What can go inside	What it costs you	Where I'd use it
Plain 4X box, every part acceptable for Div 2	Marked electronics, parts with protected contacts, and non-arcing parts like windings and terminal blocks	Part selection. Every component has to qualify on its own	The default for PLC, I/O, HMI and 24 V panels
4X box, Type Z purged	Ordinary general-purpose parts	Clean air or nitrogen for as long as the panel runs, an alarm somebody answers, a fresh purge whenever the door has been open	Panels that need parts nobody makes in a Div 2 version
Explosionproof (NEMA 7 indoors, a combination type outdoors)	Arcing parts, if the box is rated for your gas group and T-code	Heavy cast box, conduit seals, and no cutting a hole in it for a touchscreen	A few switches in the field. Rarely a whole control panel
Panel moved out of the classified area	Anything	Longer cable runs. Field wiring and field devices still follow Div 2 rules	Whenever the layout allows it

The four builds that pass in Div 2, and what each one costs you.

First thing I ask for is the area classification drawing. Any Class/Division area classified after August 2007 has to be documented, and that drawing shows where the Div 2 boundary really is. Sometimes moving the panel a few feet puts it outside, and the question goes away. If it can't move: Div 2 parts first, purge second. Explosionproof almost never wins for a control panel.

The order I work through class 1 div 2 enclosures in: move the panel if you can, Div 2 parts if you can't, purge when the parts won't cooperate.

What on the backpan usually isn't Div 2

Most class 1 div 2 enclosures I see get into trouble over two or three cheap parts, not the PLC. The rule: anything that makes or breaks current in normal operation needs a Division 1 enclosure unless its contacts are protected. Article 501 lists the ways out, and the list shifts a little by device type.

Part	Why it's a problem	OK in a plain 4X box when
Circuit breakers, contactors, motor starters, a heater thermostat	They interrupt current in normal operation	The break happens in a hermetically sealed chamber, under oil, or in a factory-sealed device identified for the location. Solid-state with no contacts also works if its surface stays under 80% of the gas's autoignition temperature in °C. Div 2-listed breakers exist
Control relays, pushbuttons, selector switches, horns	Make-and-break contacts	Contacts hermetically sealed or under oil, in a nonincendive circuit, or the device is listed for Div 2 (in signaling circuits, part of a listed nonincendive component)
Fuses for motors, lamps and appliances	A fuse arcs when it blows	Nonindicating, filled, current-limiting type, or hermetically sealed or oil-immersed. Instrument fuses on circuits that don't see overloads are OK behind a qualifying switch, and signaling-circuit fuses can sit in a general-purpose enclosure
Control transformers, solenoid coils	Windings, no contacts	Fine in a general-purpose box. Surface temperature still counts toward the T-code
Resistors	Heat	Fixed value, running under that same 80% limit, or tested as unable to ignite the gas
Panel heater	Hot surface	Exposed surface under the 80% limit at maximum ambient (at 120% voltage when there's no temperature controller), or the heater is identified for Div 1
PLC, I/O, HMI, power supply, Ethernet switch	Relays, fuses and hot spots inside you can't inspect	Nameplate shows CL I, DIV 2 (or Div 1), your group and a T-code that meets the spec
Terminal blocks, DIN rail, wire duct	Nothing sparks or runs hot in normal operation	No hazardous-location marking needed. A fused or disconnect terminal block counts as a fuse or a switch, though. Above 30 V (15 V in wet locations) the NEC also restricts uninsulated exposed live parts, so check your voltage.

What on the backpan of class 1 div 2 enclosures needs attention, and what keeps it legal without a purge.

Say the backpan holds a CompactLogix 5380, a 24 V supply and an Ethernet switch, all marked CL I, DIV 2, plus a marked PanelView Plus 7 on the door. (For Stratix switches, our managed vs unmanaged switch comparison lists the Class I Div 2 rating of the Stratix families it covers.) Add a molded-case main breaker, four ice-cube interposing relays on solenoid valves, a control transformer, and a panel heater with a thermostat. The electronics are done. The transformer and the heater are surface temperature checks. The other six parts decide the build: swap them for sealed or Div 2-listed versions (the breaker can also move to a panel outside the classified area) and the plain 4X works. Or purge the box and keep them all. For six parts, I swap.

And no, 24 V doesn't make a circuit nonincendive. That word means the circuit was shown, under specified test conditions, not to ignite the gas. Low voltage alone proves nothing.

One backpan, four colors. The red parts are usually the cheapest ones on the panel, and they're the ones that decide whether the box needs a purge.

When a Type Z purge is worth it

A Type Z purge makes the inside of an enclosure sitting in Div 2 unclassified, so ordinary parts can live there. It's the answer when class 1 div 2 enclosures need parts with no Div 2-rated equivalent. NFPA 496 sets the conditions:

·       At least 25 Pa (0.1 in. of water) above the surrounding air, the whole time the equipment runs.

·       Instrument-quality air, nitrogen or another nonflammable gas. A compressor feeding it pulls its intake from an unclassified location.

·       Pressure loss has to show on an alarm or an indicator. An alarm sits at a constantly attended location and watches the enclosure pressure. With an indicator, the gas supply still gets an alarm at a constantly attended location.

·       Power doesn't have to shut off when pressure drops.

·       The pressure switch is live with no purge running, so it has to be suitable for Div 2 itself.

·       After the door's been open, or pressure was lost, the box gets purged again.

·       A permanent warning plate, visible before anyone opens the door: pressurized enclosure, don't open it unless the area is known to be below the ignitible concentration or everything inside has been de-energized. Next to it, the area classification, "Type Z", and the T-code or operating temperature, which can be left off when the highest temperature doesn't exceed 100 °C.

A purge keeps costing after the panel ships: air for the life of the panel, and an alarm somebody has to answer. On a panel that's mostly marked PLC hardware, I'd rather spend that money on sealed relays.

A Type Z purge reduced to its parts: air in from an unclassified location, a Div 2 pressure switch on the box, and an alarm that reaches a constantly attended location.

Who signs off on the panel

That's where part of the price gap between those three quotes came from. The NEC takes three kinds of proof that equipment suits the location: a listing or label, an evaluation by a qualified testing lab or inspection agency, or evidence the authority having jurisdiction (AHJ) accepts, including the owner's engineering judgment. In practice:

Route	Who does the work	What you end up with
Listed panel	A panel shop in a nationally recognized testing lab (NRTL) hazardous-location program: UL 121201 for a nonincendive build, NFPA 496 for a purged one, UL 1203 for explosionproof	A listing mark on the panel
Field evaluation	An NRTL or inspection agency, with the AHJ involved	A field evaluation label for that one installation
Limited-production certification	An NRTL at the shop or on site, for one panel or a short run	Serialized certification marks on the panel, not tied to one site
Owner's engineering judgment	Your engineer, with every part marked and the reasoning written down	Fine if your AHJ accepts it

Four ways to show class 1 div 2 enclosures suit the location.

UL 698A keeps showing up on Div 2 quotes. Wrong standard. UL 698A covers panels in an unclassified area whose intrinsically safe circuits run out into Class I Division 1, Zone 0 or 1, Class II or III Division 1, or Zone 20 and 21. Division 2 isn't on the list. No IS barriers, nothing for UL 698A to look at.

Settle the route for your class 1 div 2 enclosures with the AHJ before the panel is built. How the parts combine in your enclosure is their call at installation anyway, listed parts or not.

The HMI on the door, and the controller behind it

A PanelView Plus 7 in the door is normal for class 1 div 2 enclosures. The rating covers units that carry the marking, so check the nameplate on the terminal you're installing, not the family name. A marked Standard or Performance terminal is good for Class I, Division 2, Groups A through D, T4 in ambients up to 55 °C (a few models, like the 19-inch Series A Performance, have a 50 °C ambient limit), and never where the gas ignites below 135 °C. Day to day:

·       SD card in or out only with power off or the area known to be nonhazardous. On the Standard terminal the SD card cover has to be installed.

·       The same rule covers Ethernet and the other connections. Power wiring and the battery are stricter: power off and a nonhazardous area, both.

·       The Standard terminal's USB device port is for maintenance only. On the Performance terminal, the USB host ports are nonincendive circuits with published limits, and whatever plugs in has to fit them.

·       ArmorView Plus 7, the cast aluminum package, isn't certified for hazardous locations at all.

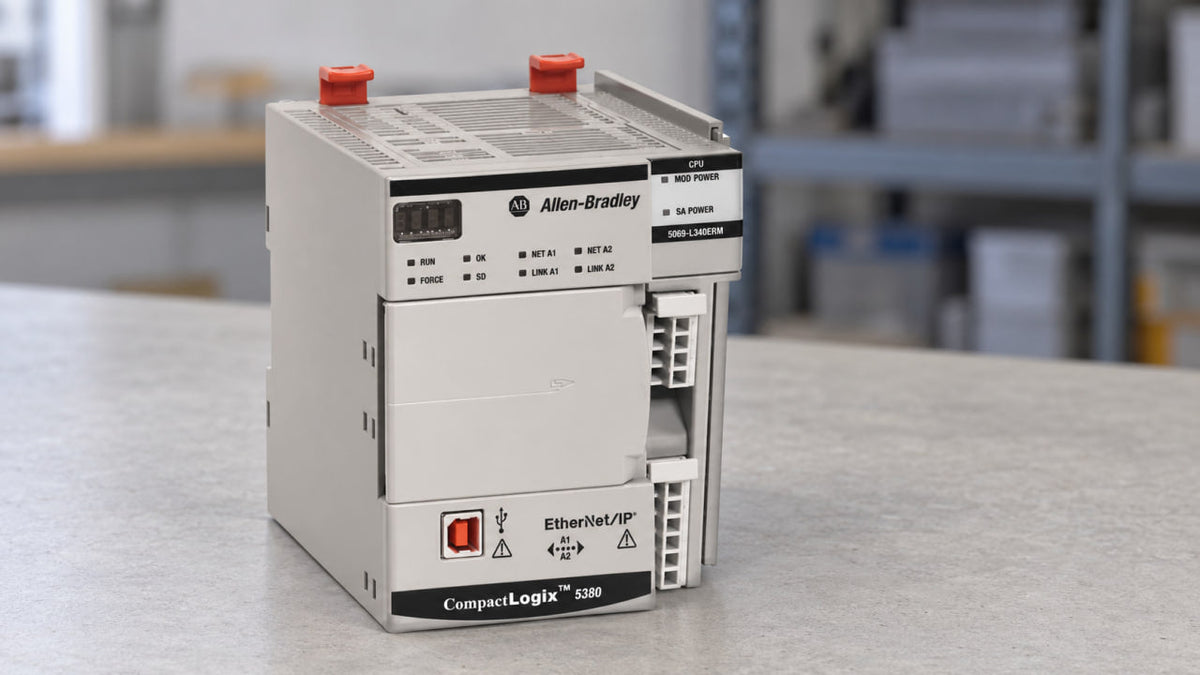

The CompactLogix 5380 behind the door of class 1 div 2 enclosures is open-type, T4. Its enclosure has to open only with a tool, and a nonmetallic one also needs a 5VA flame rating or approval for the application. A fiberglass box with hand latches can miss both. Replace one module with an unmarked part and the panel can lose its Div 2 suitability without anybody noticing. On used or surplus hardware, read the label before it goes in. That's where the certification lives, and a part with a missing or unreadable label can't show its rating.

FAQ

Does NEMA 4X meet class 1 div 2?

Not by itself, and it doesn't need to. 4X is an environmental rating with nothing to say about gas. Fill the box with parts acceptable for Div 2, or purge it Type Z, and the AHJ can accept it. That's why class 1 div 2 enclosures can be ordinary stainless 4X boxes.

What is the difference between Division 1 and Division 2?

In Division 1, ignitible gas can be present in normal operation, or show up often from leaks and repair work. A Division 2 area only gets it when something fails: a rupture, lost ventilation, or gas carried over from an adjacent Division 1 area. Division 1 equipment works in a matching Div 2 area. Equipment marked Div 2 is rated for Division 2 only.

Do class 1 div 2 enclosures need a purge?

No, not if every part inside qualifies on its own. Purge Type Z when the panel needs ordinary parts, and budget for compressed air and an alarm someone watches.

Is UL 698A required for class 1 div 2 enclosures?

No. It's for panels in unclassified areas feeding intrinsically safe circuits into Division 1 type locations. A panel located in Div 2 is evaluated to UL 121201 when built nonincendive, to NFPA 496 when purged, or through a field evaluation. Ask the AHJ which before the build.

Before the parts go in the box
