PanelView Plus 7 software: what is already on the terminal, and what you actually pay for

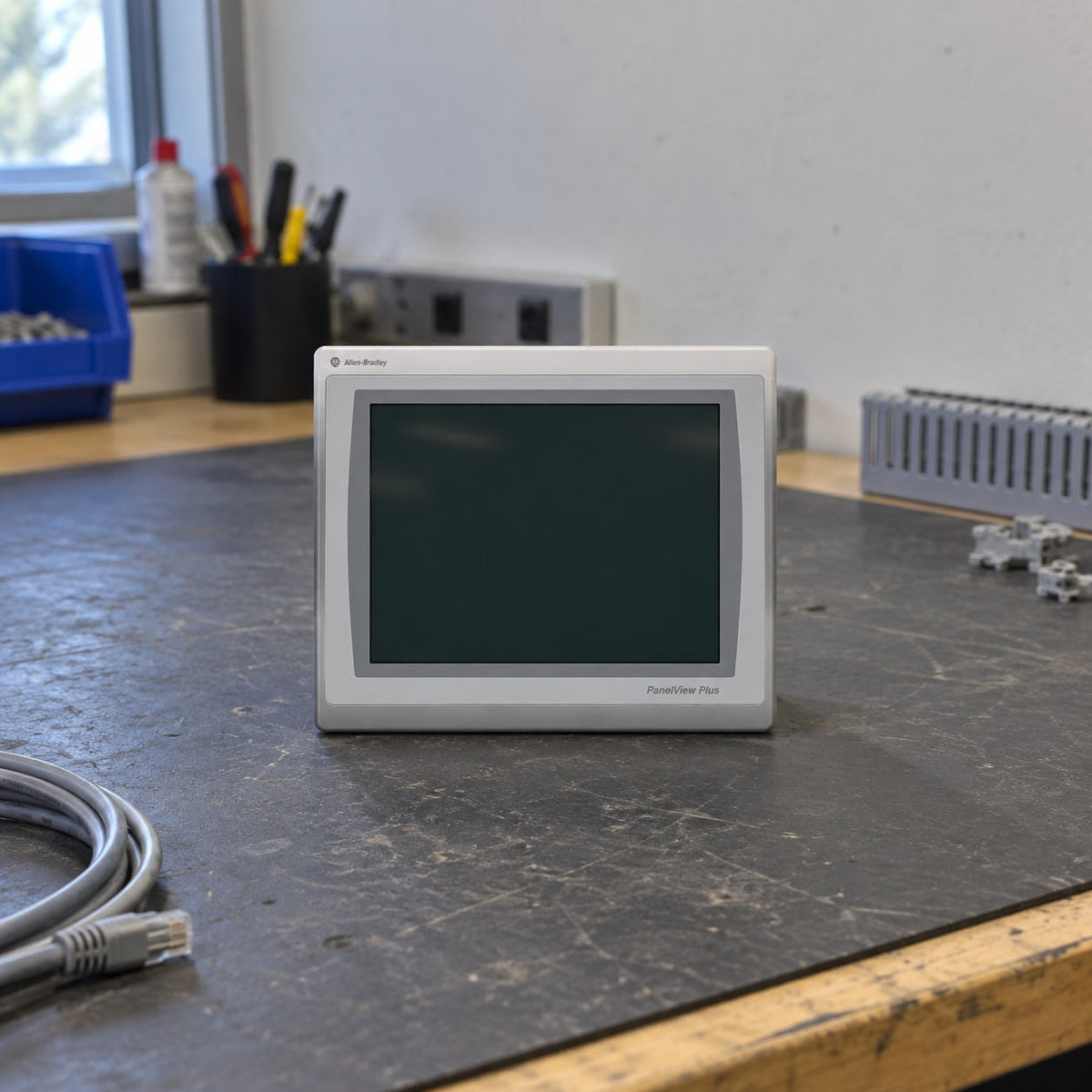

A used PanelView Plus 7 lands on the bench, somebody powers it up, and it stops on a gray configuration menu that says Load Application and Run Application and not much else. The question I get after that is always some version of the same one: is this thing locked until we buy Rockwell software?

No. That screen is the terminal doing exactly what it should. The runtime is already paid for and sitting in flash. What costs money is the package you build the screens in, and it runs on a PC, not on the terminal. Those two get quoted as one purchase far more often than they should.

The runtime is already on the terminal, and it needs no activation

FactoryTalk View Machine Edition Station comes preloaded on every PanelView Plus 7, and Rockwell states in the terminal manuals that it does not require activation. That is the runtime. It loads a .mer application, runs it, and holds the terminal settings behind it.

From that configuration menu you can load an application, run it, set the IP address and the Ethernet settings, calibrate the touch screen, change display settings, delete log files, and reset the terminal. No license. No PC in the room.

What you cannot do there is change the application. There is no screen editor on the terminal. Move a button, retype one alarm message, add a tag, and you are back at a PC with FactoryTalk View Studio for Machine Edition, rebuilding the .mer and sending it down again. That is the line the money sits on.

One more license is already in the box and hardly anybody uses it. FactoryTalk ViewPoint is a web server on the terminal that lets a browser view and control the running application, and Rockwell embeds one client connection with each terminal. One connection, not a fleet. For a maintenance laptop on the far side of the plant, that one is free and already yours.

Software	Where it runs	What it costs
FactoryTalk View ME Station	On the PanelView Plus 7 itself	Preloaded, no activation
FactoryTalk ViewPoint	On the terminal, viewed in a browser	One client connection embedded with each terminal
FactoryTalk View Studio for Machine Edition	On your PC	Paid license, distributor quote only
RSLinx	On your PC	Included with Studio and installed with it



Two of these four you already own the moment the terminal is on the shelf.

Where the license actually sits. The PanelView Plus 7 side of this picture is paid for inside the price of the hardware.

What the software costs, and how it gets sold

Rockwell publishes no list price for FactoryTalk View Studio for Machine Edition. Every route to a number runs through an Allen-Bradley or Rockwell distributor quote, and it moves with the region and with whatever agreement the plant already holds.

Two things about that quote are worth settling before it arrives. Activations come either as a perpetual license or as an annual subscription, and the catalog number carries the difference in a single letter buried in the middle of the string. Ask which one you are looking at. A renewal nobody budgeted for makes month thirteen unpleasant.

The other is that it is per computer. One engineering PC, one license. The same logic runs downstream, and this is the part that catches people out: run the application on an industrial PC instead of on a PanelView Plus 7 and that PC needs its own ME Station license, because the runtime you never paid for separately on the terminal was paid for inside the hardware price.

Before anyone raises a purchase order, spend twenty minutes finding out whether the plant already owns a seat. Programming laptops get retired into cabinets and forgotten about. I have turned up more than one that way.

Three PanelView Plus 7 Standard limits that decide the job

Whether the software bill is worth paying usually comes down to what the terminal will carry, and the Standard has three of those limits printed in its own manual.

Ethernet, and nothing else. Rockwell writes it flatly: only Ethernet communication is supported. There is no serial port on the back of a PanelView Plus 7 at all, Standard or Performance, and no firmware revision changes that. A legacy serial PLC gets reached through a gateway sitting out on the network. People buy an adapter first and find this out second.

The controller count is the second one. A Standard application gets one connection to a controller, through either RSLinx Enterprise or KEPServer Enterprise. Two PLCs feeding one screen is a Performance job.

Then the application itself caps out at 100 screens and 500 alarm messages. Generous for a machine, tight for a line.

	Standard	Performance
Screens per application	100	No matching limit in the manual
Alarm messages	500	No matching limit in the manual
Controller shortcuts	One, through RSLinx Enterprise or KEPServer Enterprise	No matching limit in the manual
Serial port	None	None
Ethernet ports	One or two, depending on catalog number	Two, DLR capable
Operating system	Windows CE 6.0	Series A: Windows CE 6.0. Series B: Windows 10 IoT Core
Memory	512 MB RAM, 512 MB nonvolatile with roughly 80 MB free for the application	Series A: 512 MB RAM, 80 MB user memory. Series B: 4 GB RAM, 2 GB user memory
Display sizes	4.3 through 15 in.	6.5 through 19 in.



The application limits in the middle column are printed in the Standard terminal manual. The Performance manual carries no matching list.

Every port on the back of a PanelView Plus 7 Performance terminal. Two of them surprise people: there is no serial port at all, and the USB device port is listed in the manual as not functional.

Talking to a PLC that is not Allen-Bradley

KEPServer Enterprise rides along in the terminal firmware next to RSLinx Enterprise, so a third-party controller does not mean buying a separate OPC server for the terminal side. Modbus over Ethernet into a PanelView Plus 7 is an ordinary thing to do.

The catch is the driver list. These terminals carry only a subset of what Kepware supports elsewhere, and which drivers are in there depends on the firmware package sitting on the unit. Check that list against your firmware before you design a machine around one protocol, not after. You still build all of it in Studio either way.

If you are not going to pay for Studio

That is a real decision, not heresy. Here is the honest shape of it.

Route	What it is	Software side
FactoryTalk Optix	Rockwell's newer visualization platform, deploys to panels, industrial PCs and virtual machines on Windows or Linux	Licensed by what you deploy
Weintek cMT	Third-party terminals in comparable sizes	EasyBuilder Pro is a free download
AutomationDirect C-more CM5	Third-party terminals	CM5-PGMSW programming software is a free download
Ignition Edge Panel	Runtime on a panel PC rather than a dedicated terminal	Licensed per device
AdvancedHMI	Free PC-based HMI built inside Visual Studio, with Allen-Bradley and Modbus drivers	No license key and no dongle



Three of the five hand you the editor for nothing and make it back on the hardware instead.

Not one of those reads a .mer file. Whichever you pick, somebody rebuilds every screen by hand, and that labor usually costs more than the license did. The other thing that gets forgotten until the door is open is the cutout. A PanelView Plus 7 leaves a specific hole in the panel, and a different brand in the same nominal size will not land in it.

So for a machine already running a PanelView Plus 7 application that works, buy the software. Switching platforms pays off on the next machine, not on this one.

Frequently asked questions

Is a PanelView Plus 7 only programmable with paid software?

For creating or changing an application, yes. FactoryTalk View Studio for Machine Edition is a paid license and there is no free tier of it. Running an application is a separate matter: ME Station is preloaded and needs no activation, so a terminal holding a finished .mer file runs without anyone buying anything.

Can you edit a screen on the PanelView Plus 7 itself?

No. There is no editor on the terminal. Configuration mode covers terminal settings, the IP address, display and touch calibration, loading and running applications, and log files. Graphics and tags get built on a PC.

How do you get an application onto a PanelView Plus 7?

Two routes. The Transfer Utility inside FactoryTalk View Studio pushes the .mer down over Ethernet, or you carry it over on a USB drive or an SD card and load it from the terminal's own menu.

Which software version does a PanelView Plus 7 need?

Rockwell lists FactoryTalk View Studio for Machine Edition version 8.x or later across the PanelView Plus 7 family. Firmware is a separate check on Standard terminals: Series C hardware is compatible with firmware 8.x or later, Series D with 13.x or later. Read the series letter off the label of a used unit before you plan the flash.

Does a PanelView Plus 7 need an adapter for an older serial PLC?

Not an adapter at the terminal, because there is no serial port to plug one into. The conversion has to happen out on the network instead.
