1747-L541: which port takes which cable, and why the laptop still can't see it

The call almost always goes the same way. Laptop on a cart, a 1747-L541 in the rack, a bag of cables and maybe an hour before the line has to run again. The round plug on a MicroLogix cable fits the round hole on the processor, so in it goes. RSLinx shows nothing. Which, believe it or not, is the good outcome.

Three connectors on the front, only two communication channels behind them. Most of the confusion starts right there. Below is what each port really is, which cable goes where, and the order I check things in when a 5/04 won't talk.

Three connectors, two channels

Channel 0 on the 1747-L541 is the 9-pin D-shell, and it's RS-232. Channel 1 is DH+, and it comes out twice: on the 3-pin plug and on the round 8-pin mini-DIN. Same channel. Same two data lines plus a shield. On paper the 3-pin is the connector for actual DH+ communication and the 8-pin is there for monitoring it. In practice the round port is where a DH+ programming cable goes.

1747-L541 front connectors at a glance



The processor front and its three connectors: what each one is and which cable belongs in it.

 If you ever have to buzz out a DH+ plug, don't wire one connector from memory of the other. Data Line 1 and Data Line 2 swap pin positions between them.



The 3-pin plug is where the blue hose lands. DH+ runs as a daisy chain, terminated at both ends with a 150 ohm 1/2 W resistor across the two data lines (the clear and blue wires, pins 1 and 3 of the plug, not the shield) at 57.6 or 115.2 Kbaud, or an 82 ohm one at 230.4 Kbaud. I don't hang anything permanent off the round port. It's a tap for a laptop, not the start of a branch.

The cable that fits and doesn't belong there

The 1761-CBL-PM02 causes more grief around a 1747-L541 than anything else in the cable bag. It's the MicroLogix programming cable: a 9-pin D-shell on one end, an 8-pin mini-DIN on the other. That mini-DIN looks like it was made for the round port on the processor.

It wasn't. In an SLC 5/03, 5/04 or 5/05 system that cable has one job. The D-shell end goes on processor channel 0, the round end goes into port 2 of a 1761-NET-AIC, and that puts channel 0 on a DH-485 network. Pushing RS-232 into a DH+ port is a gamble where the best case is that nothing happens. Nothing documents RS-232 on that port, and I’m not going to be the one who tests it on your processor. Treat it as a hard no.

Left, the 1747-CP3 for channel 0. Right, the 1761-CBL-PM02, with a D-shell on one end and a round mini-DIN on the other.

 Cables and interfaces, by connector



Right port, right cable, still nothing

This is where the real hours go. A 1747-L541 keeps its channel setup inside the user program, so whatever the last person downloaded is what the ports are now. The processor doesn't care what your laptop expects.

Channel 0 can be in several modes, and the default RSLinx setup works with only one of them:

·       DF1 full-duplex: 1747-CP3 and the RS-232 DF1 driver in RSLinx, device type SLC-CH0/Micro/PanelView.

·       DH-485: a DF1 driver will never find it. You need a DH-485 route, either a 1747-UIC or a 1761-NET-AIC on a DH-485 driver.

·       Modbus RTU Master, ASCII, radio modem, or shut down in the config: the port is busy with the machine or off. Go in through DH+.

Before touching RSLinx, look at the RS232 light with nothing plugged into channel 0. Flashing means the port is in DH-485 mode hunting for other nodes. In DF1 it only lights while the processor transmits, so an idle DF1 port stays dark.

Say you grab a spare 1747-L541 off the shelf with a 1747-M13 still in it from another line. RSLinx is set for DF1 at 19.2K, you power up, nothing. If the program on that module has channel 0 set to DH-485 for an old operator panel and its Load Memory Always bit (S:1/11) set, the module put that program back on power-up, channel setup and all. The port's fine. It's just speaking a different protocol.

Auto-Configure through a USB-to-serial adapter doesn’t always work, so I type it in: 19200, no parity, CRC, and whatever COM number Device Manager actually assigned.

Going in through DH+ instead

When channel 0 is busy, the round port gets you in. Rockwell's cable for it is the 1784-U2DHP, USB at one end and a round 8-pin plug at the other, and it replaced the old 1784-PCMK card plus 1784-PCM6 cable. Three details trip people up:

·       The DH+ rate is set by a switch on the cable and only read when the USB side powers up. Change the switch, unplug, plug back in. A 5/04 fresh out of a reset sits at 57.6K.

·       RSLinx Classic 2.53 and later has a dedicated 1784-U2DHP driver. The cable's station number defaults to 0 and can be anything from 0 to 77 octal that no other node already uses.

·       The cable has its own DH+ light. Blinking green: no network, wrong rate, or a break or short in the wiring. Blinking red: duplicate node.

The order I check a 1747-L541 that won't show up in RSLinx

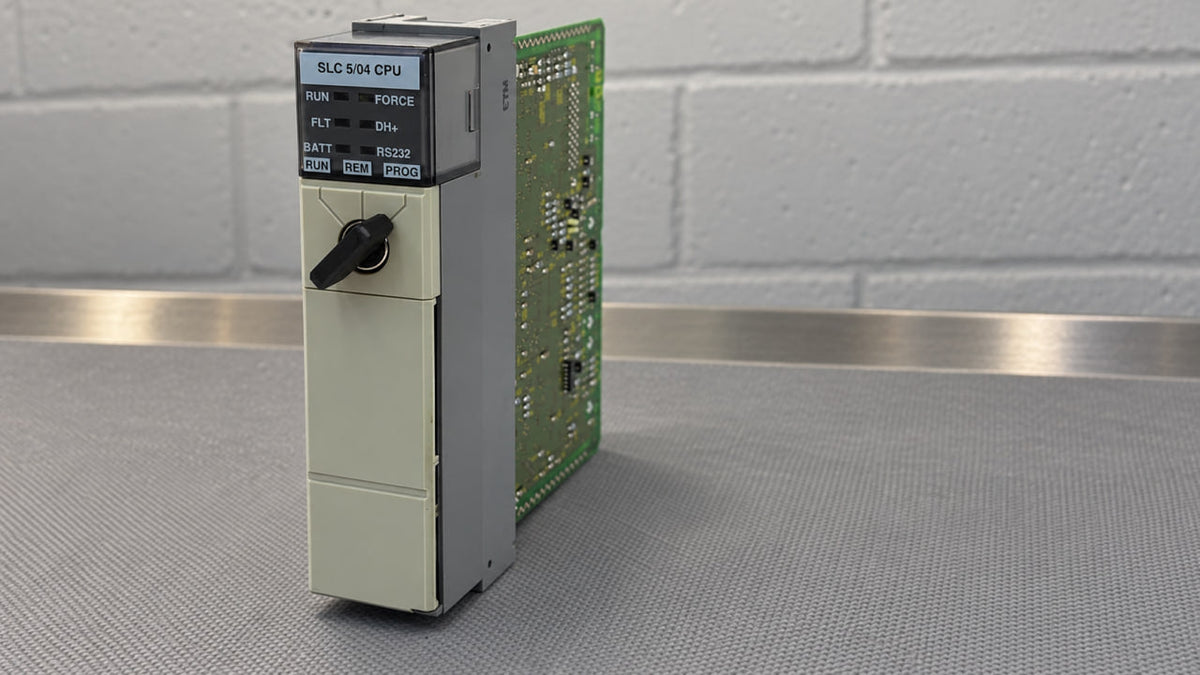

 What the lights on a 1747-L541 are telling you

Half of what I need is on the front panel before the laptop even boots.



Steady FLT with everything else dark is the bad one. Cycle the power, pull the memory module, and if the light stays solid, try the processor in another chassis. A damaged communication channel on an otherwise running processor also means a new processor.

Two fault codes in S:6 are worth knowing by heart. 0x00A0 through 0x00A2 is a communication channel hardware fault, and on a 5/04 that points at DH+. You can clear it by writing to the status file, but the channels stay disabled until power is cycled. Then there's 0x3D right after a firmware upgrade. That one usually means the J4 jumper never went back to PROTECT: the processor refuses to run, channel 0 drops to its defaults, and the fix is J4 back to PROTECT plus a fresh download.

One more DH+ habit. A reset or brand-new 5/04 comes up as node 1. If node 1 is already taken on that network, the DH+ light flashes red the moment the blue hose goes in. That's why I never park a processor at node 1 on purpose.

Factory reset is the last step, not the first

It wipes the program. All of it. Get an upload by any route that works first, or make sure a copy exists somewhere else.

1.    Remove power from the SLC power supply.

2.    Pull the processor out of the chassis.

3.    Unplug the battery connector.

4.    Find the VBB and GND points on the right side of the motherboard.

5.    Short them with a small screwdriver and hold it there for 60 seconds.

It comes back empty, FLT flashing at power-up, channel 0 on DF1 at 19.2K and DH+ at 57.6K, node 1.

Two traps here. Pulling the battery alone does nothing quick: a capacitor holds RAM for at least 30 minutes with the battery out, so the program is still there. The VBB to GND short is what clears it, and it has to be held for the full 60 seconds. And an M13 left in the socket with Load Memory Always set will put the old program straight back on the next power-up. Take it out first.

Memory, firmware, and the L542, L543, L551 question



All four handle up to 4096 inputs and 4096 outputs, with up to 3 local chassis and 30 slots, at a typical 0.9 ms/K scan.

A 1747-M13 flash module on this processor needs OS401 Series C or later firmware. Firmware itself comes as the 1747-OS401 upgrade kit, and the upgrade erases the program and puts every port back to defaults, so upload first. It takes up to 2.5 minutes, with the RS232, DH+, FORCE and BATT lights walking. When all four stay lit together, it took.

Modbus RTU Master on channel 0 showed up in Series C FRN 11, released June 2008. Master only.

Backplane load is 1.0 A at 5 V. On the 24 V side it depends on the year: units built before April 2002 draw 200 mA. The label on the side says what yours draws, and that's the number to size the supply with.

The 1747-L551 is the same family with Ethernet where DH+ used to be. If nothing on the machine lives on DH+, the 5/05 is the natural replacement: same processor with Ethernet instead of DH+. If there’s a PanelView, another PLC or message traffic on that DH+ link, all of that has to move to Ethernet too.

Rockwell discontinued the 1747-L541 on December 31, 2021. Spares come from surplus now.

1747-L541 quick answers

Can I program a 1747-L541 over USB?

Not directly, it has no USB port. Put a USB-to-serial adapter and a 1747-CP3 on channel 0 when that port is on DF1, or a 1784-U2DHP on the round DH+ port.

Does the 1747-L541 have Ethernet?

No. Channel 1 is DH+. For Ethernet you either move to a 5/05 or hang a 1761-NET-ENI on channel 0, which bridges DF1 full-duplex to Ethernet.

Does the 1747-L541 support Modbus?

As a master on channel 0, from Series C FRN 11 on, with function codes 01 through 06, 15 and 16. It can't act as a Modbus slave.

Why does the FLT light flash on a new 1747-L541?

Because there's no program in it. Flashing FLT at power-up means the processor hasn't been configured yet. Download a program and run it, and it should go out.

Keeping a 1747-L541 machine running
